RGB ON SCREEN DISPLAY
78
NOTE: 1. Dots correspond to the true resolution in Real Mode of aspect ratio, when you select VGA 640 x 480 signal from the
table above. (One dot corresponds to one pixel).
2. Always reset AUTO ADJUST feature when setting new display setting or when changing to a new computer
(see page 85).
This LCD Television can automatically detect and display the signal format below.
1. RGB input signal.
This LCD Television can accept the following signal formats.
Recommended Signal List
1 VESA 640 x 400 70.09 31.47
2 VGA 640 x 480 59.94 31.47
3 640 x 480 72.81 37.86
4 640 x 480 75.00 37.50
5 800 x 600 56.25 35.16
6 800 x 600 60.32 37.88
7 VESA 800 x 600 72.19 48.08
8 800 x 600 75.00 46.88
9 1024 x 768 60.00 48.36
10 1024 x 768 70.07 56.48
11 1024 x 768 75.03 60.02
12 1280 x 1024 60.02 63.98
13 1280 x 1024 75.03 79.98
14 1080i 1080 59.94 33.72
15 720p 720 59.94 44.96
16 480p 480 59.94 31.47
No.
Signal Mode
Vertical Horizontal
Signal Name Resolution Frequency (Hz) Frequency (kHz)
IMPORTANT: TURN OFF THE AVC BOX, THE DISPLAY MONITOR AND THE EXTERNAL COMPONENT BEFORE
CONNECTING OR DISCONNECTING ANY CABLES.
12345
678910
1112131415
D-SUB 15 Pin
RGB Cable
(Optional)
AUDIO OUT
Audio Cable
(Optional)
RGB ANALOG
OUTPUT
SET-TOP-BOX

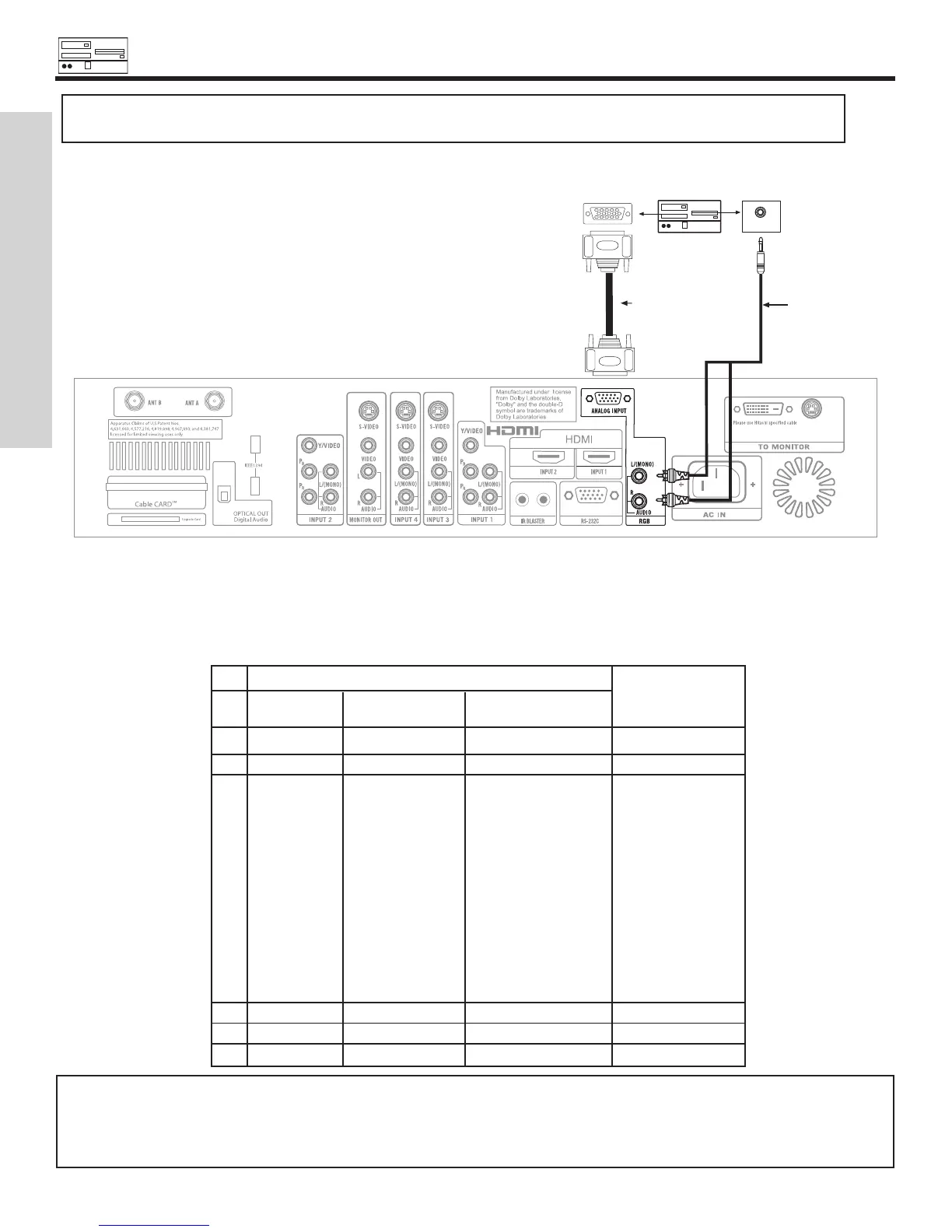

1. AVC rear panel connection to an external component with an analog RGB output.
USING THE RGB INPUT
To Next Page
