6. Stock stop for precision cutting (Stock stop is optional accessory)
The stock stop facilitates continuous precision cutting
in lengths of 9-5/16" to 18-1/8" (236 mm to 460 mm). To
install the stock stop, attach it to the extension wing with
the 6 mm wing bolt as shown in Fig. 18.
PRACTICAL APPLICATIONS
WARNING:* To avoid personal injury, never remove or place a workpiece on the table while the tool
is being operated.
* Never place your limbs inside of the line next to warning sign while the tool is being
operated. This may cause hazardous conditions (see Fig. 19).
1. Switch operation
The button switch is designed to prevent inadvertent
operation of the power tool. To operate the power tool, it is
necessary to first push the button switch as shown in
Fig. 20.
The trigger switch will not operate unless the button switch
has been pushed in.
When the trigger switch is released, the power goes off
and the button switch automatically returns to its initial
position, locking the trigger switch.
WARNING: This will ensure that the power tool cannot be turned on accidentally or by someone
(especially a child) who is not qualified to use the power tool.
To prevent unauthorized operation of this tool, insert a padlock through the hole in
the switch trigger.

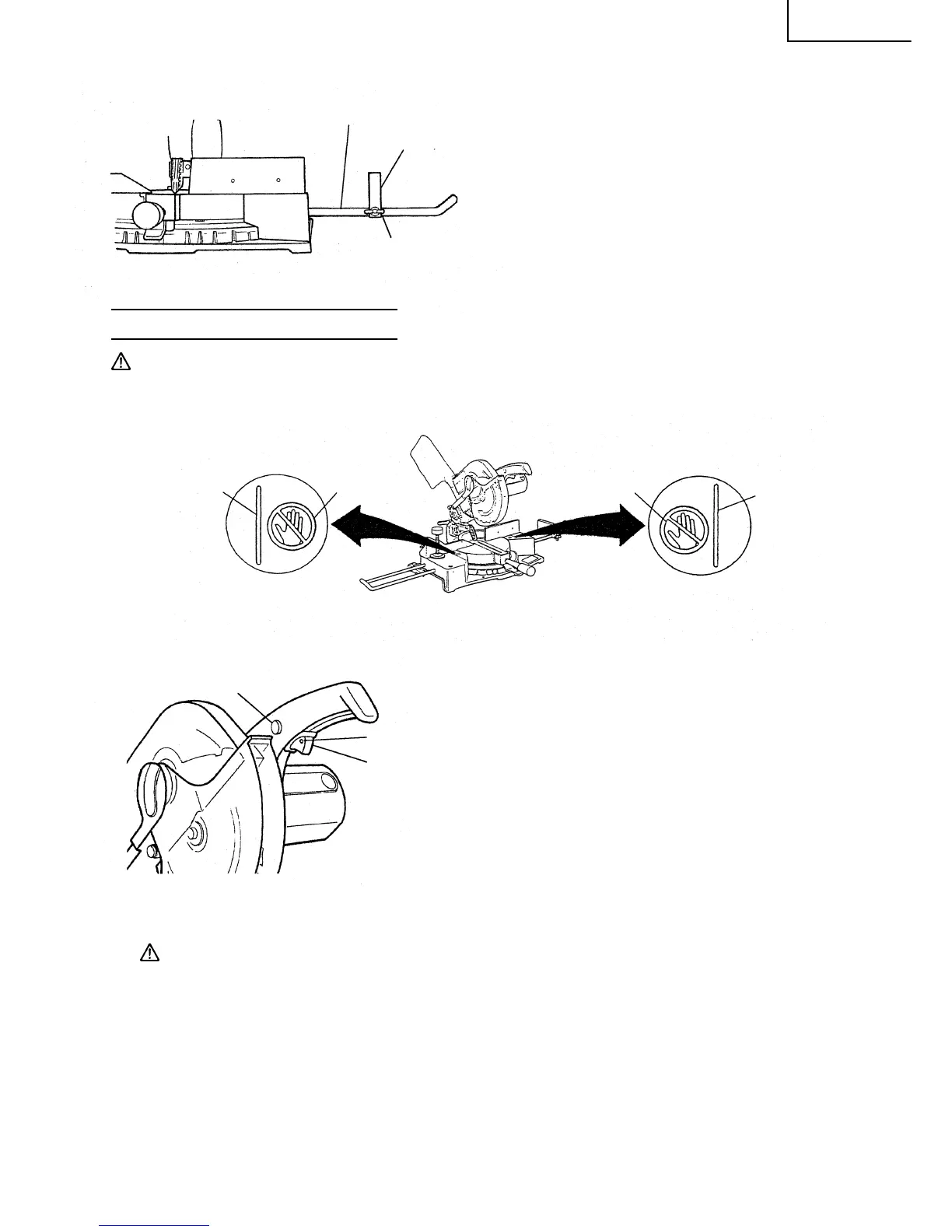

Fig. 19
Warning Sign
Fig. 18
Extension Wing
6 mm Wing Bolt
Stock Stop
Fig. 20
Button
Switch
Hole
Trigger
Switch
