10
English
APPLICATIONS
Wood, plywood, color board, soft fabric board, hard board similar materials and aluminum sash.
PREPARATION BEFORE OPERATION
Make the following preparations before operating the power tool:
1. Installation

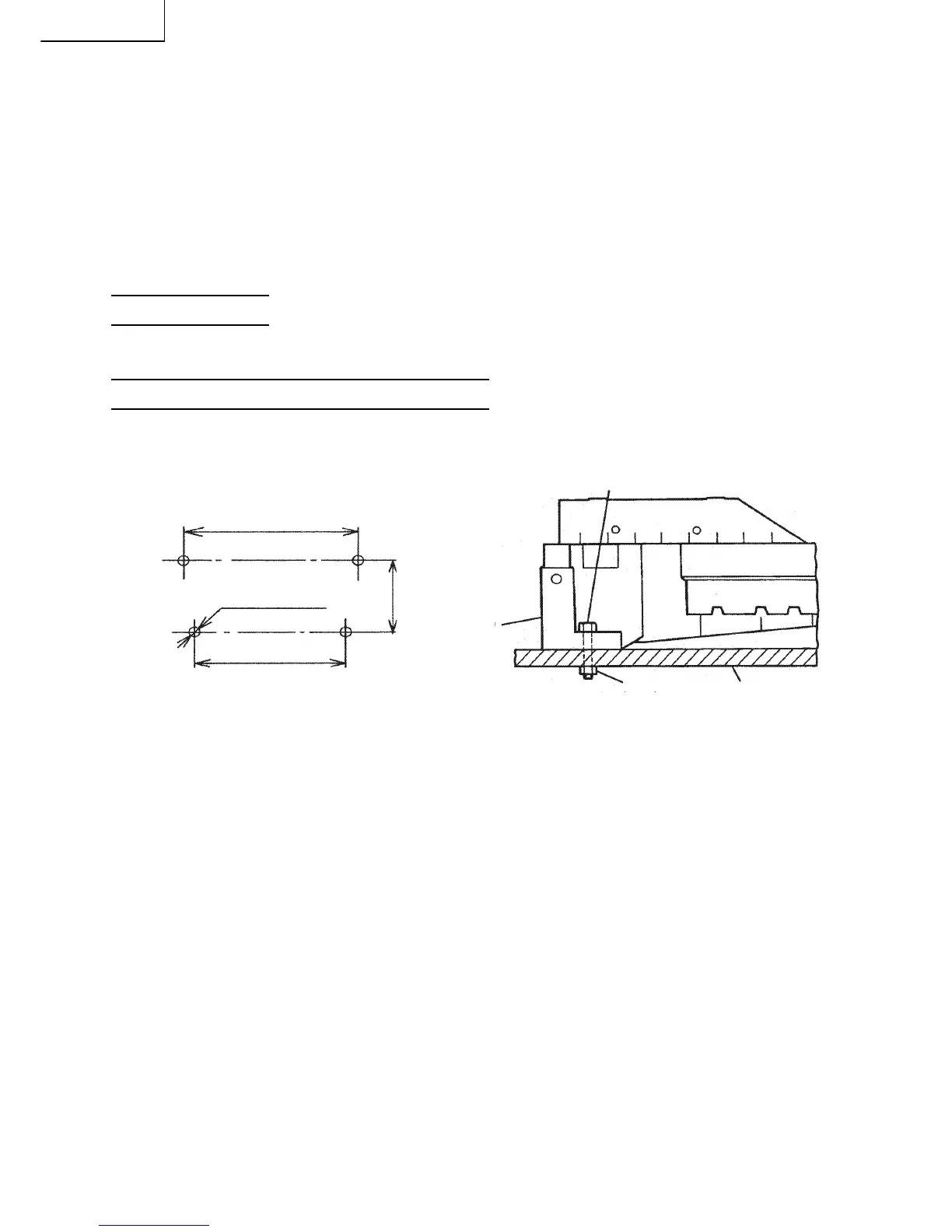

Fig. 4
Attach the power tool to a level, horizontal work bench in accordance with Fig. 4.
Select 5/16" (8 mm) diameter bolts suitable in length for the thickness of the work bench.
Bolt length should be at least 2" (50 mm) plus the thickness of the work bench.
For example, use 5/16" (8 mm) 3" (75 mm) bolts fot a 1" (25 mm) thick work bench.
The extension stay attached to the rear of the base (see Fig. 2) helps stabilize the power tool.
19-1/16" (484 mm)
11-1/2" (292 mm)
3/8" (10 mm), 4 Holes
16-27/32" (428 mm)
5/16" (8 mm) Bolt
Work Bench5/16" (8 mm) Nut
Base
To Next Page
