Hitachi C 10FSB

--- 29 ---
Bevel angle
scale
Base
Fence
Miter angle scale Turn table
Fig. 41

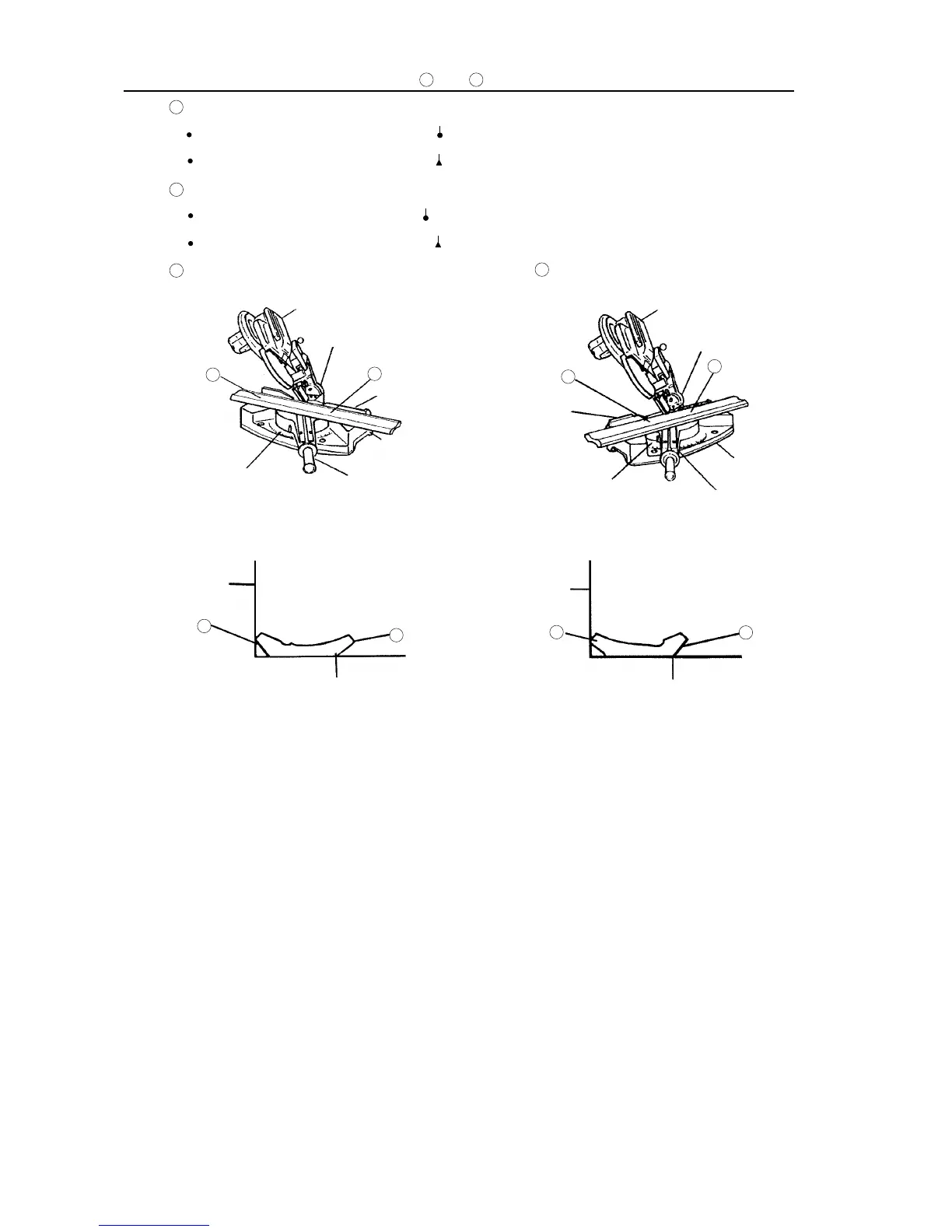

(2) Setting to cut crown moldings at positions and in Fig. 39 (See Fig. 42, tilt the head to the left.):
Turn the turn table to the left and set the miter angle as follows:
For 45˚ type crown moldings: 35.3˚ ( mark)
For 38˚ type crown moldings: 31.6˚ ( mark)
Tilt the head to the left and set the bevel angle as follows:
For 45˚ type crown moldings: 30˚ ( mark)
For 38˚ type crown moldings: 33.9˚ ( mark)
Position the crown molding so that the lower surface ( in Fig. 38) contacts the fence as indicated in
Fig. 44.
2 3
1
2
3
B
Fig. 42
Bevel angle
scale
Base
Fence
Miter angle scale
Turn table
Fig. 43
Fig. 44
Fence
Table on base
Fence
Table on base
B
A
B
A
4
1
2
3
