Hitachi C 10FSB

--- 40 ---
Disassembly procedure
Disassembly
spots
Item
No.
Necessary tools
3
Spring, support,
hinge ass'y, ball
bushing, bushing,
holder (A)
4-mm hex. bar
wrench
1. Remove the Seal Lock Hex. Socket Hd. Bolt M5 x 10 [195]. Note
that the Seal Lock Hex. Socket Hd. Bolt M5 x 10 [195] acts as the
upper limit stopper of the Gear Case [196] (head) and the Gear
Case [196] will move upward when the Seal Lock Hex. Socket
Hd. Bolt M5 x 10 [195] is removed.
2. Remove the Seal Lock Hex. Socket Set Screw M6 x 10 [119].
Gently tap Hinge Shaft (A) [84] with a plastic hammer to remove it
supporting the Gear Case [196] (head). Remove Hinge Shaft (A)
[84] to remove the Sleeve [76] and Spring [77].
3-mm hex. bar
wrench
Plastic hammer

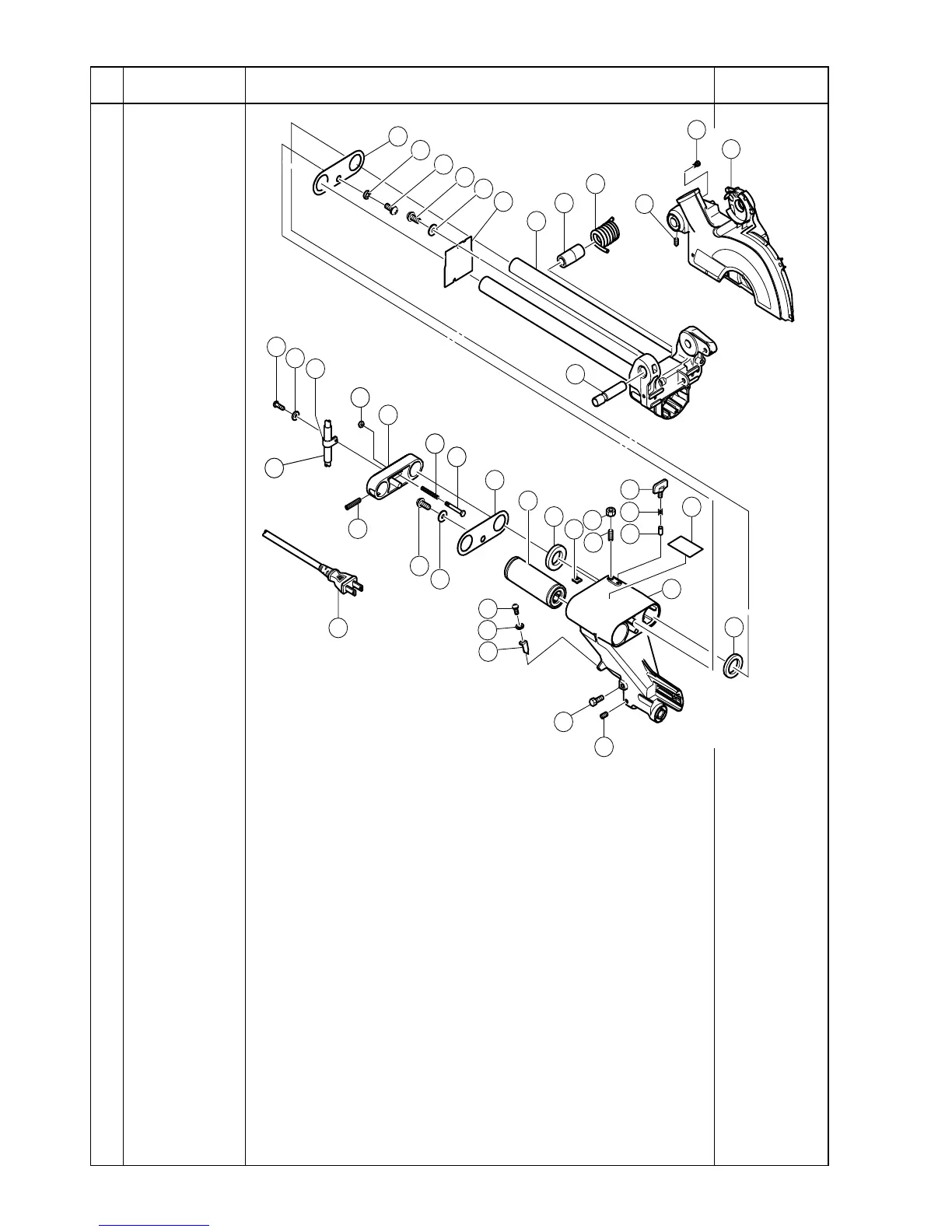

Fig. 61
71
72
73
73
72
74
75
76
77
84
73
72
73
72
72
104
105
71
106
107
108
109
110
111
112
113
114
115
107
116
123
117
118
119
102
195
196
119
128
129
130
131
