Hitachi C 10FSB

--- 70 ---
a Ink line is not right
angle.
b Laser marker accuracy
is not adjusted
properly.
c Product accuracy is
not good.
a Laser marker is
horizontally deviated
from the saw blade.
b Laser marker accuracy
is not adjusted
properly.
0.2/100
(Figs. 93 and 94)
------
------
• Make a correct ink line again.
• Readjust the accuracy of the
laser marker.
(Refer to "11-10. Adjustment of
Laser Marker Accuracy".)
• Readjust the accuracy of the
product and the laser marker.
• If the forward position of the
laser line is different from the
backward position when sliding,
slide pipe (A) is not parallel with
slide pipe (B). Replace Hinge
(A) Ass'y [75].
• Adjust the position of the laser
line. (Refer to "8-4. Position
Adjustment of Laser Line".)
• Same as item 10-(b).

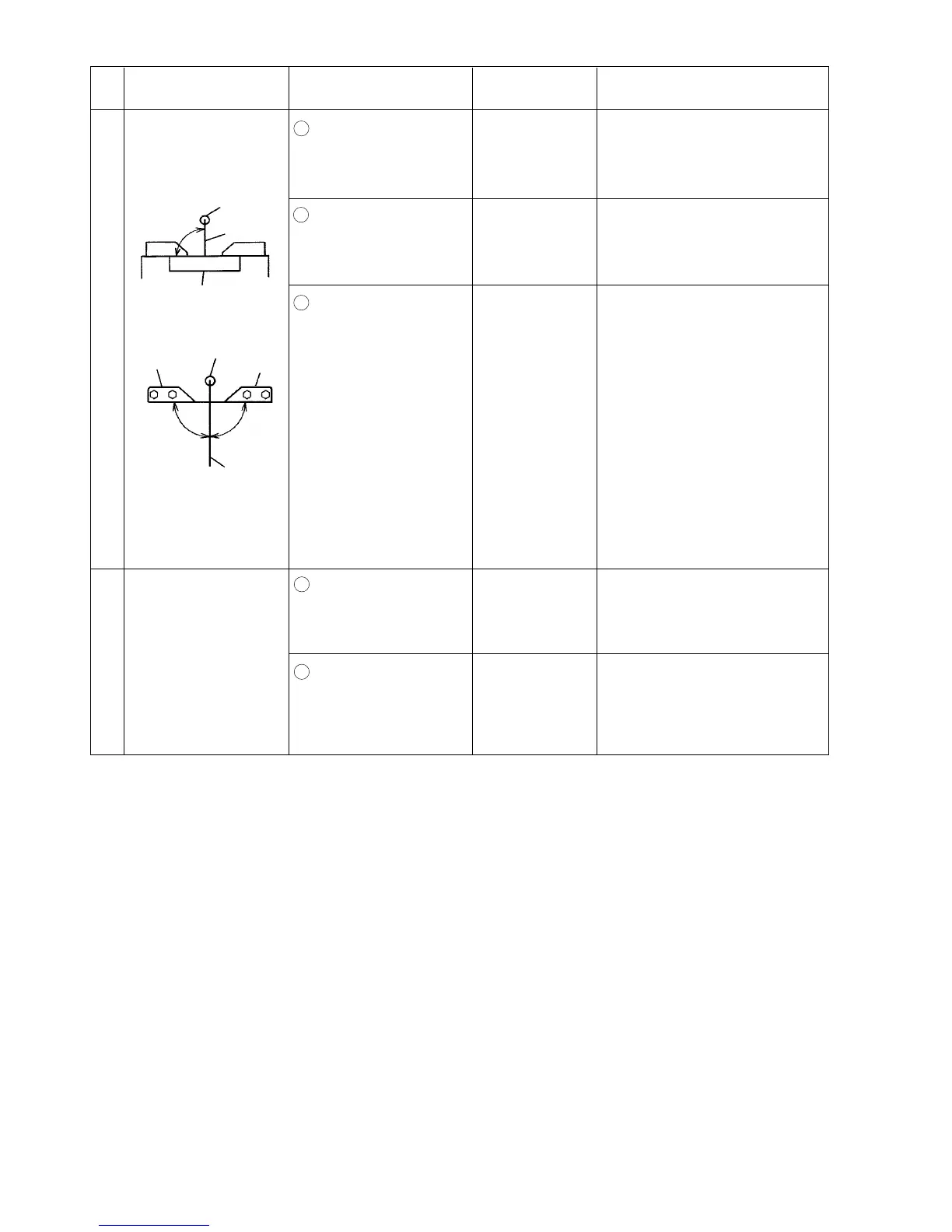

Item
Phenomenon
Cause (s)
Factory
standard
Inspection, repair or adjustment
------
10
Laser line does not
match the ink line.
(Only Model C 10FSH)
11
Laser line does not
match the cutting
position.
Laser emitting
aperture
Laser beam
Squareness
0.2/100
Laser emitting
aperture
Fig. 93
Fig. 94
Turn table
Fence (A)
Fence (B)
Squareness
0.2/100
Squareness
0.2/100
Laser beam
