32
English

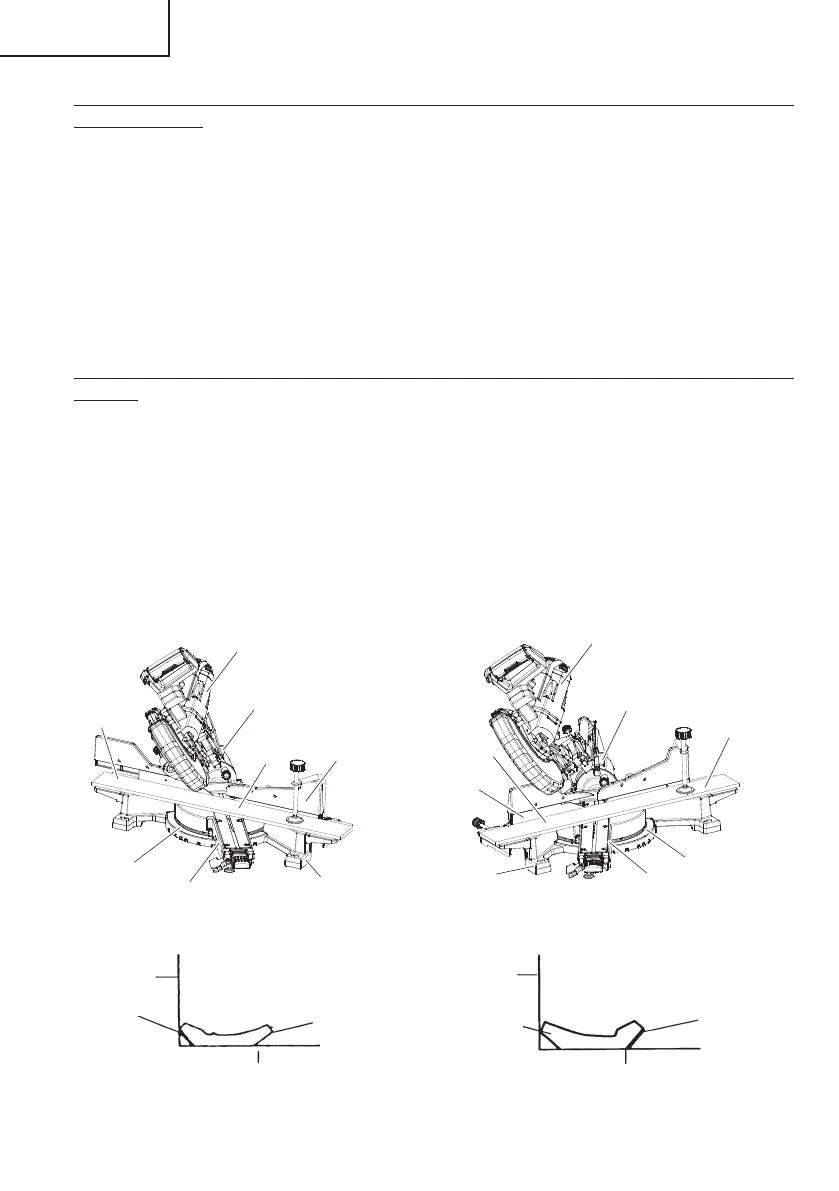

(1) Setting to cut crown moldings at positions 1 and 4 in Fig. 32 (see Fig. 33; tilt the motor
head to the left):
1 Turn the turntable to the right and set the Miter Angle as follows:
* For 45° type crown moldings: 35.3°
* For 38° type crown moldings: 31.6°
2 Tilt the motor head to the left and set the Bevel Angle as follows:
* For 45° type crown moldings: 30°
* For 38° type crown moldings: 33.9°
3 Position the crown molding so that the upper surface (Ⓐ in Fig. 31) contacts the fence
as indicated in Fig. 35.
(2) Setting to cut crown moldings at positions 2 and 3 in Fig. 32 (see Fig. 34; tilt the head to
the left):
1 Turn the turntable to the left and set the Miter Angle as follows:
* For 45° type crown moldings: 35.3°
* For 38° type crown moldings: 31.6°
2 Tilt the head to the left and set the Bevel Angle as follows:
* For 45° type crown moldings: 30°
* For 38° type crown moldings: 33.9°
3 Position the crown molding so that the lower surface (Ⓑ in Fig. 31) contacts the fence
as in Fig. 36.
Fig. 33
Bevel angle scale
Turntable
Fence (A)
Miter angle
scale
Head
Base
4
1
Turntable
Bevel angle scale
Base
Miter angle scale
Fence (B)
Fig. 34
2
3
Head
Fig. 35 Fig. 36
Fence
Ⓑ
Fence
Ⓐ
Ⓑ
Ⓐ
Table on baseTable on base
