20
English
NOTE: When transporting the saw, always secure the sub fence (B) in the
collapsed position and lock it.
4. Securing the workpiece
WARNING: Always clamp or vise to secure the workpiece to the fence;
otherwise the workpiece might be thrust from the table and cause
bodily harm.
5. Slide carriage system
WARNING: To reduce the risk of injury, return slide carriage to the full rear
position after each crosscut operation.
For chop cutting operations on small workpieces, slide the cutting
head assembly completely toward the rear of the unit and tighten
the slide securing knob.
To cut wide boards up to 305 mm, the slide securing knob must
be loosened to allow the cutting head slide freely.
6. Quick-cam locking lever operation
If miter angles required are NOT one of the
nine positive stops, the miter table can be
locked at any angle between these positive
stops by using the postive stop lock button
and miter lock handle.
Unlock the miter table by lifting up the miter
lock handle, grasp the miter lock handle and
pressing down on the postive stop lock button
to move the table to the desired angle, then
release the postive stop lock button. Press
down on the miter lock handle to lock the table
in position.

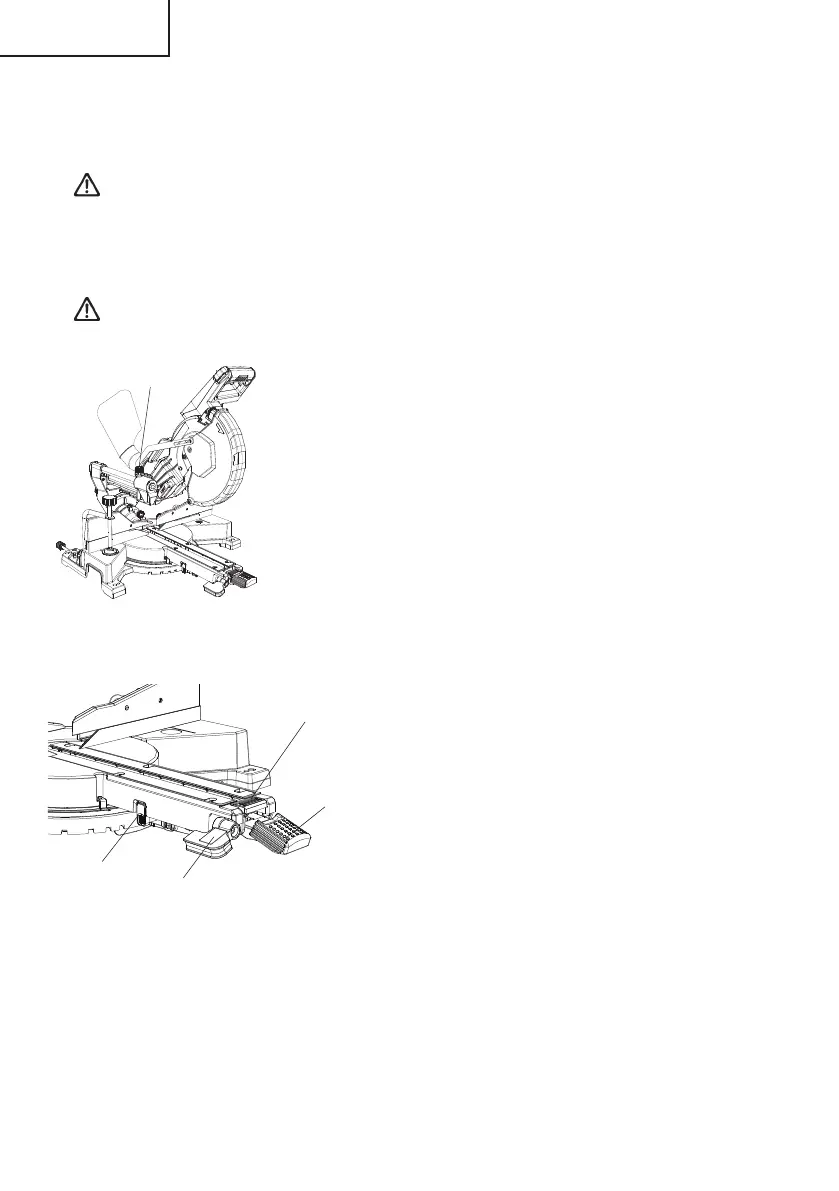

Slide securing knob
Fig. 13
Postive stop
lock button
Miter detent
override button
Bevel lock handle
Miter lock handle
Fig. 14
