--- 41 ---

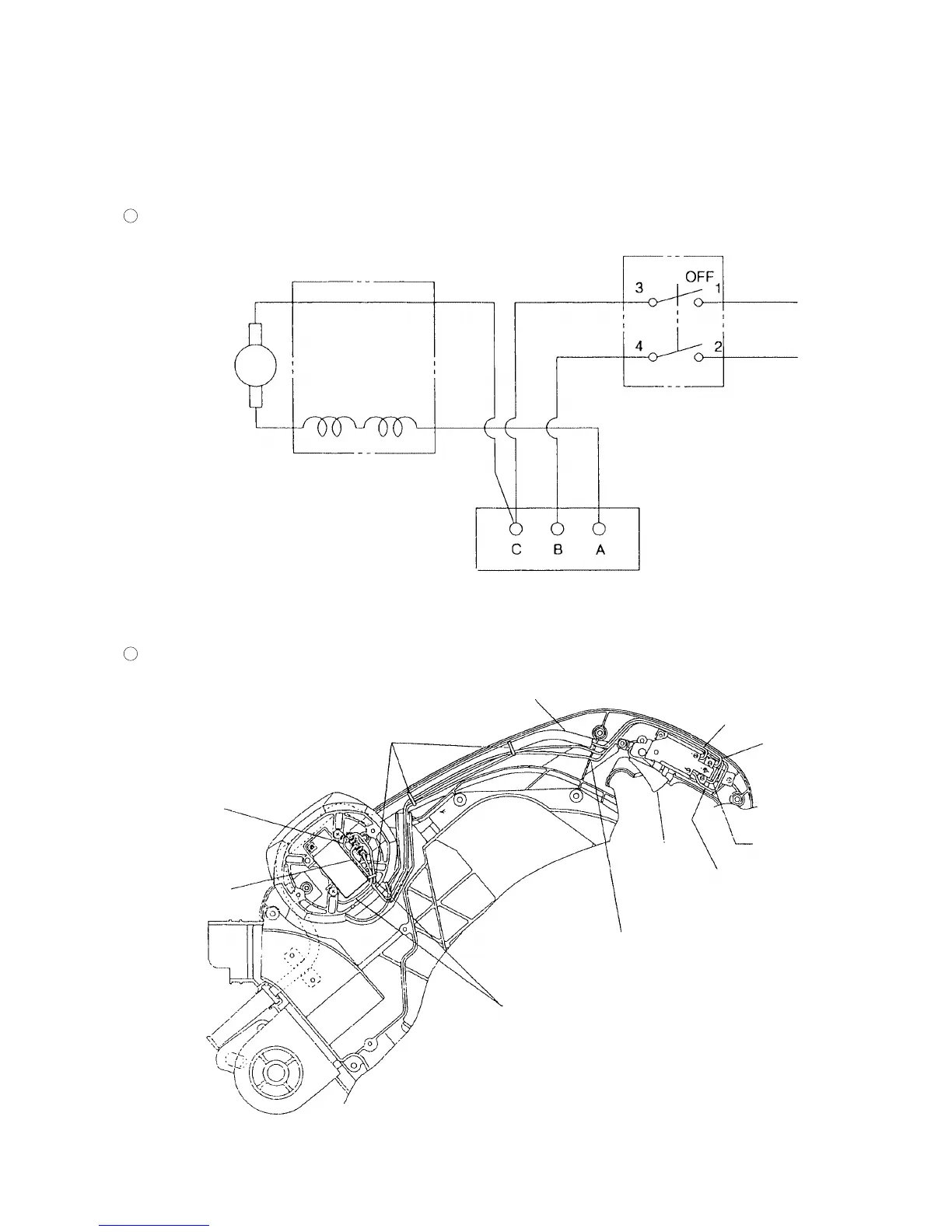

11-3. Wiring Diagram
The Model C 12FSA is equipped with an overload protection circuit.
Carefully ensure that wiring is accomplished as illustrated below. As incorrect wiring will result in lack of rotation,
reverse rotation or other malfunctions, close attention is absolutely necessary.
Wiring diagram
SW
Blue
Armature
ass'y
Black
Brown
Fig. 70
Actual wiring diagram
Internal wire
(white)
Internal wire
(blue)
Switch
Insert the internal wires and the cords
in the groove of side cover (R).
Cord (brown)
Cord
Cord (blue)
Cable tie
Internal wire
(blue)
1
2
Black
Stator ass'y
Controller (A) ass'y
Blue
White
Internal wire
(white)
Internal wire of stator ass'y (black)
To Next Page
