Hitachi C 12FSA Technical Data And Service Manual

--- 2 ---
Fig. 2-2
Saw blade
120 mm
(4-23/32")
Auxiliary board
Clearance
2 to 3 mm
(0.079" to 0.118")
Workpieces as wide as shown in Table 1 can be
cut with the motor head sliding.
The lower limit position of the saw blade is set at
the factory so that the maximum cutting
dimensions of 107 H x 305 W (mm) (4-7/32" H x
12" W) can be achieved.
When cutting workpieces with heights up to 120
mm (4-23/32") as indicated in [ ] in Table 1,
adjust the saw so that there is a clearance of 2 to
3 mm (0.079" to 0.118") between the bottom
surface of the head and the top surface of the
workpiece at the lower limit of the saw blade as
shown in Fig. 2-2. (See the Handling
Instructions.)
Please note that, when cutting in this position, it
is necessary to use an auxiliary board [20 mm
(25/32") thick] so that the workpiece on the fence
side can be cut full width.
The sliding section of the C 12FSA employs ball
bushings as in the C 10FS, which ensures not
only a high machining accuracy but also superior
durability.
Fig. 2-1
A 20 mm (25/32")-thick
auxiliary board required to
ensure full-width cutting
Turn table
top surface
Head bottom
surface
Head bottom
surface
Workpiece
107 mm
(4-7/32")
Turn table
top surface
Fence
Workpiece

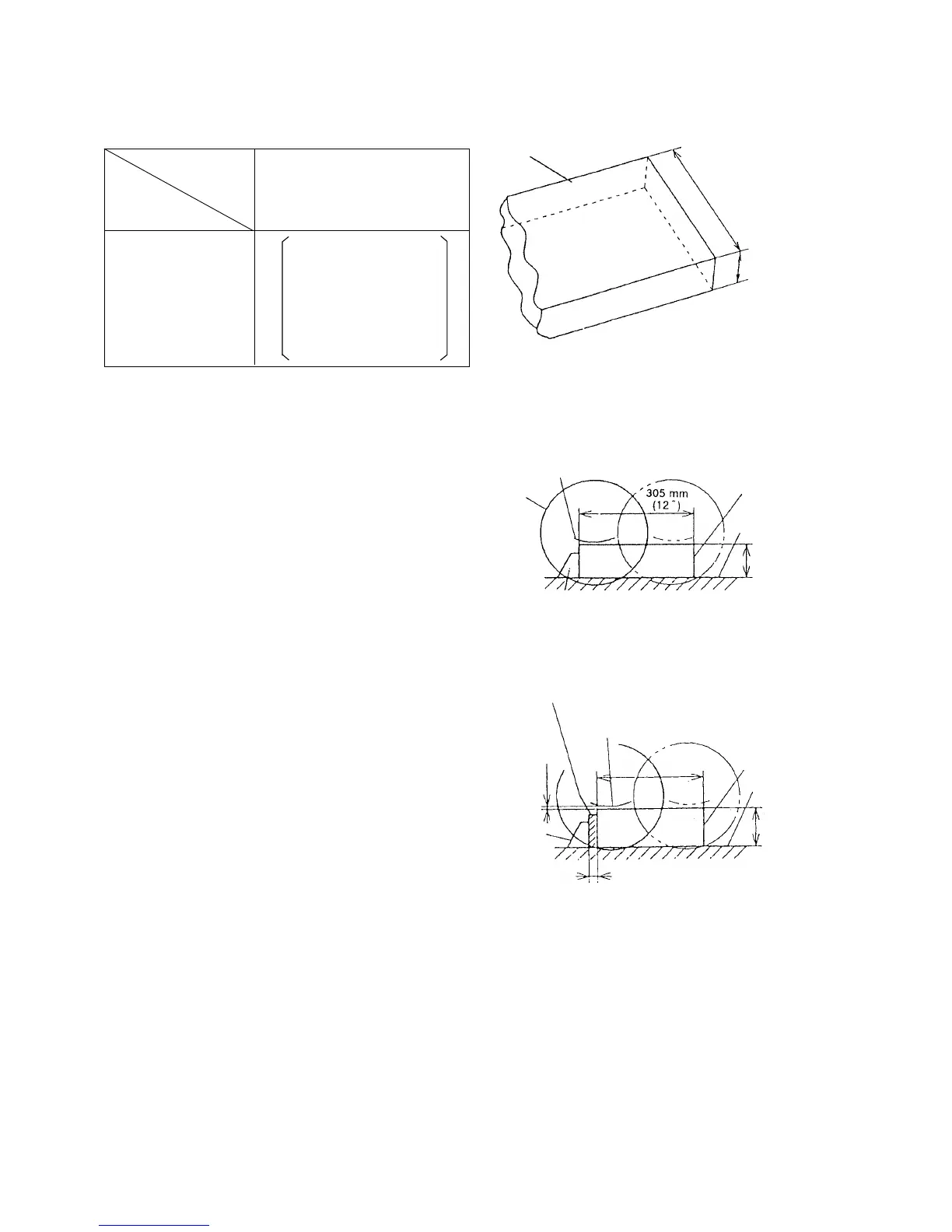

4-1. Selling Point Descriptions
(1) Slide cutting
Fig. 1
Workpiece
Maker
Model
Max. cutting
dimension
HITACHI
C 12FSA
Height x Width
(H x W)
107 x 305
(4-7/32" x 12")
120 x 260
(4-23/32" x 10-1/4")
with aux. board
width 20 (25/32")
Table 1
(Unit: mm)
Height (H)
Width (W)
Fence
260 mm
(10-1/4")
