34
3 Position the crown molding so that the lower surface (B in Fig. 37) contacts the fence
as in Fig. 42.
(3) Setting to cut crown moldings at positions 1 and 4 in Fig. 38 (see Fig. 43; tilt the head to
the right):
1 Turn the turntable to the right and set the Miter Angle as follows:
* For 45° type crown moldings: 35.3° ( mark)
* For 38° type crown moldings: 31.6° (
mark)
2 Tilt the head to the right and set the Bevel Angle as follows:
* For 45° type crown moldings: 30° (
mark)
* For 38° type crown moldings: 33.9° ( mark)
3 Position the crown molding so that the upper surface (B in Fig. 37) contacts the
fence as indicated Fig. 45.
(4) Setting to cut crown moldings at positions 2 and 3 in Fig. 38 (see Fig. 44; tilt the head to
the right):
1 Turn the turntable to the left and set the Miter Angle as follows:
* For 45° type crown moldings: 35.3° ( mark)
* For 38° type crown moldings: 31.6° (
mark)
2 Tilt the head to the right and set the Bevel Angle as follows:
* For 45° type crown moldings: 30° (
mark)
* For 38° type crown moldings: 33.9° ( mark)

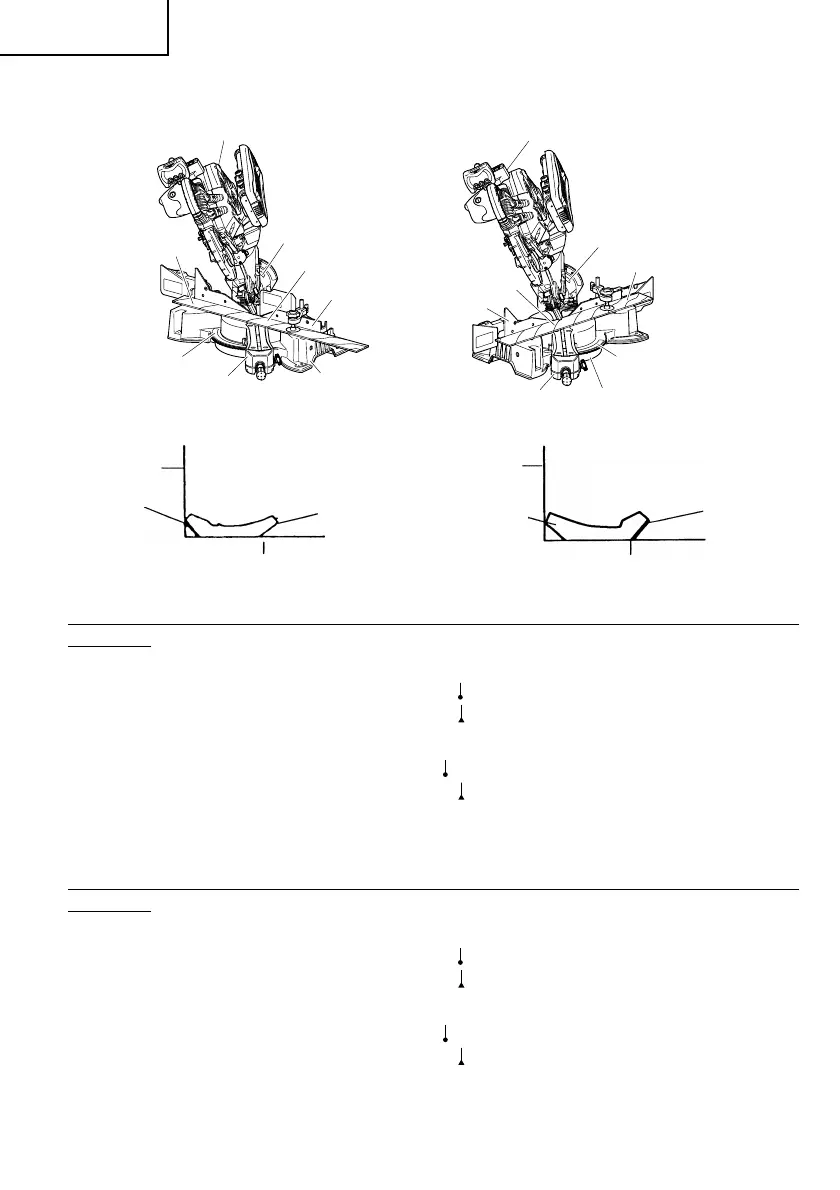

Fig. 41 Fig. 42
Fence
B
Fence
A
B
A
Table on baseTable on base
Bevel angle scale
Fence (A)
Miter angle scale
Turntable
Head
Base
Bevel angle scale
Base
Miter angle scale
Turntable
Head
Fence (B)
Fig. 39 Fig. 40
1
4
2
3
