3 Position the crown molding so that the lower surface (A in Fig. 37) contacts the fence
as in Fig. 46.
Cutting method of crown molding without tilting the saw blade
(1) Crown molding Stopper (L) and (R)
(optional accessories) allow easier cuts of
crown molding without tilting the saw
blade. Install them in the base both-sides
side to be shown in Fig. 47-a. After
inserting Tighten the 6mm knob bolts to
secure the crown molding Stoppers.
[Optional accessories used]
• Crown molding Vise Ass’y (Include
Crown molding Stopper (L))
• Crown molding Stopper (L)
• Crown molding Stopper (R)
(2) The crown molding vise (B) (Optional accessory) can be mounted on either the left
fence (Fence (B)) or the right fence (Fence (A)). It can unite with the slope of the
crown molding and vice can be pressed down.
Then turn the upper knob, as necessary, to securely attach the crown molding in
position. To raise or lower the vise assembly, first loosen the 6mm knob bolt.

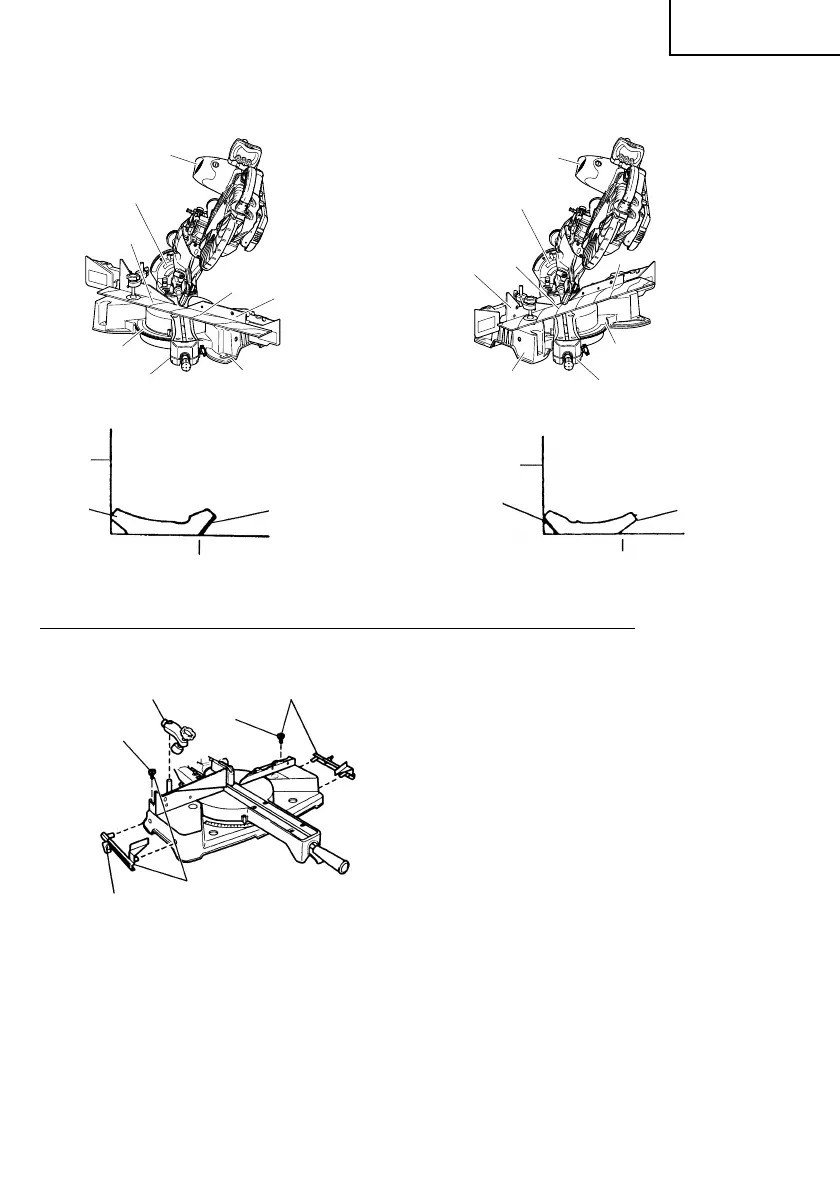

Fig. 45 Fig. 46
Fence
A
B
Fence
A
B
Table on base
Table on base
Fig. 43 Fig. 44
Fence (A)
Base
Miter angle scale
Bevel angle scale
Bevel angle scale
Fence (B)
Miter angle scale
Base
Turntable
Head Head
Turntable
4
1
3
2
Fig. 47-a
6mm knob bolt
6mm wing bolt
Crown molding stopper (R)
(optional accessories)
Crown molding vise ass’y
(optional accessories)
6mm knob
bolt
Crown molding stopper (L)
(Optional accessories)
