English
36
After adjusting the height, firmly tighten the
6mm wing bolt; then turn the upper knob,
as necessary, to securely attach the crown

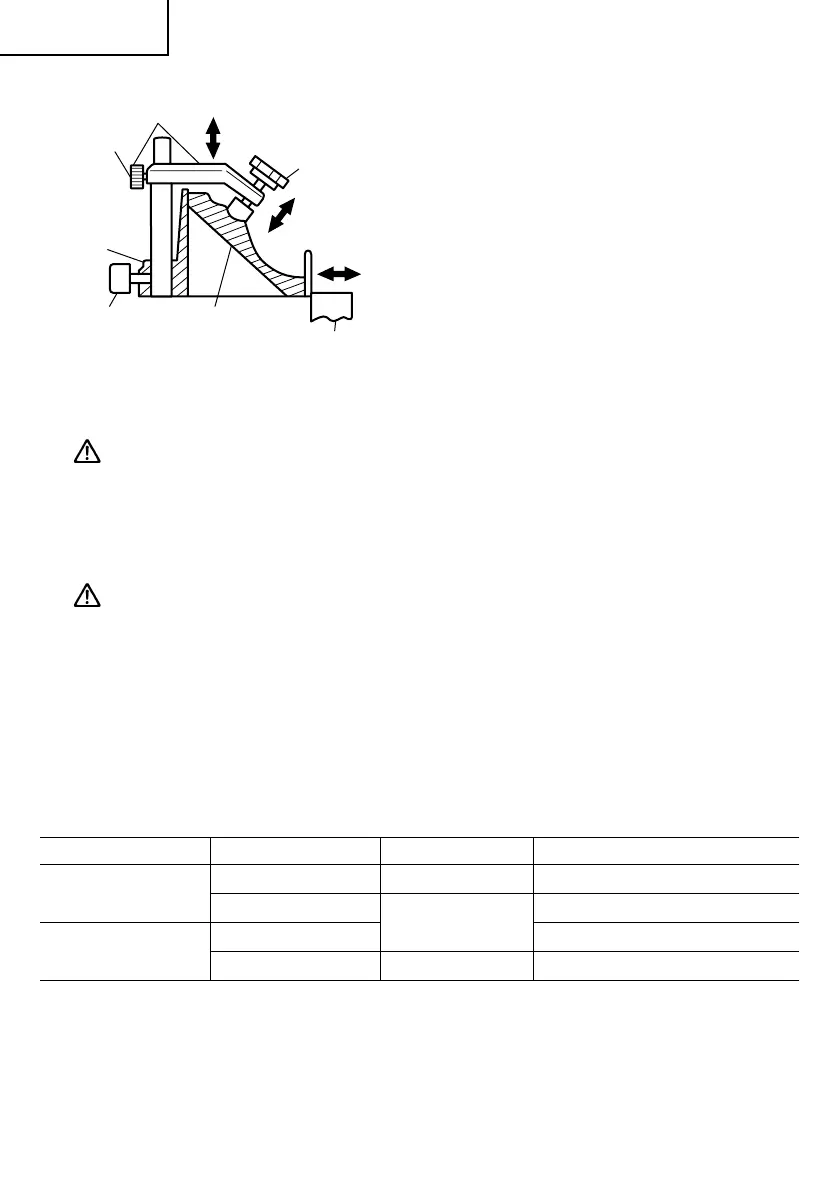

molding in position. (See Fig. 47-b)
WARNING: Always firmly clamp or vise to secure the crown molding to the fence;
otherwise the crown molding might be thrust from the table and
cause bodily harm.
Do not bevel cutting. The main body or saw blade may contact the
sub fence, resulting in an injury.
CAUTION: Always confirm that the motor head (see Fig. 1) does not contact the
crown molding vise ass’y when it is lowered for cutting. If there is
any danger that it may do so, loosen the 6mm knob bolt and move
the crown molding vise ass’y to a position where it will not contact
the saw blade.
Position crown molding with its WALL CONTACT EDGE against the guide fence and its
CEILING CONTACT EDGE against the crown molding Stoppers as shown in Fig. 47-b.
Adjust the crown molding Stoppers according to the size of the crown molding.
Tighten the 6mm wing bolt to secure the crown molding Stoppers.
Refer to the lower table for the miter angle.
Position in Fig. 38 Miter angle Finished piece
For inside corner 1 Right 45° Save the right side of blade
2
Left 45°
Save the left side of blade
For outside corner 3 Save the right side of blade
4 Right 45° Save the left side of blade
Crown molding stopper (L)
Crown molding stopper (R)
(Optional accessories)
Crown molding
6mm wing bolt
Fence
Knob
6mm knob bolt
Crown molding vise ass’y
(Optional accessories)
Fig. 47-b
