9. Stopper for precision cutting ... (Stopper and holder are optional accessory)
The stopper facilitates continuous precision
cutting in lengths of 11-7/32" to 17-3/4" (285
mm to 450 mm).
To install the stopper, attach it to the holder
with the 6 mm knob bolt as shown in Fig. 14.
10. Position adjustment of laser line
WARNING: * Make sure before plugging the power plug into the receptacle
that the main body and the laser marker are turned off .
* Exercise utmost caution in handling a switch trigger for the
position adjustment of the laser line, as the power plug is plugged
into the receptacle during operation.
If the switch trigger is pulled inadvertently, the saw blade can
rotate and result in unexpected accidents.
* Do not remove the laser marker to be used for other purposes.
CAUTION:
Fig. 16
Fig. 15
C329113
* Laser radiation- Do not stare into beam.
* Laser radiation on work table. Do not stare into beam.
If your eye is exposed directly to the laser beam, it can be hurt.
* Do not dismantle it.
Holder
(Optional accessory)

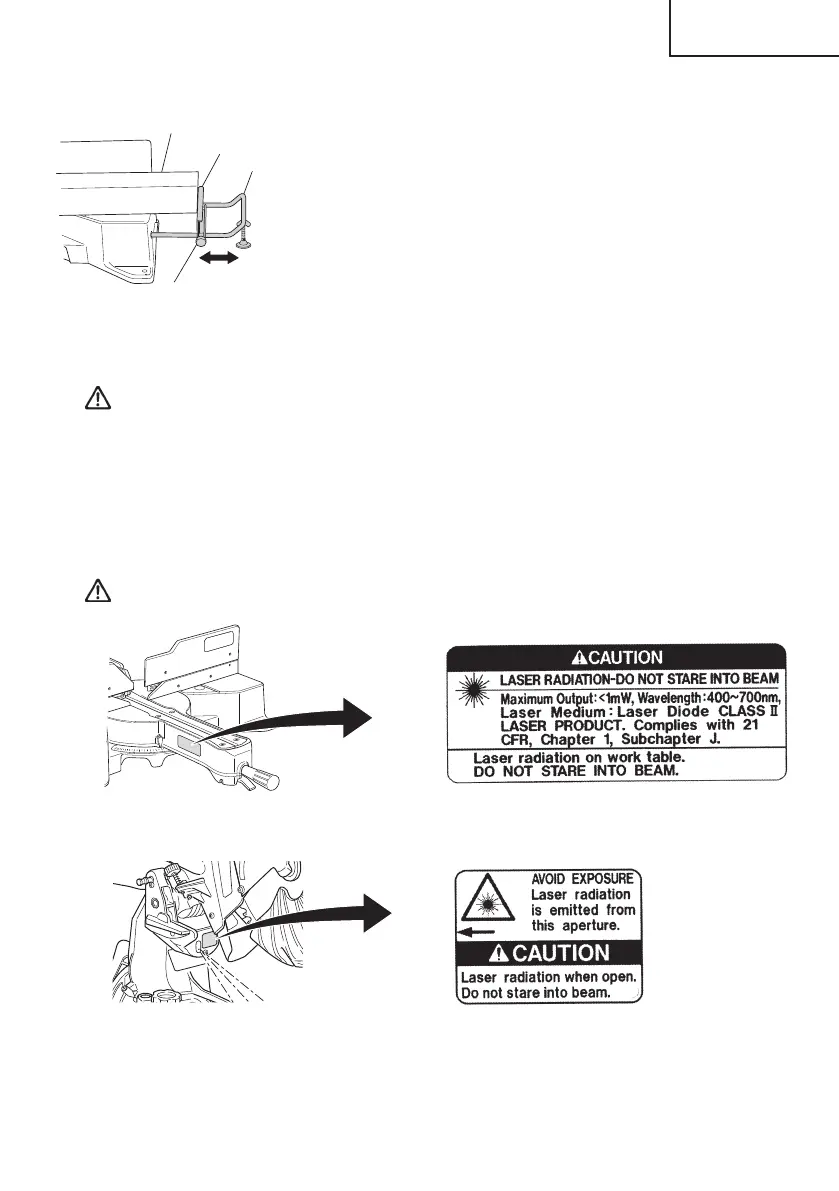

Fig. 14
Workpiece
6 mm knob bolt
(Optional accessory)
Move
Stopper (Optional accessory)
