Hitachi CB 13F User Manual

–
21
–
English
13. Reinstall the blade (See INSTALLLING BLADES
Section on page ).
14. Adjust the blade tension, tracking, and the upper
and
lower blade guides and bearings before operating
the band saw.
To avoid injury, the blade tension, tracking, and upper
and lower guides and bearings must be properly
adjusted before operating the band saw. (See
ADJUSTNEBT INSTRUCTIOONS section)

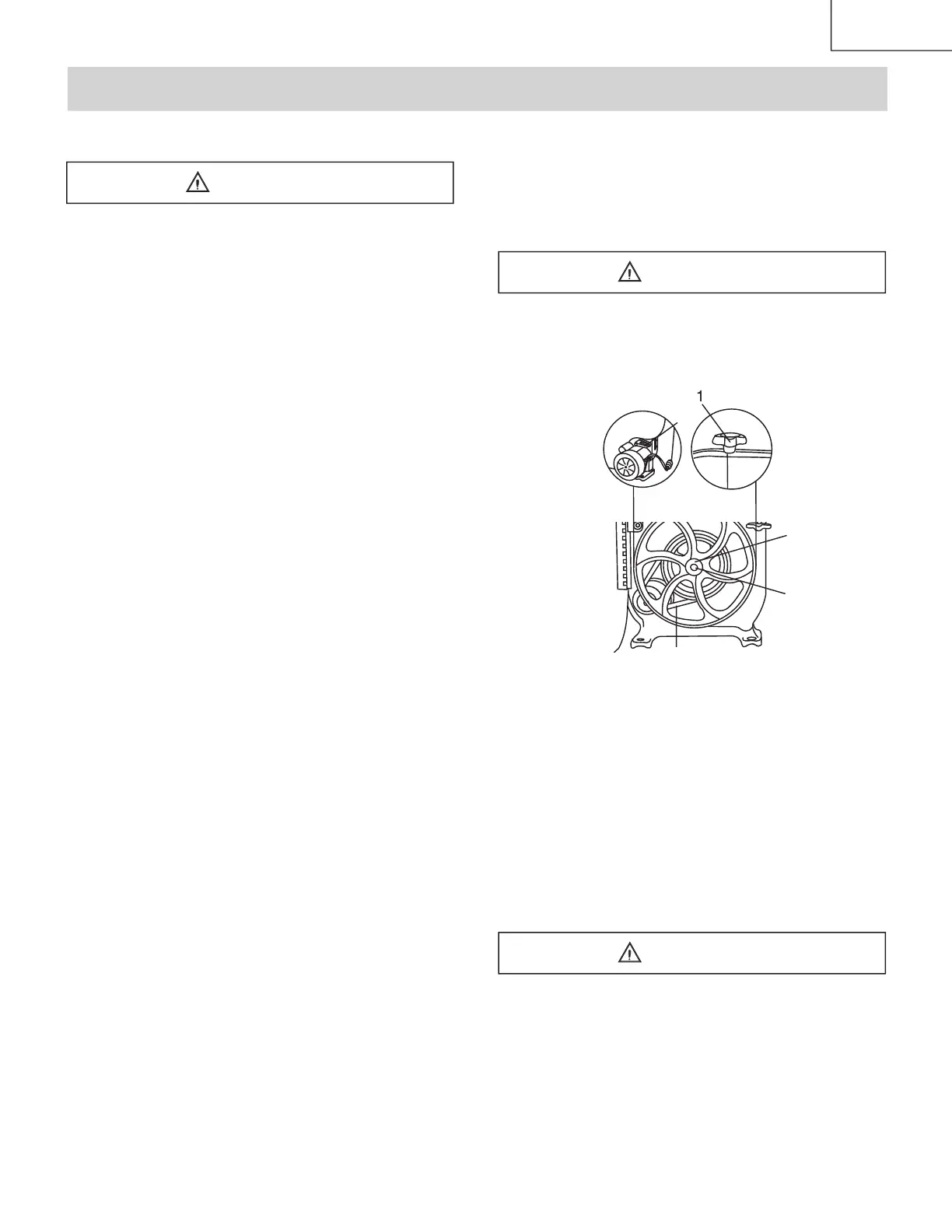

Fig. Y
BLADE WHEEL TIRES
Pitch and sawdust that build up on the tires should be
removed with a stiff brush or scrape off with a piece of
Wood.
NOTE:
To avoid damaging the tires do not use a sharp
knife or any kind of solvent.
When the tires become worn they should be replaced.
When replacing the tires, stretch them around the
wheels
but do not glue then on.
MOTOR
Frequently blow or vacuum out any sawdust from the
motor. Follow lubrication instruction on the motor label.
T
o avoid electrocution or fi re, immediately replace a
worn, cut or damaged power cord.
LUBRICATION
All of the bearings are packed with grease at the factory.
They require no further lubrication.
CAUTION:
Never put lubricants on the blade while it is
spinning.
MAIN
TENANCE
GENERAL MAINTENANCE
• For your own safety, turn switch OFF and remove
the plug from power source receptacle before
maintaining, cleaning, adjusting, or lubricating your
band saw.
• To avoid fi re or toxic reaction, never use gasoline,
naphtha, acetone, lacquer thinner or similar highly
volatile solvents to clean the band saw.
• To avoid eye injury from blowing debris, wear safety
goggles when blowing out sawdust.
BAND SAW
Sawdust will accumulate under the table and base. This
could cause diffi culty in the movement of the table when
setting up a band saw cut, and also cause a fi re hazard.
Frequently blow out or vacuum up the sawdust.
Keep your band saw clean. Remove the sawdust from
the inside. Vacuum or blow out frequently.
Do not allow fi lth to build up on the table, the guides, or
the support bearings. Clean them with gum and pitch
remover.
NOTE:
Do not immerse the support bearing in the gum
and pitch remover.
Put a thin coat of paste wax on the table so that the
wood slides easily while cutting.
TO INSTALL A NEW BELT (FIG. Y)
1. Open the lower wheel door.
2. Loosen the blade tension by turning the blade
tension lock knob (1).
3. Remove the blade from the lower blade wheel.
4. Loosen and remove the hex head blot (2) and fl ange
(3) on the lower blade wheel.
5. Remove the lower blade wheel.
6. Turn the belt tension handle (4) on the rear of the
saw housing to loosen the v-belt tension.
7. Remove the v-belt (5).
8. Check the alignment of the two pulleys.
9. If the edges of the two pulleys are not aligned, see:
ALIGN THE PULLEYS” in ADJUSTMENT section.
10. Place the new v-belt on the saw pulley and the
motor pulley. See OPERATION section “CHANGING
SPEED SETTINGS” on page for proper belt
placement.
11. When positioned properly, tighten the v-belt tension
by turning the tension lock handle.
NOTE:
The pulley belt is properly tensioned when there
is 1/2” (12.7mm)defl ection if pressed in the center
between the pulleys.
12. Replace the blade wheel. Push the wheel on fi rmly
until it is touching the saw pulley. Replace and
tighten the fl ange and nut.
WARNING
WARNING
5
2
3
4
1
WARNING
