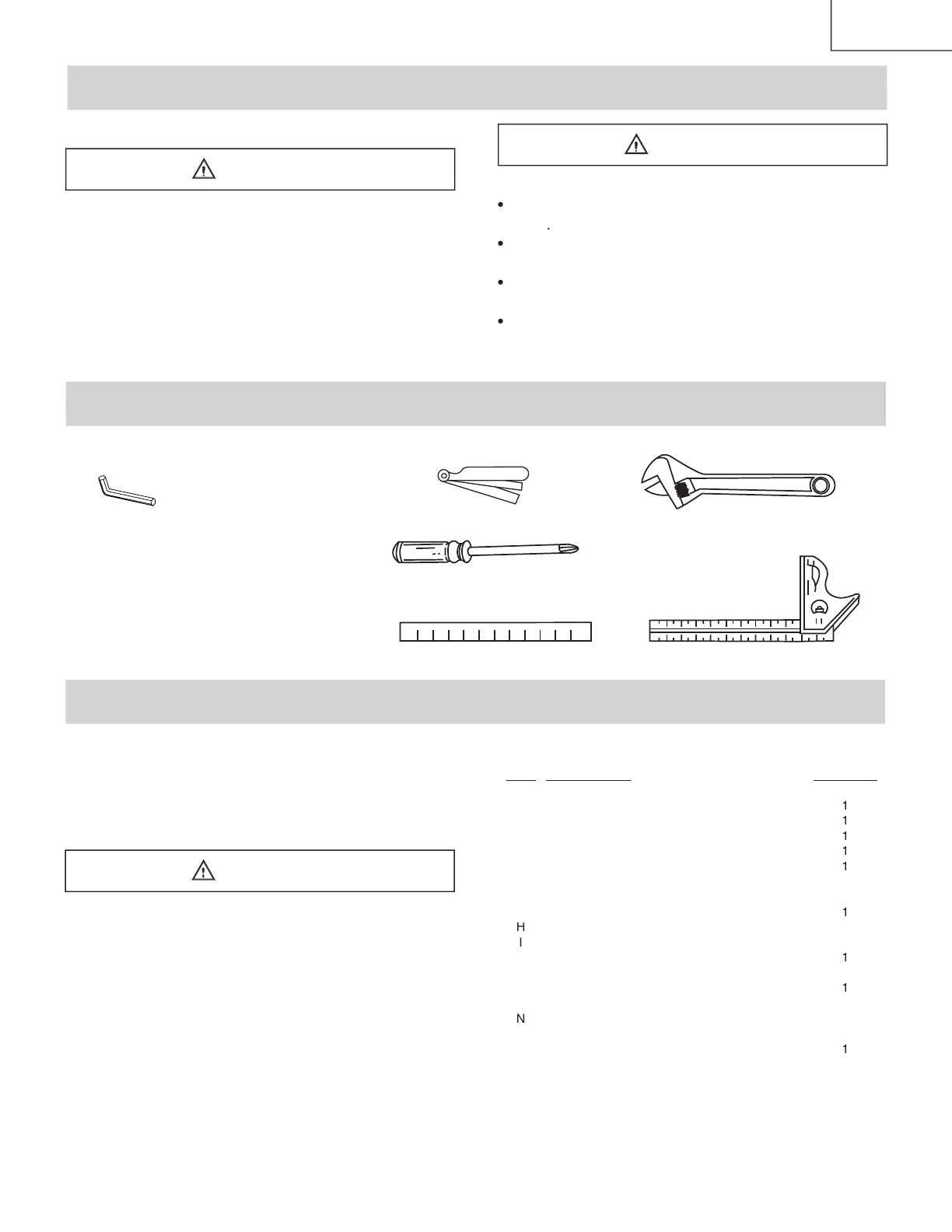

7
English
A
CCESSORIES AND ATTACHMENTS
R
ECOMMENDED ACCESSORIES
Visit your Hardware Department or see the Power
and Hand Tools Catalog to purchase recommended
accessories for this power tool.
WARNING
To avoid the risk of personal injury:
Use only accessories re
commended for this ban
d
saw
.
Follow instructions that accompany accessories. Use
o
f improper accessories may cause hazards.
Use only accessories designed for this band saw to
avoid injury from thrown broken parts or workpieces.
Do not use any accessory unless you have
complete
ly
read the instruction or operator’s man
ual
for that acc
essory.
WARNING
T
OOLS NEEDED FOR ASSEMBLY
Not Supplied
Feeler gauge - size 0.02
#2 Phillips Screwdriver
Straight Edge
Adjustable Wrench
Combination Square
U
N
PACKING AND CHECKING CONTENTS
Carefully unpack the band saw and all its parts, and
compare against the illustration following. Place the saw
on a secure surface and examine it carefully.
To avoid injury from unexpected starting, do not plug
the power cord into a power source receptacle
during unpacking and assembly.
This cord must remain unplugged whenever you are
assembling or adjusting the saw.
Although compact, this saw is heavy. To avoid back
injury, get help whenever you have to lift the saw.
If any part is missing or damaged, do not plug
the band saw in until the missing or damaged part is
replaced, and assembly is complete.
C
ARTON
CONTENTS
ITEM
DESCRIPTION
QUANTITY
BAND SAW :
A
Band saw with motor
1
B
Table with extension wing
1
C
Trunnion support bracket
1
D
Miter gauge
1
E
Sawdust port
1
F
Power cord hooks
2
Foot pads
4
G
Hex. Bolt
1
H
Hex. Bolt
4
I
Knobs
2
J
Hex. Key
1
K
Screws
2
L
Long hex. Bolt
1
M
Hex. Nuts
4
N
Large washers
8
LEG SATND
O
Leg stand top plate
1
P
Short lower brackets
2
Q
Long lower brackets
2
R
Legs
4
S
Bag:
Carriage bolts
32
Hex. Nuts
32
Washers
32
TABLE OF LOOSE PARTS
WARNING
Supplied
Hex Wrench
