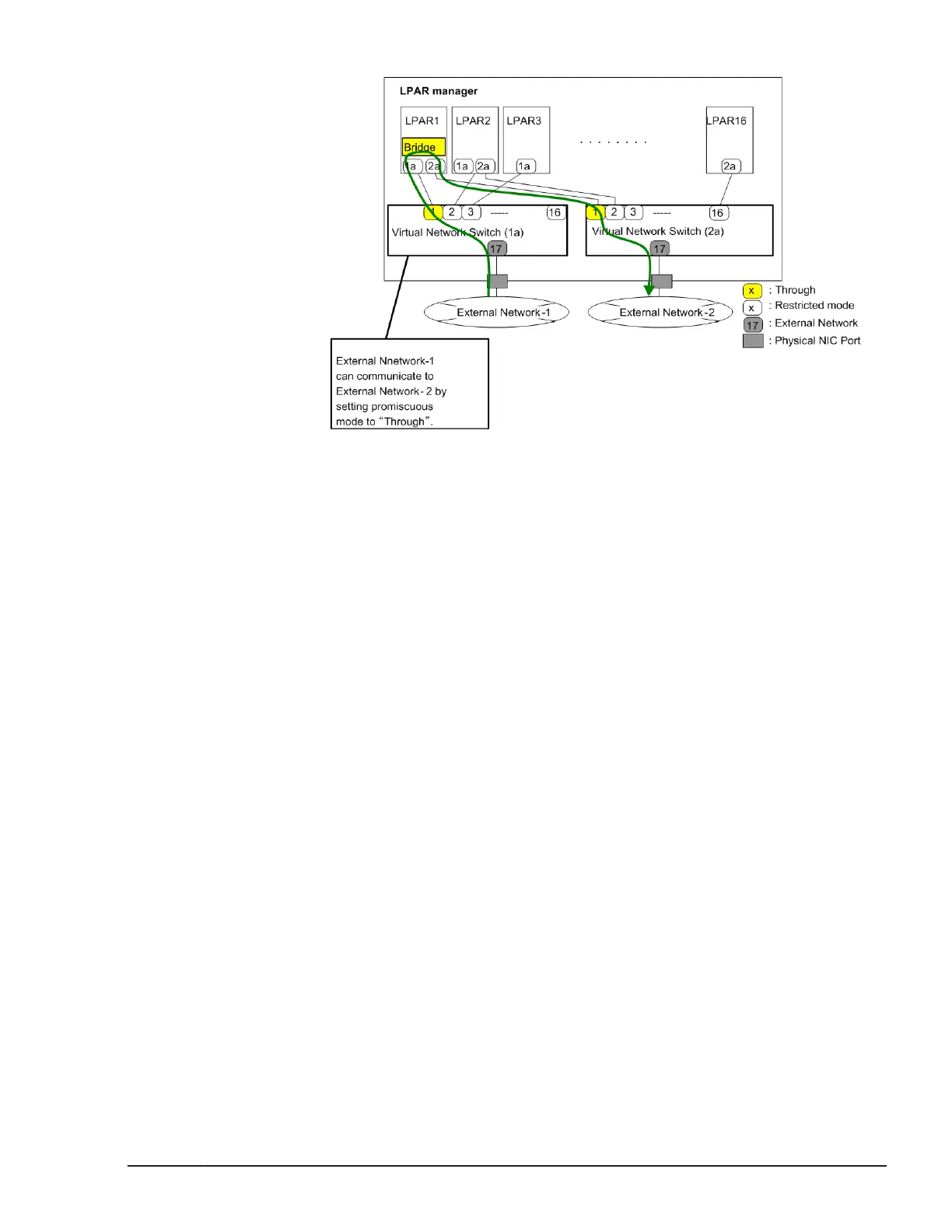

Figure 1-34 Promiscuous Mode with Bridge Function of OS
Port 1 of both Virtual Network Switch forwards all packets by setting
promiscuous mode to "Through". Therefore External Network-1 and
External Network-2 can communicate each other.
Packet Capturing
• Packet capture on the same network segment
When the promiscuous mode is Restricted, a unicast packet between
LPARy and the external PC-1 cannot be captured. When the promiscuous
mode is Through, a unicast packet between LPARy and the external PC-1
can be captured.
LPAR manager Functions
1-57
Hitachi Compute Blade 500 Series Logical partitioning manager User's Guide
