English
8

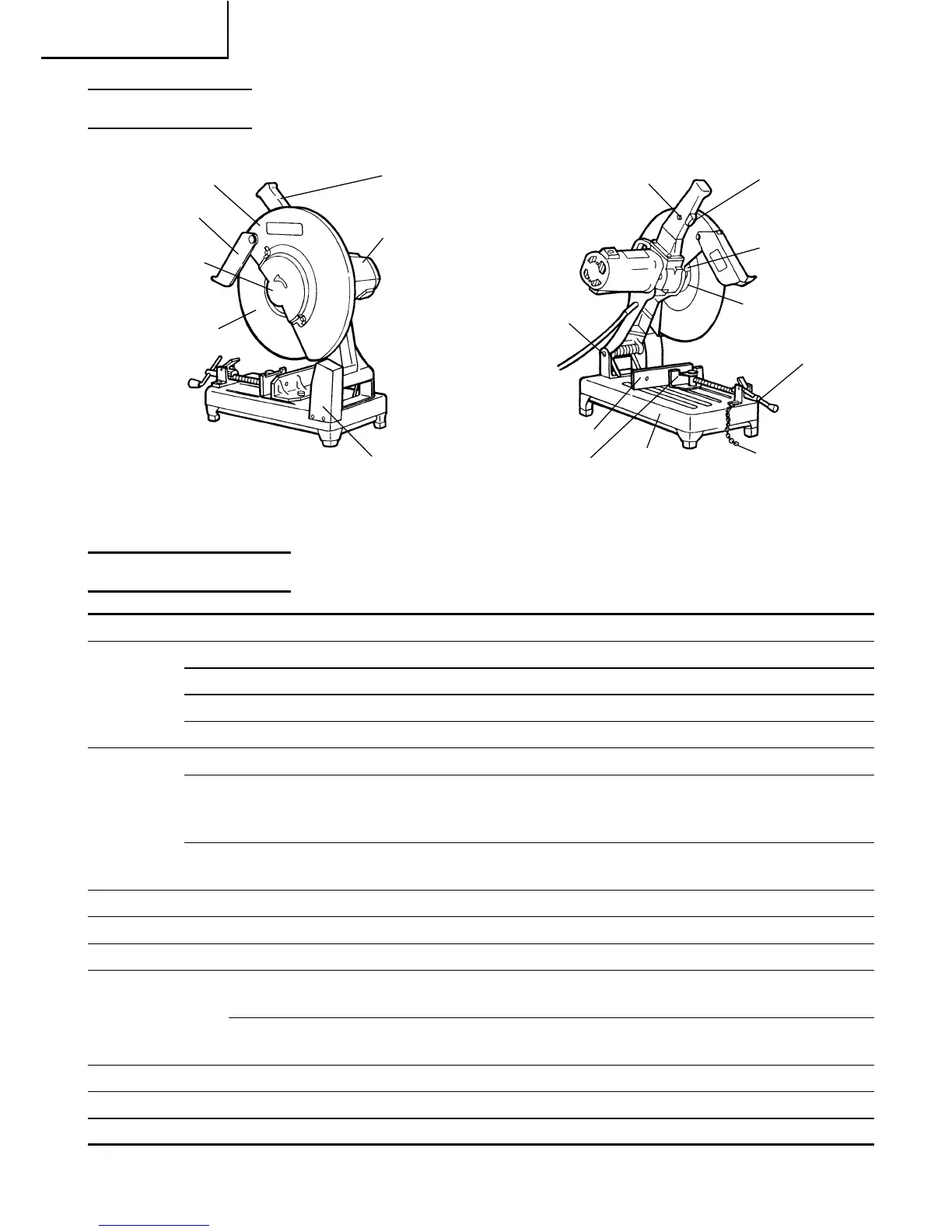

PART NAMES
Fig. 1 Fig. 2
Wheel Cover
Safety Cover
Sub Cover
Cut-off Wheel
Handle
Motor
Spark Chute
Lock-off Button
Shaft
Vise(B)
Vise(A)
Base
Switch
Stopper
Wheel Washer
Screw Handle
Chain
SPECIFICATIONS
Item Model CC 14
Type Protected type, series commutator motor
Motor
Power source Single-phase AC 60Hz
Voltage 115 Volts
Full-load current 15 Amp
Type Reinforced resinoid cut-off wheel
Outside Dia 14" (355 mm)
Cut-off Dimensions Thickness 7/64" (2.8 mm)
wheel Hole Dia. 1" (25.4 mm)
Max. working
16000 ft/min (4800 m/min)
peripheral speed
No-load speed 3700 rpm
No-load peripheral speed 13540 ft/min (4125 m/min)
Applicable workpiece materials
Round bars, pipes and various types of shaped steel
90°
Max. Height 3-59/64" (100 mm) Max. Height 2-5/32" (55 mm)
Max. cutting
Max. Width 6-1/2" (165 mm) Max. Width 8-3/8" (213 mm)
dimensions
45°
Max. Height 3-59/64" (100 mm) Max. Height 2-5/32" (55 mm)
Max. Width 3-5/8" (92 mm) Max. Width 5" (127 mm)
Max. opening of vise 8-3/8" (213 mm)
Net weight 37 lbs. (17 kg)
Cord 2 conductor type cabtire cable 8 ft (2.5 m)
