7
English
Switch Trigger
Housing
Change knob
Base
Stopper
Lever
Plunger
Blade
Dial
FUNCTIONAL DESCRIPTION
NOTE
The information contained in this Instruction Manual is designed to assist you in the safe
operation and maintenance of the power tool.
NEVER operate, or attempt any maintenance on the tool unless you have fi rst read and
understood all safey instructions contained in this manual.
Some illustrations in this instruction manual may show details or attachments that diff er from
those on your own power tool.

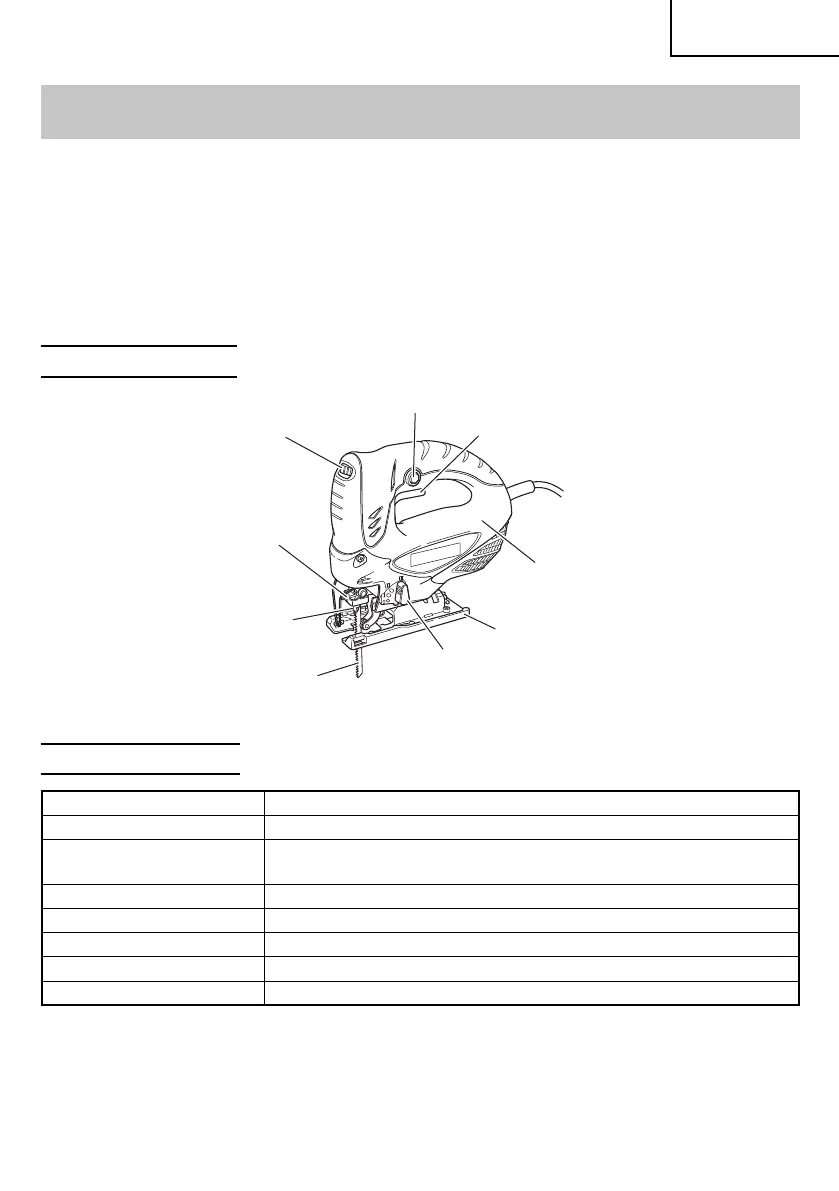

NAME OF PARTS
Fig. 1
SPECIFICATIONS
Motor Single-Phase, Series Commutator Motor
Power Source Single-Phase, 120 V AC 60 Hz
Capacity
Wood 3-1/2" (90 mm)
Mild steel 5/16" (8 mm)
Current 5.5 A
No-load speed 850 – 3,000/min
Stroke 3/4" (20 mm)
Min. cutting radius 1" (25 mm)
Weight 4.9 lbs (2.2 kg)
