5
Introduction

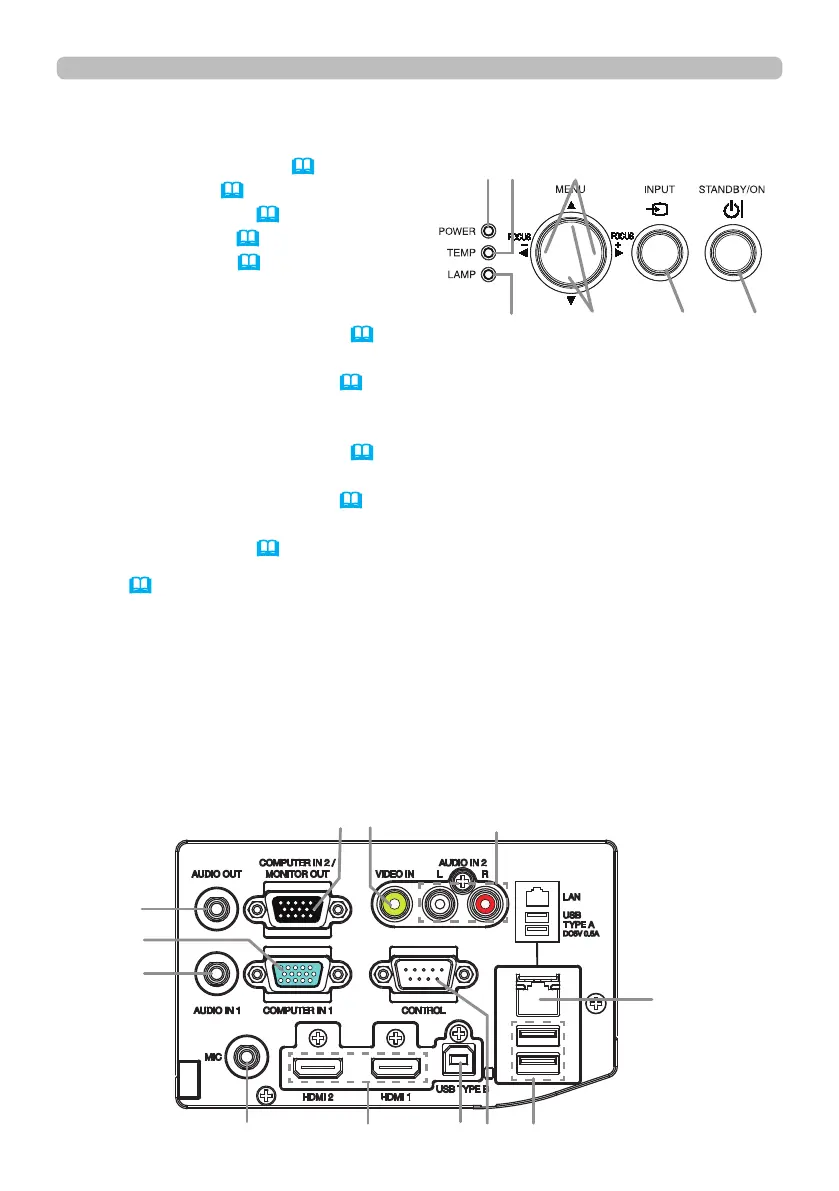

Part names (continued)
Control panel
(1) STANDBY/ON button (
20)
(2) INPUT button (24)
(3) POWER indicator (20, 107)
(4) TEMP indicator (107)
(5) LAMP indicator (107)
Buttons ◄/►/▲/▼
(6) FOCUS +/- buttons
when no menu is displayed (26), or
Cursor ◄/► buttons
when a menu is displayed (31). FOCUS +/- function is invalid when the
USB TYPE A port is selected as the input source.
(7) MENU buttons
when no menu is displayed (31), or
Cursor ▲/▼ buttons
when a menu is displayed (31).
The ◄/►/▲/▼ buttons on the projector work only as the cursor buttons while the
template is displayed (58).
Ports (
9 ~ 14)
(1) USB TYPE A port (x2)
(2) LAN port
(3) USB TYPE B port
(4) HDMI port (x2)
(5) MIC port
(6) AUDIO IN1 port
(7) AUDIO IN2(L,R) ports
(8) AUDIO OUT port
(9) COMPUTER IN1 port
(10) COMPUTER IN2 / MONITOR OUT port
(11) VIDEO IN port
(12) CONTROL port
(1)
(11)
(7)
(5)
(10)
(12)
(9)
(2)
(3)
(4)
(1)
(7)
(2)
(3)
(5)
(4)
(6)
(6)
(8)
