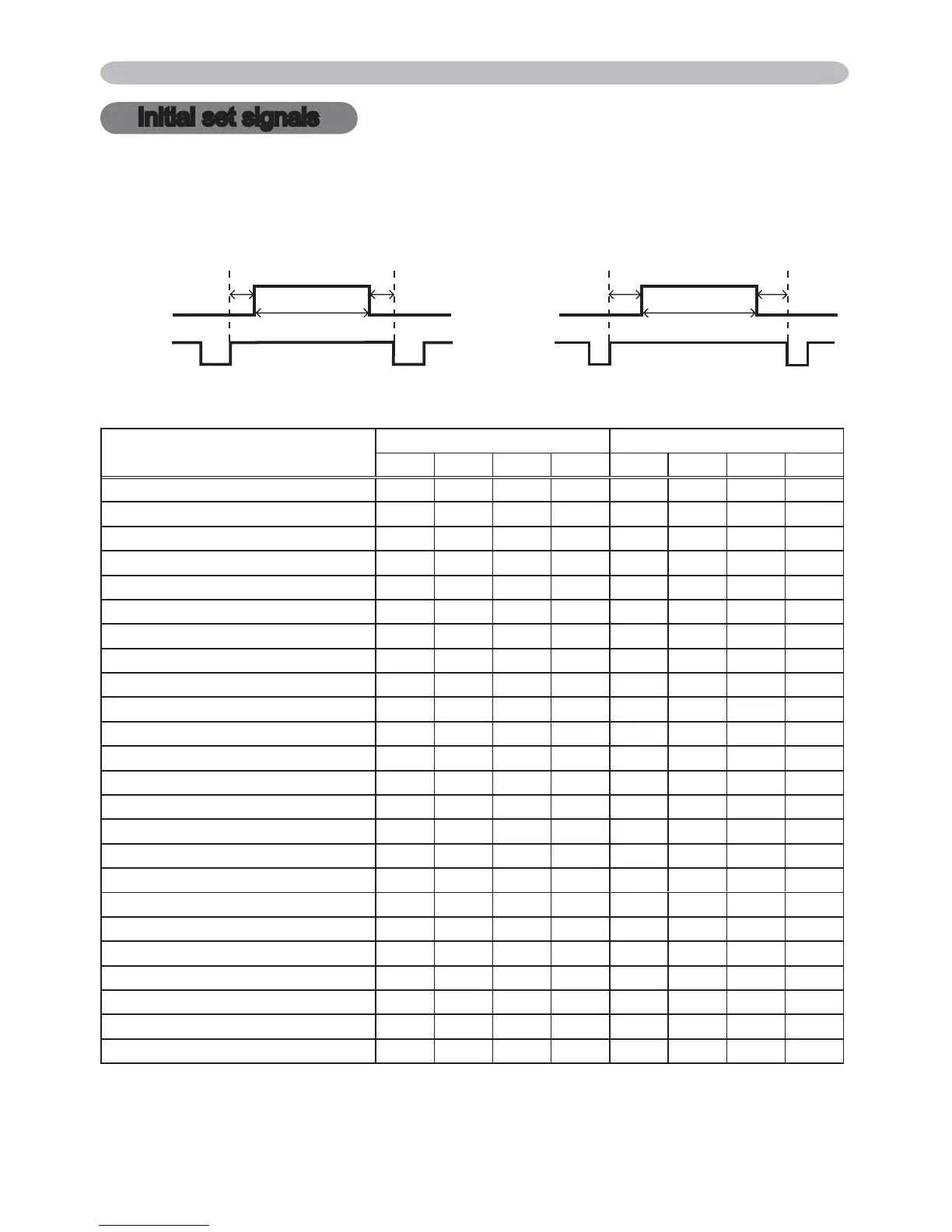

Initial set signals
Initial set signals
The following signals are used for the initial settings. The signal timing of some
PC models may be different. In such case, adjust the items V POSITION and H
POSITION in IMAGE menu.
Computer signal
Horizontal signal timing (μs) Vertical signal timing (lines)
(A) (B) (C) (D) (a) (b) (c) (d)
720 x 400 / TEXT 2.0 3.0 20.3 1.0 3 42 400 1
640 x 480 / VGA (60Hz) 3.8 1.9 25.4 0.6 2 33 480 10
640 x 480 / VGA (72Hz) 1.3 4.1 20.3 0.8 3 28 480 9
640 x 480 / VGA (75Hz) 2.0 3.8 20.3 0.5 3 16 480 1
640 x 480 / VGA (85Hz) 1.6 2.2 17.8 1.6 3 25 480 1
800 x 600 / SVGA (56Hz) 2.0 3.6 22.2 0.7 2 22 600 1
800 x 600 / SVGA (60Hz) 3.2 2.2 20.0 1.0 4 23 600 1
800 x 600 / SVGA (72Hz) 2.4 1.3 16.0 1.1 6 23 600 37
800 x 600 / SVGA (75Hz) 1.6 3.2 16.2 0.3 3 21 600 1
800 x 600/SVGA (85Hz) 1.1 2.7 14.2 0.6 3 27 600 1
832 x 624 / Mac 16" mode 1.1 3.9 14.5 0.6 3 39 624 1
1024 x 768 / XGA (60Hz) 2.1 2.5 15.8 0.4 6 29 768 3
1024 x 768 / XGA (70Hz) 1.8 1.9 13.7 0.3 6 29 768 3
1024 x 768 / XGA (75Hz) 1.2 2.2 13.0 0.2 3 28 768 1
1024 x 768 / XGA (85Hz) 1.0 2.2 10.8 0.5 3 36 768 1
1152 x 864 (75Hz) 1.2 2.4 10.7 0.6 3 32 864 1
1280 x 768 / W-XGA (60Hz) 1.7 2.5 16.0 0.8 3 23 768 1
1280 x 800 (60Hz) 1.6 2.4 15.3 0.8 3 24 800 1
1280 x 960 (60Hz) 1.0 2.9 11.9 0.9 3 36 960 1
1280 x 1024 / SXGA (60Hz) 1.0 2.3 11.9 0.4 3 38 1024 1
1280 x 1024 / SXGA (75Hz) 1.1 1.8 9.5 0.1 3 38 1024 1
1280 x 1024 / SXGA (85Hz) 1.0 1.4 8.1 0.4 3 44 1024 1
1400 x 1050 / SXGA+ (60Hz) 1.2 2.0 11.4 0.7 3 33 1050 1
1600 x 1200 / UXGA (60Hz) 1.2 1.9 9.9 0.4 3 46 1200 1
Back porch (B) Front porch (D) Back porch (b) Front porch (d)
Active video (C)
Data Data
H. Sync. V. Sync.
Sync (A) Sync (a)
Active video (c)
