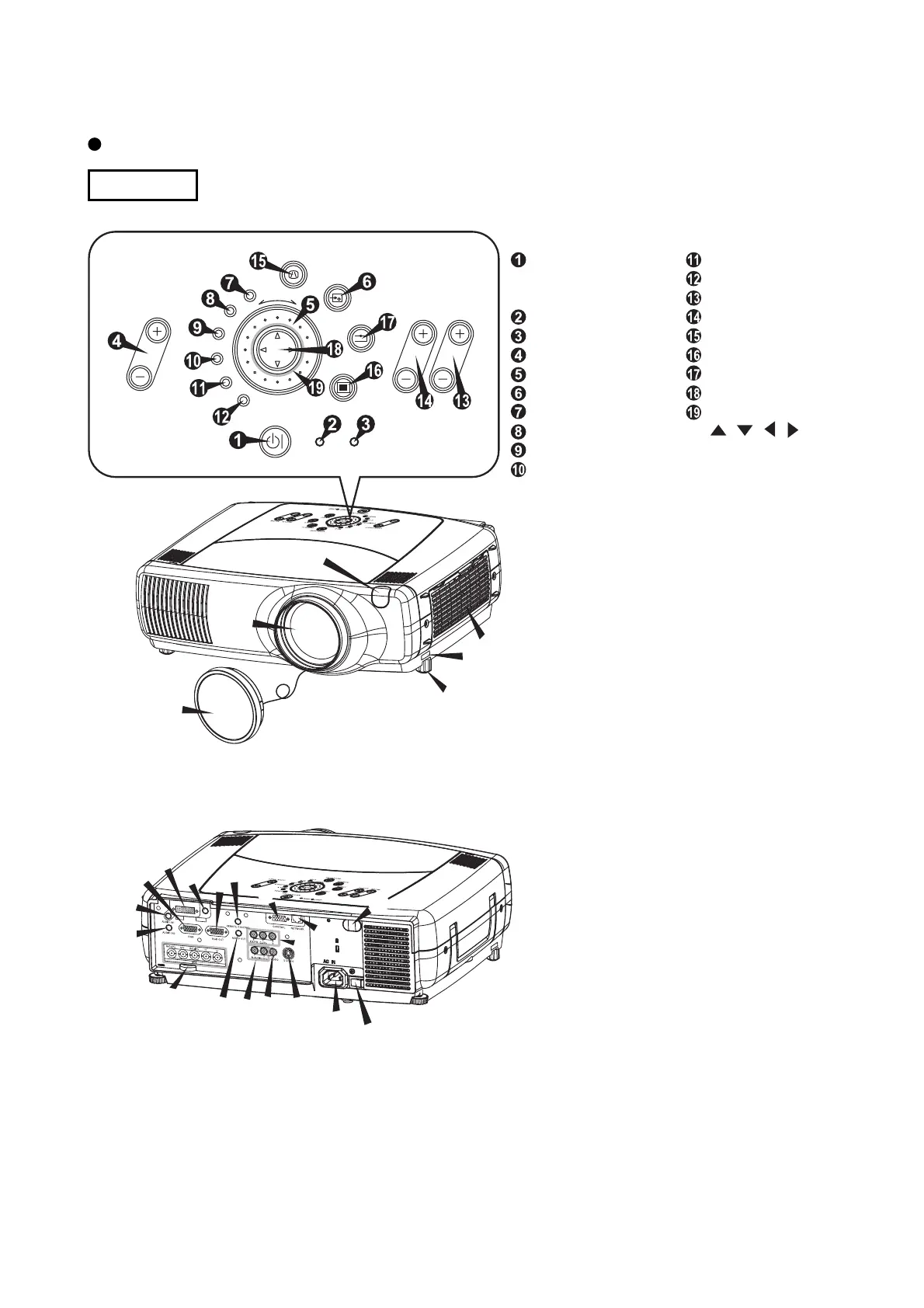

3. Names of each part
Parts names
Projector
1 Elevator button
2 Elevator foot
3 Remote sensor
4 Lens cap
5 Lens
The picture is projected from
here.
6 Filter cover
An air filter is inside.
A RGB port
B M1-D port
C BNC port
D
AUDIO IN 1 port
E AUDIO IN 2 port
F CONTROL port
G NETWORK port
H AUDIO IN R/L port
I VIDEO IN port
J S-VIDEO port
K COMPONENT port
L RGB OUT port
M AUDIO OUT port
7 REMOTE CONTROL port
8 DC OUT port
9 AC Inlet
10 Power switch
Projector (Front/Right)
Projector (Rear/Left)
1
2
3
5
6
4
9
10
ENTER
INPUT
M1-D
RGB
BNC
S-VIDEO
STANDBY/ON
TEMP
VIDEO
COMPONENT
LAMP
KEYSTONE
SEARCH
RESET
MENU
FOCUS
LENS SHIFT
ZOOM
Control Panel
STANDBY/ON button
and STANDBY/ON
indicator
TEMP indicator
LAMP indicator
LENS SHIFT buttons
INPUT dial
SEARCH button
M1-D indicator
RGB indicator
BNC indicator
COMPONENT indicator
S-VIDEO indicator
VIDEO indicator
ZOOM buttons
FOCUS buttons
KEYSTONE button
MENU button
RESET button
ENTER button
Cursor buttons
///
3
L
A
D
E
C
H
I
B
M
J
K
G
8
7
F
