Hitachi CP-WX410 - Port Connections; Computer and HDMI Port Pinouts

3
AUDIO IN3
CONTROL
AUDIO OUT
COMPUTER IN1
COMPUTER IN2
MONITOR OUT
HDMI
AUDIO IN
S-VIDEO
USB
A
COMPUTER IN1,
B
COMPUTER IN2,
C
MONITOR OUT
D-sub 15pin mini shrink jack
• Video signal: RGB separate, Analog, 0.7Vp-p,
75Ω terminated (positive)
• H/V. sync. signal: TTL level (positive/negative)
• Composite sync. signal: TTL level
Pin Signal Pin Signal
1
Video Red
9
(No connection)
2 Video Green 10 Ground
3 Video Blue 11 (No connection)
4 (No connection) 12
A
: SDA (DDC data) /
B
,
C
: (No connection)
5 Ground 13 H. sync / Composite sync.
6 Ground Red 14 V. sync.
7 Ground Green 15
A
: SCL (DDC clock) /
B
,
C
: (No connection)
8 Ground Blue - -

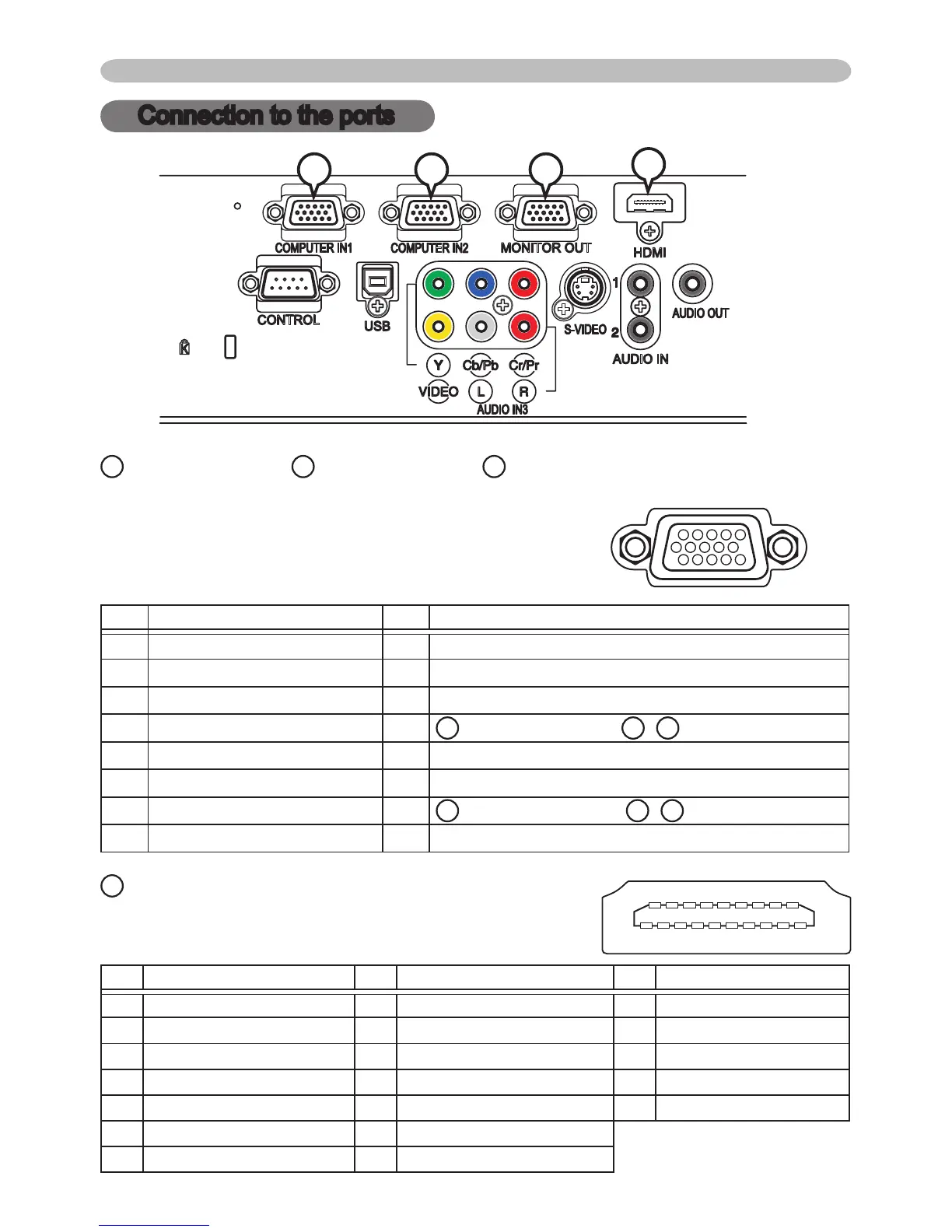

Connection to the ports


 
Connection to the ports
B
C
A
D
HDMI
HDMI connector
• Audio signal : Linear PCM (Sampling rate; 32/44.1/48 kHz)
Pin Signal Pin Signal Pin Signal
1 T.M.D.S. Data2 + 8 T.M.D.S. Data0 Shield 15 SCL
2 T.M.D.S. Data2 Shield 9 T.M.D.S. Data0 - 16 SDA
3 T.M.D.S. Data2 - 10 T.M.D.S. Clock + 17 DDC/CEC Ground
4 T.M.D.S. Data1 + 11 T.M.D.S. Clock Shield
18 +5V Power
5 T.M.D.S. Data1 Shield 12 T.M.D.S. Clock - 19 Hot Plug Detect
6 T.M.D.S. Data1 - 13 CEC
7 T.M.D.S. Data0 + 14
Reserved(N.C. on device)
19 17 15 13 11 9 7 5 3 1
18 16 14 12 10 8 6 4 2
D
