5

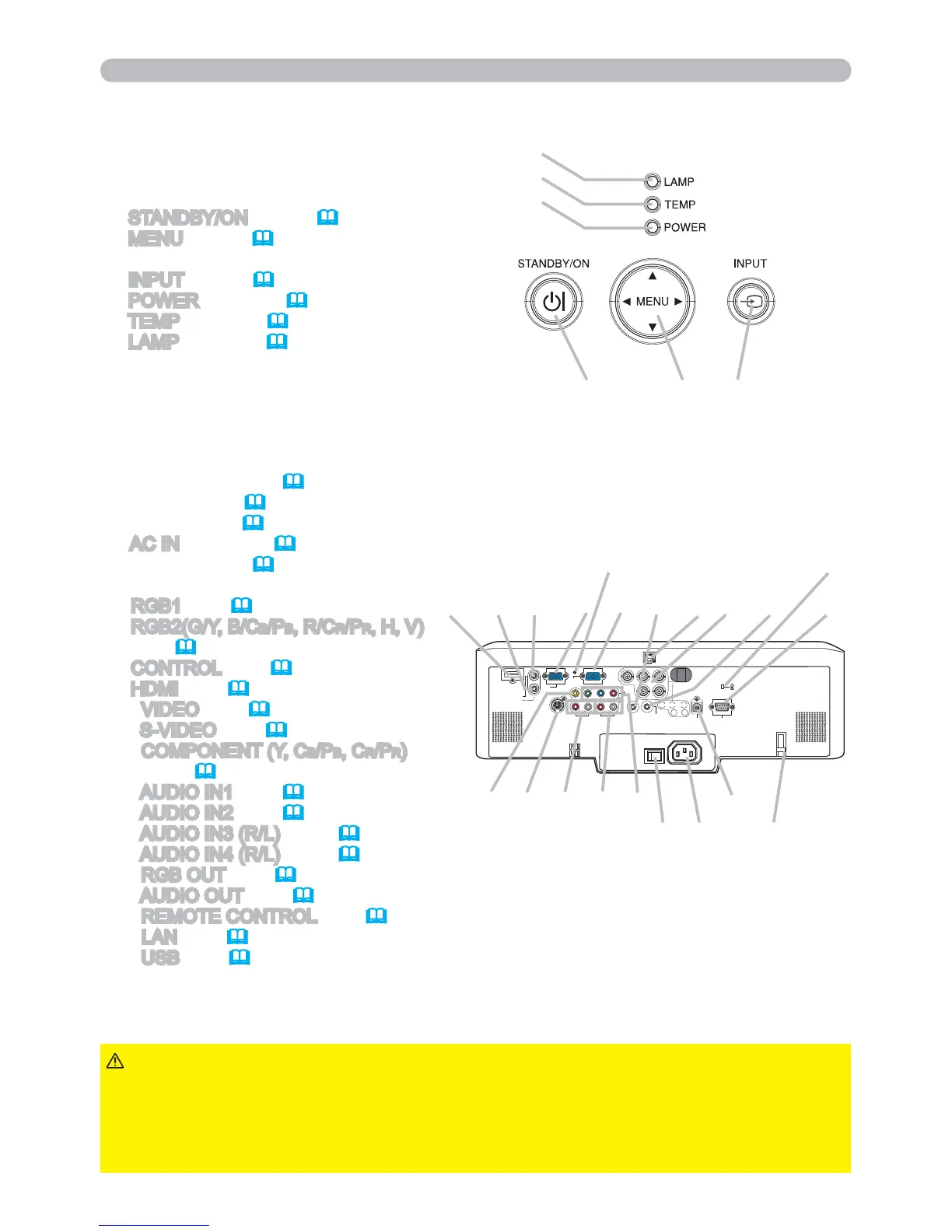

Part names
Control panel
(1) STANDBY/ON button (16)
(2)
MENU button (25)
It consists of four cursor buttons.
(3)
INPUT button (17)
(4)
POWER indicator (16, 69)
(5)
TEMP indicator (69)
(6)
LAMP indicator (69)
Rear panel
(1) Shutdown switch (71)
(2) Security slot (
9)
(3) Security bar (
9)
(4)
AC IN (AC inlet) (12)
(5) Power switch (
16)
(6)
RGB1 port (10)
(7)
RGB2(G/Y, B/CB/PB, R/CR/PR, H, V)
port (
10)
(8)
CONTROL port (10)
(9)
HDMI port (10)
(10)
VIDEO port (10)
(11)
S-VIDEO port (10)
(12)
COMPONENT (Y, CB/PB, CR/PR)
ports (
10)
(13)
AUDIO IN1 port (10)
(14)
AUDIO IN2 port (10)
(15)
AUDIO IN3 (R/L) ports (10)
(16)
AUDIO IN4 (R/L) ports (10)
(17)
RGB OUT port (10)
(18)
AUDIO OUT port (10)
(19)
REMOTE CONTROL port (10)
(20)
LAN port (10)
(21)
USB port (10)
(6)
(5)
(4)
(1) (2) (3)
►Do not use the security bar and the security slot to prevent the
projector from falling down, since it is not designed for it.
►Use the shutdown switch only when the projector is not turned off by normal
procedure, since pushing this switch stops operation of the projector without
cooling it down.
CAUTION
LAN
AC IN
I O
VIDEO
CONTROL
AUDIO IN1
AUDIO IN2
AUDIO OUT
RGB
OUT
RGB1
RGB2
HDMI
R L R L
AUDIO IN3 AUDIO IN4
CB/PB
Y
C
R/PR
B/CB/PB
R/CR/PR
G/Y
H
V
USB
REMOTE
CONTROL
S-VIDEO
(14) (13) (17) (6) (7)(20)(18)(9) (19) (8)
(2)(1)
(10) (11) (15) (16) (12)
(5) (4)
(3)
(21)
