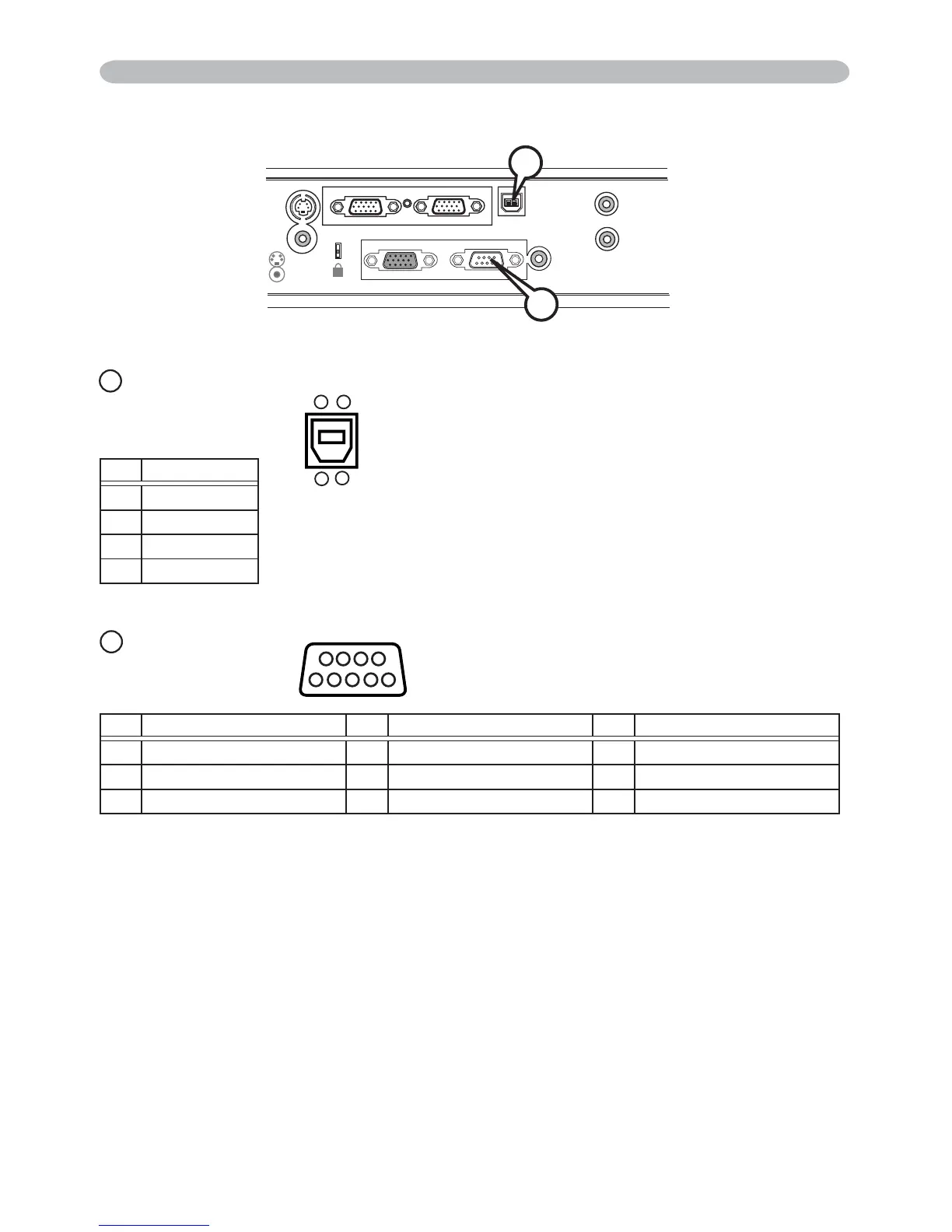

Connection to the ports (continued)
K
COMPUTER IN1
COMPUTER IN2
USB
AUDIO IN1
AUDIO IN2
S-VIDEO
VIDEO
MONITOR OUT CONTROL
AUDIO OUT
I
USB
USB B type jack
Pin Signal
1 +5V
2 - Data
3 + Data
4 Ground
2
1
34
I
J
J
CONTROL
D-sub 9pin plug
Pin Signal Pin Signal Pin Signal
1 (No connection) 4 (No connection) 7 RTS
2 RD 5 Ground 8 CTS
3 TD 6 (No connection) 9 (No connection)
9 8 7 6
54321
