Hitachi CP-X275W - Technical; Signal Connector Pin Assignments

TECHNICAL - 1
TECHNICAL
TECHNICAL
TECHNICAL

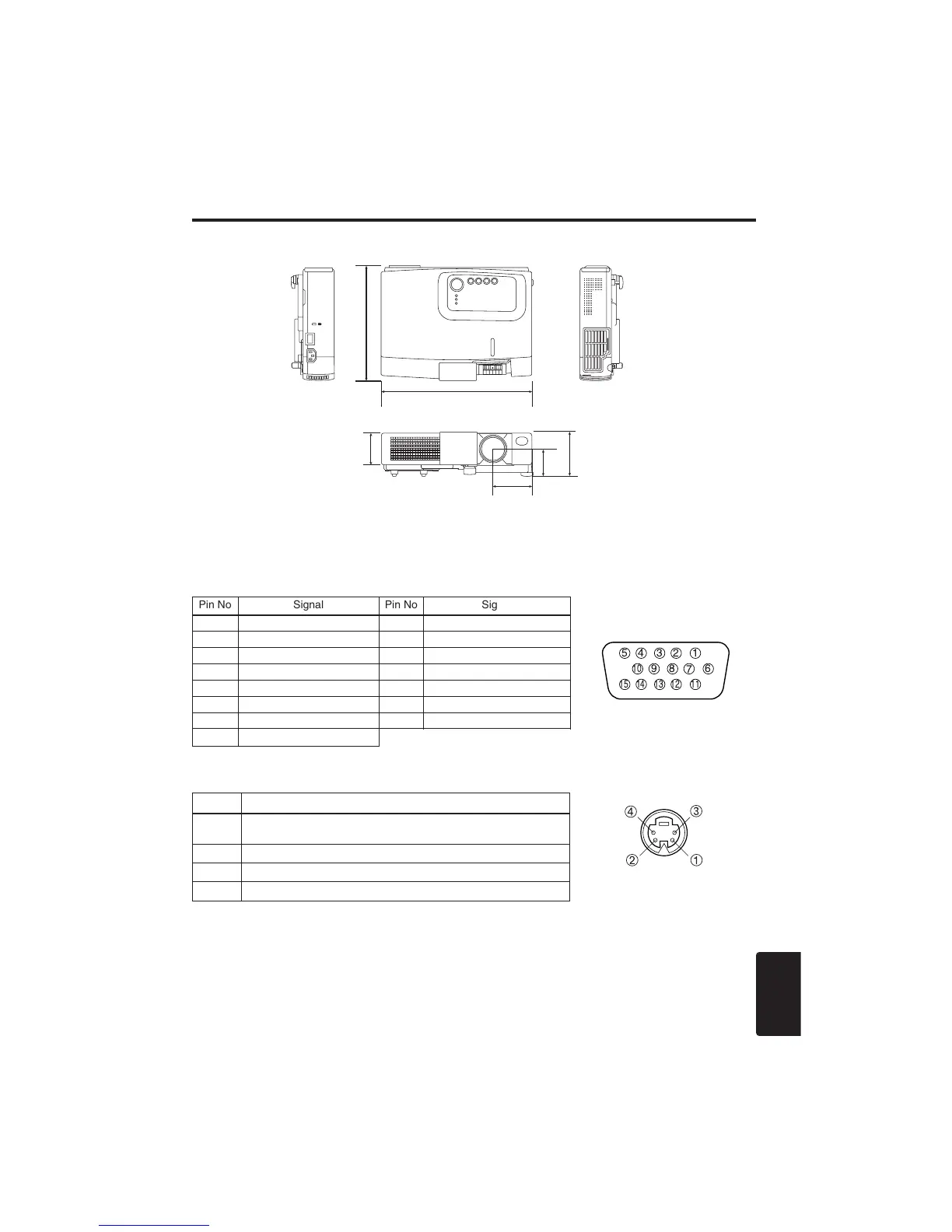

Dimension Diagram
289
84
52.5
74.5
215
60
Unit : mm
2. Mini Din 4-pin Connector (S-VIDEO)
Pin No Signal
1
Color:0.286Vp-p (NTSC, burst signal),75Ω terminator
0.3Vp-p (PAL/SECAM, burst signal),75Ω terminator
2 Brightness:1.0Vp-p, 75Ω terminator
3 Ground
4 Ground
Signal Connector Pin Assignment
1. D-sub 15-pin Shrink Connector (RGB IN)

!
"
#
$
%
&'


 !
"#
Pin No Signal Pin No Signal
1 Video input Red 9 -
2 Video input Green 10 Ground
3 Video input Blue 11 -
4 - 12 SDA(DDC)
5 Ground 13 H. sync./ Composite sync.
6 Ground Red 14 Vertical sync
7 Ground Green 15 SCL(DDC)
8 Ground Blue
