Hitachi CP-X385W User Manual

10
B
A
AUDIO IN
AUDIO cable
RGB cable
AUDIO OUT
RGB IN
Analogue RGB OUT
AUDIO IN VIDEO IN S-VIDEO IN
AUDIO
IN
AUDIO OUT
1
12
2 USB
RGB IN
RGB OUT CONTROL
A
B
Laptop computer
B
A
D
C
USB IN
USB OUT
AUDIO IN
AUDIO OUT
RGB IN
Analogue RGB OUT
CONTROL IN CONTROL OUT
If connecting to a
USB port equipped
computer
RGB cable
AUDIO cable
USB cable
MOUSE cable
AUDIO IN VIDEO IN S-VIDEO IN
AUDIO
IN
AUDIO OUT
1
12
2USB
RGB IN
RGB OUT CONTROL
A
B
D
C
Desktop computer

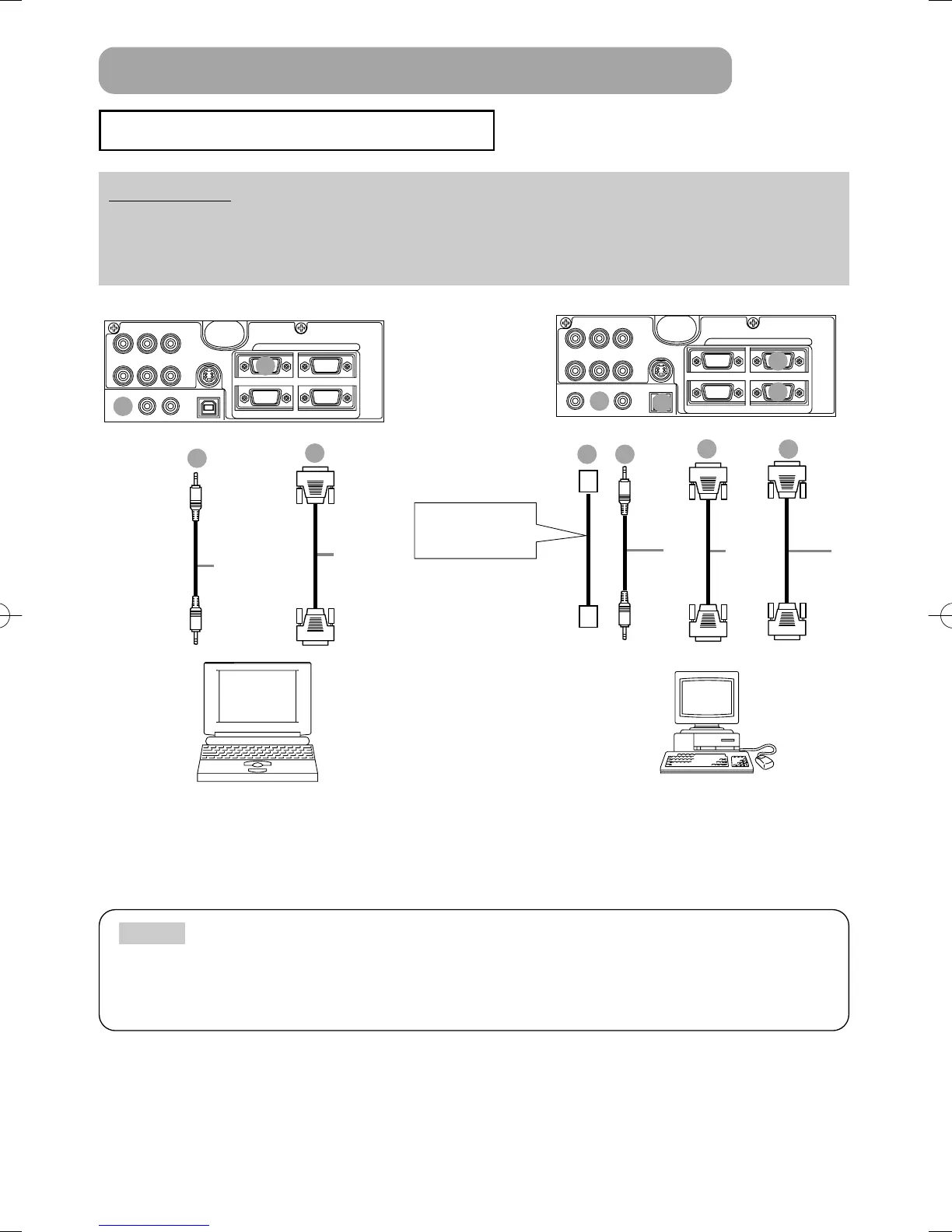

CONNECTING YOUR DEVICES (continued)
Connecting to a Computer
ATTENTION Whenever attempting to connect a laptop computer to the projector,
be sure to activate the laptop's RGB external image output (set the laptop to CRT
display or to simultaneous LCD and CRT display). For details on how this is done,
please refer to the instruction manual of the corresponding laptop computer.
• Some computers may have multiple display screen modes. Use of some of these
modes will not be possible with this projector.
• For some RGB input modes, the optional Mac adapter is necessary.
NOTE
01CPX385/EN最終02.11.74:15PMページ10
