CP-X505(EDX35N)
3. Detaching and attaching the Panel Fan Duct assembly
Tighten 6 screws and hook the panel fan duct assembly.
When assembling

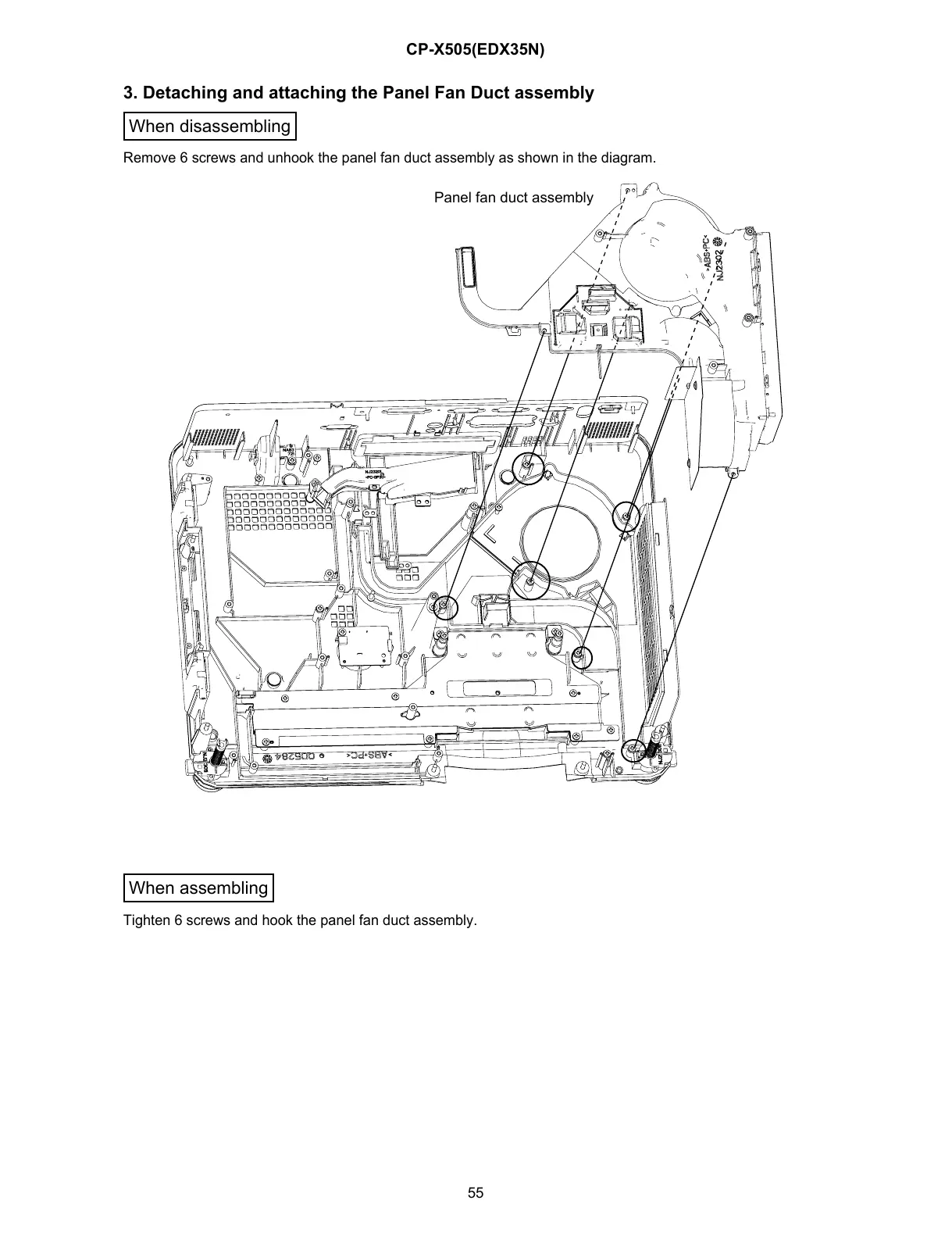

Remove 6 screws and unhook the panel fan duct assembly as shown in the diagram.
When disassembling
Panel fan duct assembly
