Hitachi CS 33EDT Handling Instructions

English
7

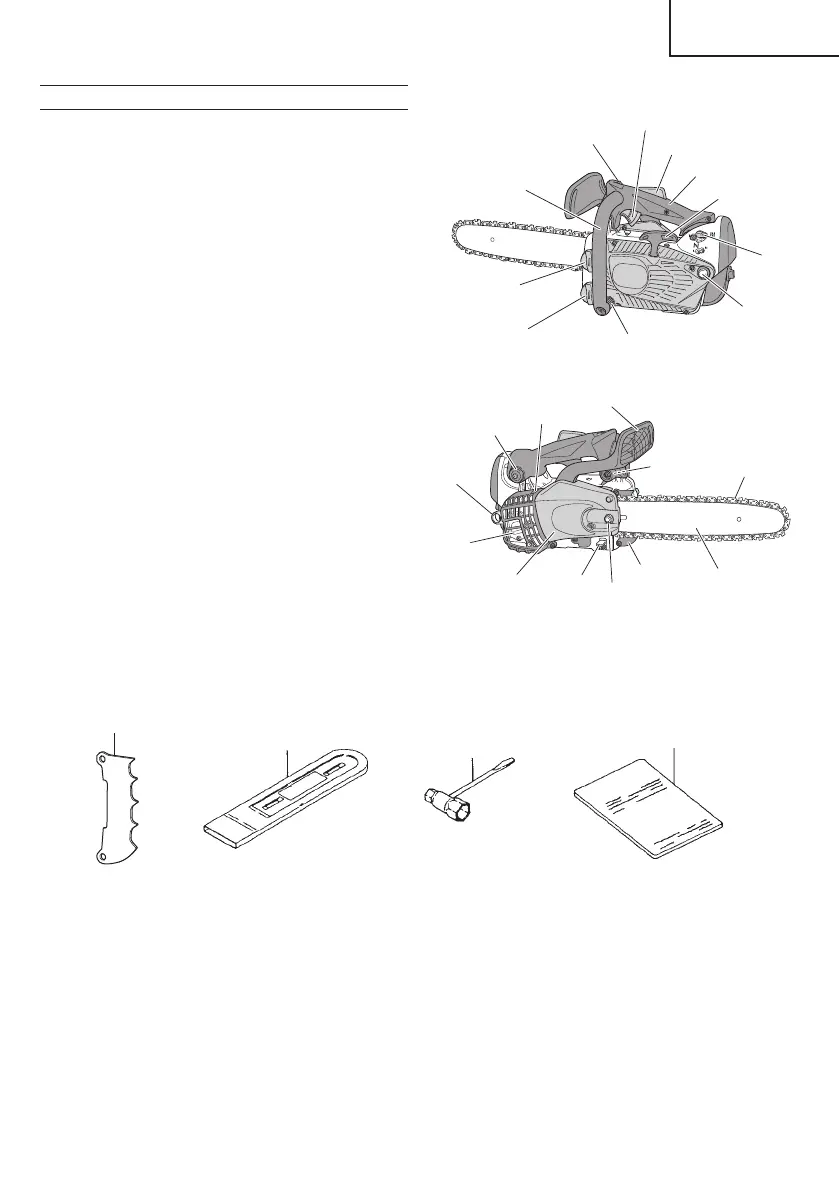

WHAT IS WHAT?
1. Throttle lever: Device activated by the operatorʼs fi nger, for
controlling the engine speed.
2. Throttle lever lockout: Device that prevents the accidental
operation of the throttle lever until manually released.
3. Stop switch: Device for allowing the engine to be started or
stopped.
4. Oil tank cap: For closing the oil tank.
5. Recoil starter: Pull handle to start the engine.
6. Front handle: Support handle located at or towards the front of
the engine housing.
7. Fuel tank cap: For closing the fuel tank.
8. Rear handle: Support handle located on the top of the engine
housing.
9. Choke lever: Device for enriching the fuel/air mixture in the
carburetor, to aid starting.
10. Priming pump; Device for supplying extra fuel, to aid starting.
11. Guide bar: The part that supports and guides the saw chain.
12. Saw chain: Chain, serving as a cutting tool.
13. Chain brake (Front hand guard): Device for stopping or locking
the chain.
14. Attachment point: The part for suspending the unit by using a
safety strap, carabineer or rope.
15. Chain catcher: Device for restraining the saw chain.
16. Side case: Protective cover to the guide bar, saw chain, clutch
and sprocket when the chain saw is in use.
17. Muffl er: Reduces engine exhaust noise and directs the exhaust
gases.
18. Anti-vibration spring: Reduce the transmission of vibrations to
the operator's hands.
19. Anti-vibration rubber: Reduce the transmission of vibrations to
the operator's hands.
20. Chain bar clamp nut: Secures the side case and the guide bar.
21. Spiked bumper (optional): Device for acting as a pivot when in
contact with a tree or log.
22. Guide bar cover: Device for covering the guide bar and saw
chain when the unit is not being used.
23. Combi box spanner: The tool for removing or installing a spark
plug and tensioning the saw chain.
24. Handling instructions: Included with unit. Read before operation
and keep for future reference to learn proper, safe techniques.
25. Hot surface caution label: Label for caution to hot surface.
21
22
23
24
18
10
8
2
9
6
5
1
3
7
4
12
18
13
16
17
14
19
15
11
25
21
20
000BookCS33EDTEE.indb7000BookCS33EDTEE.indb7 2013/06/2415:55:492013/06/2415:55:49

Hitachi CS 33EDT Specifications

General

Brand	Hitachi
Model	CS 33EDT
Category	Chainsaw
Language	English
