10
Controls and Connections (Cont.)

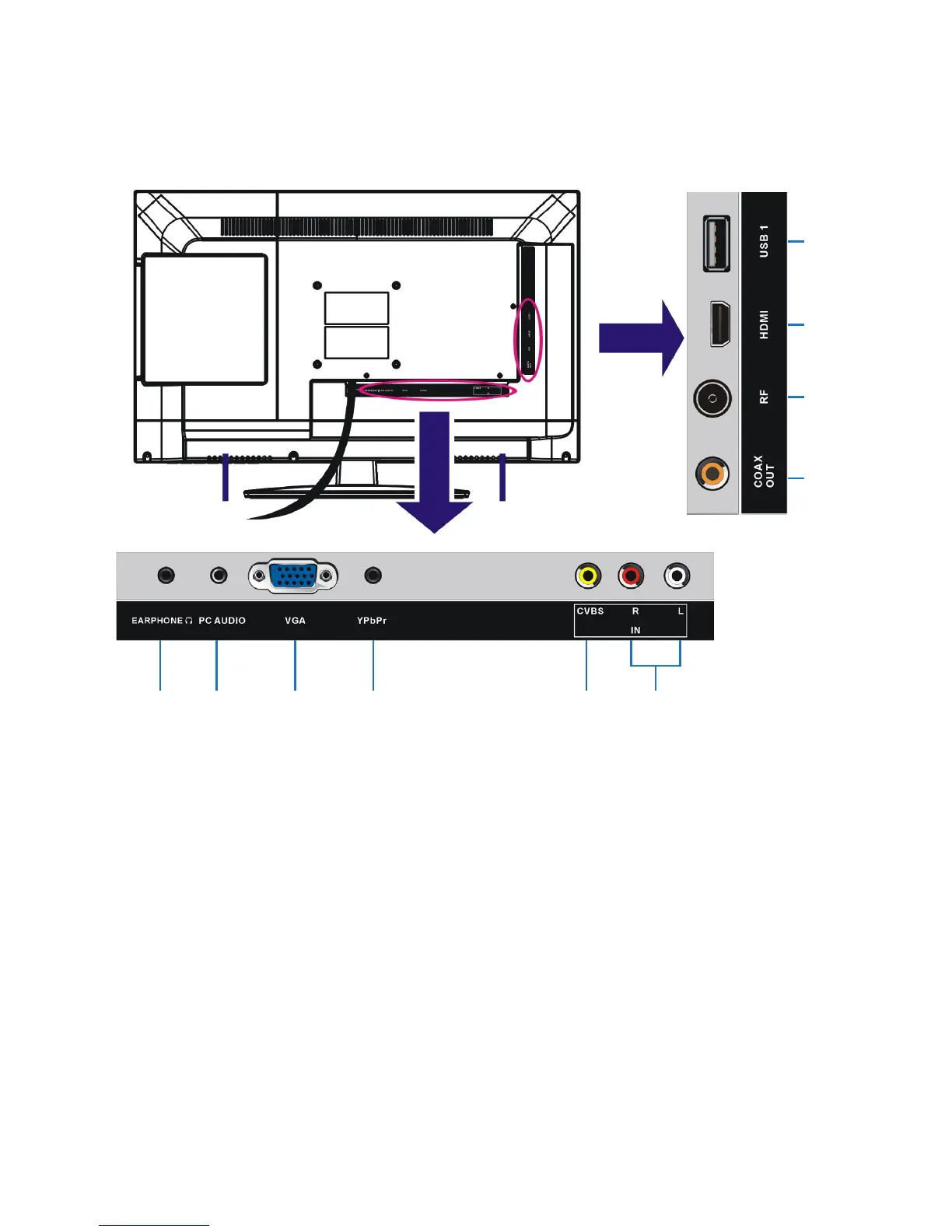

Main unit back view controls and sockets
1 Built-in speakers
2 EARPHONE output terminal
3 PC AUDIO input terminal
4 VGA input terminal
5 YPbPr video input (mini terminal)
6 CVBS (AV) video input terminal
7 AUDIO R/L input terminals: for use with YPbPr & CVBS.
8 USB1 input terminal: for multimedia file playback (USB mode).
9 HDMI input terminal
10 RF input terminal: for connection of the external antenna.
11 COAXIAL S/PDIF output terminal
2 3 4 5 6 7
8
9
10
11
1 1
To Next Page
