Hitachi DH 28PC - ACCESSORIES FOR SCREW DRIVING AND DUST COLLECTION

19
English

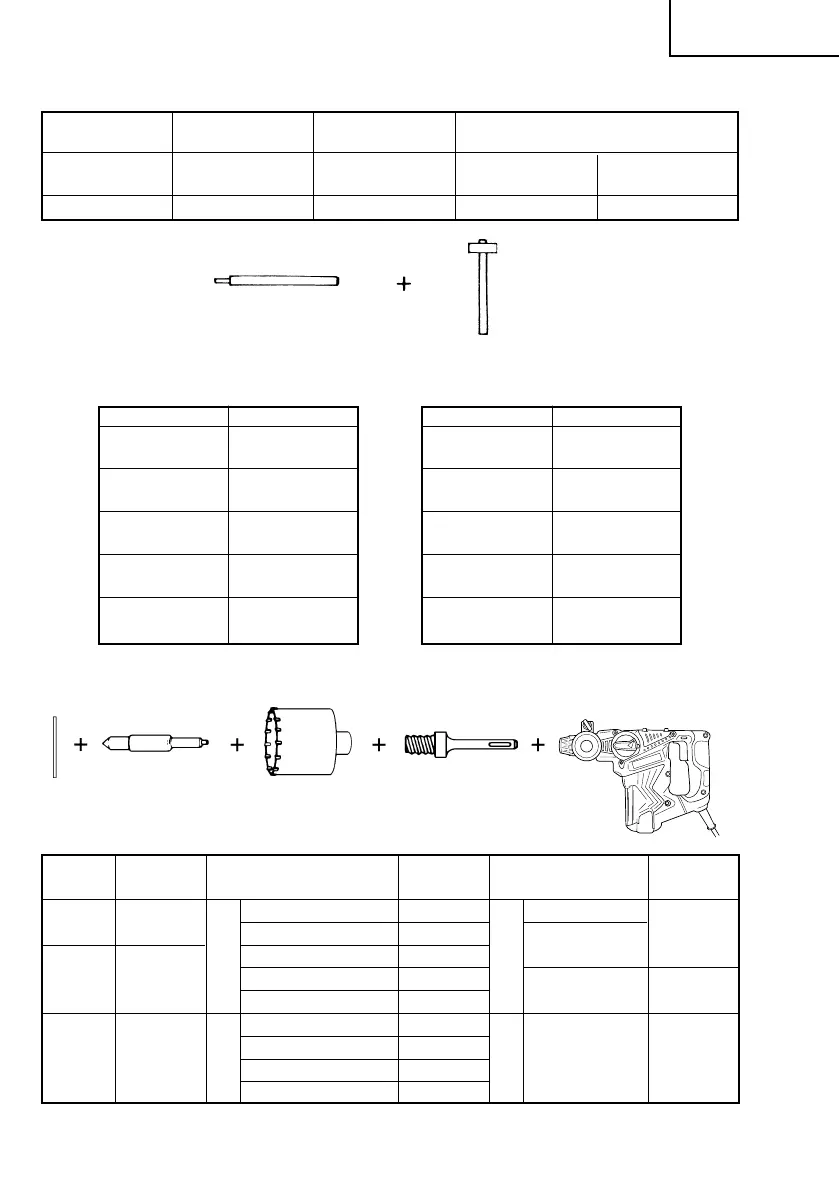

Anchor setting adaptor
(for manual hammer)
<Outer wedge type with
the female screw>
Anchor size Code No.
W1/4"
971794
(6.3 mm)
W5/16"
971795
(8 mm)
W3/8"
971796
(9.5 mm)
W1/2"
971797
(12.7 mm)
W5/8"
971798
(15.9 mm)
<Inner wedge type with
the headless screw>
Anchor size Code No.
W1/4"
971799
(6.3 mm)
W5/16"
971800
(8 mm)
W3/8"
971801
(9.5 mm)
W1/2"
971802
(12.7 mm)
W5/8"
971803
(15.9 mm)
<Inner wedge type with the headless screw>
Anchor size
W 1/4" W 5/16" W 3/8"
(6.3 mm) (8 mm) (9.5 mm)
Overall Length
10-1/4" 10-1/4" 6-1/4" 10-1/4"
(260 mm) (260 mm) (160 mm) (260 mm)
Code No. 302979 302978 303622 302977
Core bit (outer diameter) Core bit shank
––
1"(25 mm) 982672 Overall length
1-1/8" (29 mm) 982673 4-1/8" 303625
(A) 1-1/4" (32 mm) 982674 (A) (105 mm)
(A) 982684 1-3/8" (35 mm) 982675 12"
303626
1-1/2" (38 mm) 982676 (300 mm)
1-3/4" (45 mm) 982677
2" (50 mm) 982678 12"
(B) 982685 (B)
2-9/16" (65 mm) 982679
(B)
(300 mm)
303627
3-5/32" (80 mm) 982680
Center
pin
Code No. Code No. Code No.
3. Large hole boring (Rotation + Hammering)
Guide
Plate
Center pin Core Bit
Core bit Shank
(SDS-plus shank)
