FUNCTIONAL DESCRIPTION
NOTE:
The information contained in this Instruction Manual is designed to assist you in
the safe operation and maintenance of the power tool.
Some illustrations in this Instruction Manual may show details or attachments
that differ from those on your own power tool.
NAME OF PARTS

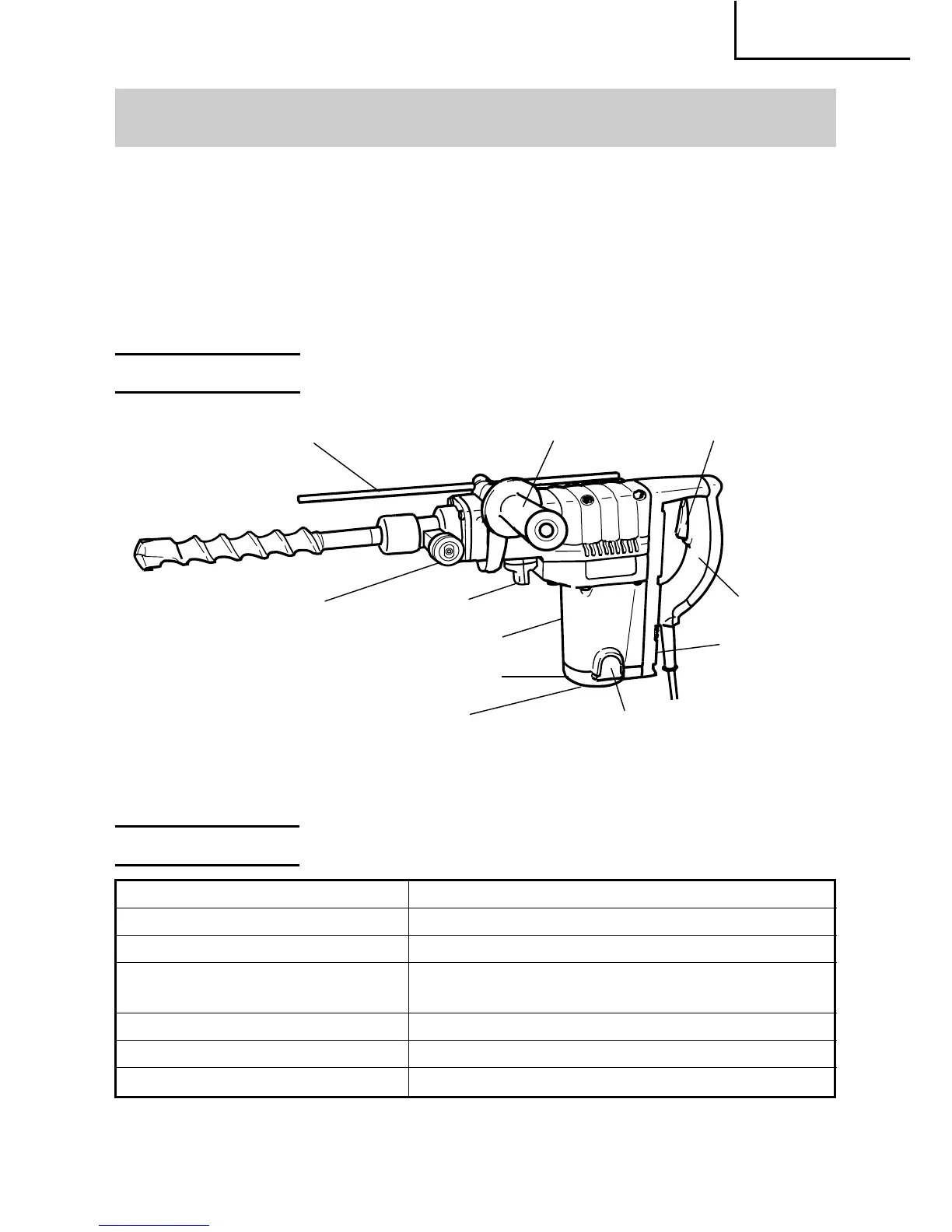

Fig. 1
Housing
Stopper
Switch Trigger
Side Handle
Handle
Nameplate
Tail Cover
Set Screw
(Under the Tail Cover)
Selector Lever
Brush Cap
(Inside the Tail Cover)
SPECIFICATIONS
Motor Single-Phase, Series Commutator Motor.
Power Source Single-Phase, 115 V 60 Hz
Current 8.7 A
Capacity Drill Bit: 1-9/16" (40 mm)
Core Bit: 4-1/8" (105 mm)
No-Load Speed 400/min
Full-load Blow 2800 bpm
Weight 14.8 lbs (6.7 kg)
Tool Holder
