7
2. GENERAL DESCRIPTION [Daily Operating Components]
● Verify that the oil level of the lubricating oil is
between the red lines during operation.
Lubricating oil circulates in the cooler and piping during
operation, so the position of the oil level differs when the
compressor is running and when it is off. The level rises
when the compressor stops running.
Oil Filling Port
Oil Level Gauge
● Indicates the operation control section.
(
For more information, see Chapter 3, on
page 10.)
● Operation ON → POWER light on.
● Start: Press START button → Operation Light on
during operation
● Stop: Press UNLOAD STOP button →
unloading
stops for 5 minutes → Operation Light off during
operation
● Power OFF: → POWER light off

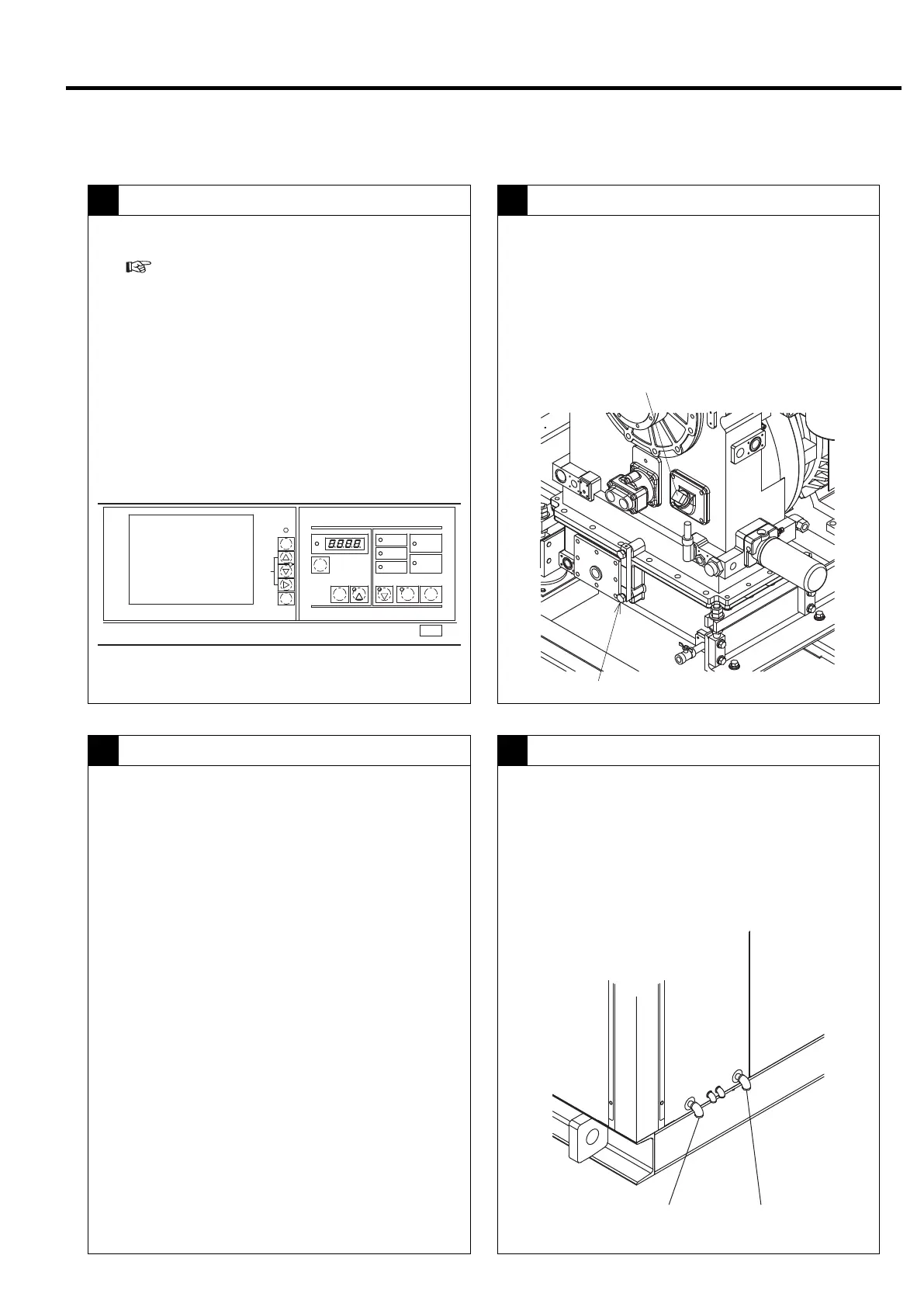

2.3 Daily Operating Components
Controls on the Instrument Panel
Aftercooler and Intercooler - Condensate Drain Valve
Lubricating Oil
Oil Level Gauge
1 2
3 4
Oil: Use genuine Hitachi GL-68 DSP Compressor Oil.
Replace the oil every 8,000h operating hour or
every 2-year, whichever comes earlier.
モニタ
メニュー
リセット
遠方
機能
電源
運転 停止
運転状況
故障
運転管理
負荷
遠方
起動待ち
設定
自動
UP/
DOWN
警報
記憶
表示切替/
ワ イド モ ード
＋／−
AUTO
MONITOR
MENU
SET
SELECT/WIDE
2
RUNNINGCONTROL
STARTREMOTE
1
FUNC
［× 10h］
ALARM
STR
REMOTE
RUNNINGMODE
AUTOSTART
POWER
LOAD
RESET
SHUTDOWN
STOP
MONITOR
UNLOAD STOP
Intercooler
drain port
After cooler
drain port
● Verify that air containing drainage is discharged
intermittently from the intercooler and after cooler
drain ports.
The higher the temperature and humidity, the more drainage
is produced. Drainage may not be produced on the intercool-
er side during winter.
