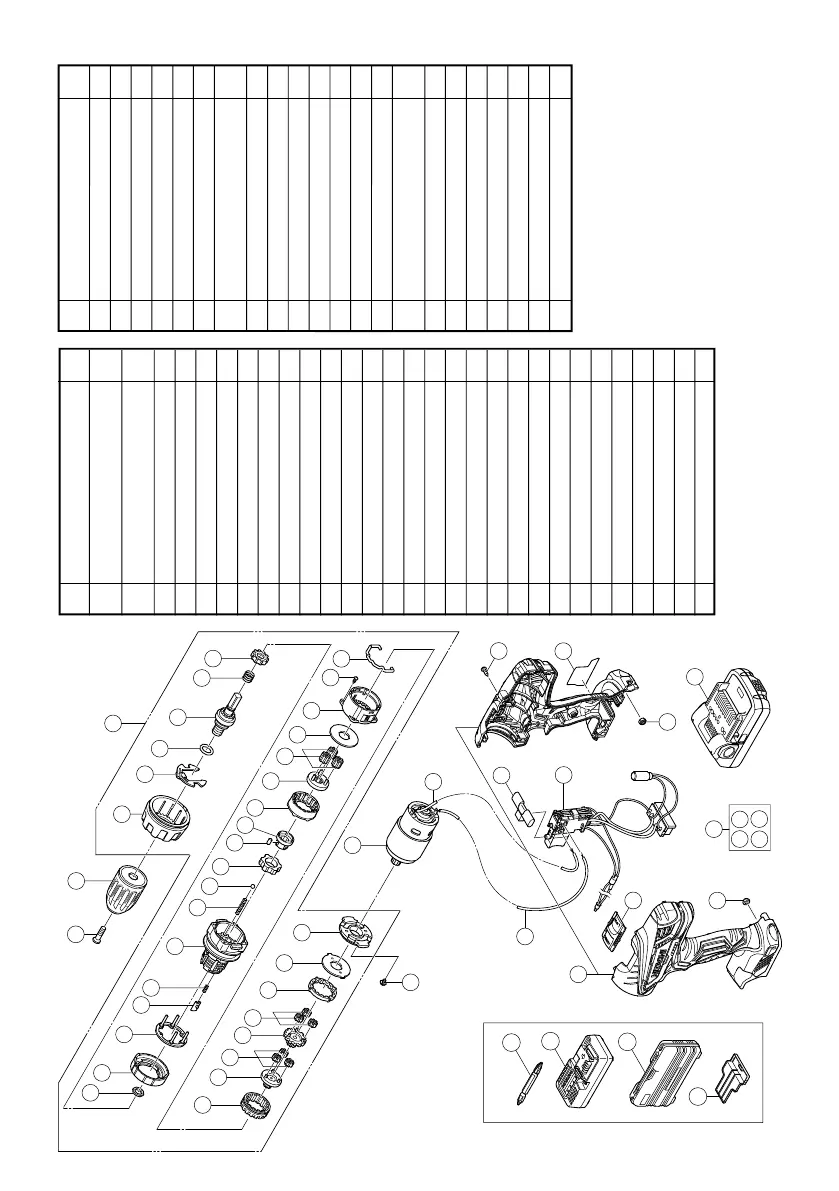

Hitachi DV 18DGL - Parts List; Liste des Pieces; Lista de Piezas

55
49
38
35
44
42
22
21
501
502
1
2
4
5
6
7
8
9
10
11
12
13
14
15
16
17
23
24
25
26
27
31
3
32
33
28
29
30
34
36
505
30
504
42
46
43
44
41
48
41
47
35
39
40
38
18
19
20
Item
No.
Part Name Q’TY
30 PLANET GEAR (A) SET 1
31 PINION (B) 1
32 FIRST RING GEAR 1
33 WASHER (B) 1
34 MOTOR SPACER 1
35 MOTOR DC 18V 1
36
MACHINE SCREW
(W/SP.WASHER) M4×6
2
38 INTERNAL WIRE (BLACK) 130L 1
39 HOUSING (A). (B) SET 1
40 SHIFT KNOB 1
41 LOCK NUT M4 2
42 INTERNAL WIRE (RED) 140L 1
43 PUSHING BUTTON 1
44 SWITCH TERMINAL SET 1
46
TAPPING SCREW
(W/FLANGE) D3×16
9
47 NAME PLATE 1
48 BATTERY BSL1815S 2
49
WIRING SET (INCLUD.35, 38, 42, 44)
1
501 + DRIVER BIT NO.2 65L 1
502 CHARGER (MODEL UC18YKSL) 1
504 CASE 1
505 BATTERY COVER 1
Item
No.
Part Name Q’TY
1
SPECIAL SCREW
(LEFT HAND) M6×23
1
2
DRILL CHUCK 13VLRV-N
(W/O CHUCK WRENCH) 1
3 GEAR BOX ASS'Y (INCLUD.4-34) 1
4 CLUTCH DIAL 1
5 CLICK SPRING 1
6 O-RING 1
7 SPINDLE 1
8 SPRING (C) 1
9 RATCHET (B) 1
10 WASHER (A) 1
11 NUT 1
12 WASHER 1
13 SLIP BLOCK 2
14 STOPPER SPRING 2
15 FRONT CASE 1
16 SPRING (A) 4
17 STEEL BALL D5 4
18 LOCK RING 1
19 NEEDLE ROLLER SET 1
20 SLEEVE 1
21 RING GEAR 1
22 CARRIER 1
23 PLANET GEAR (C) SET 1
24 WASHER (A) 1
25 REAR CASE 1
26 SCREW SET D3×12 1
27 SHIFT ARM 1
28 SLIDE RING GEAR 1
29 PINION (C) 1
