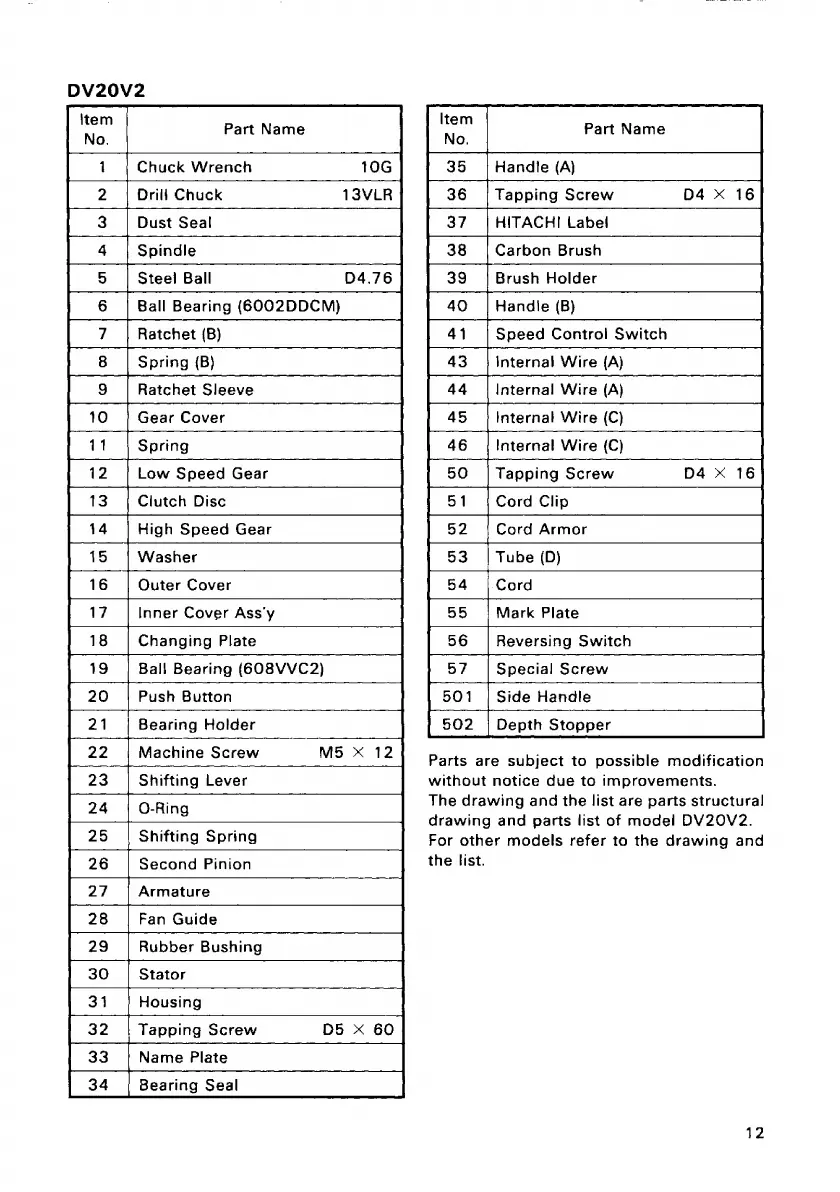

DV20V2
Item
No.
Part Name
1
Chuck Wrench 10G
2 Drill Chuck 13VLR
3
Dust Seal
4
Spindle
5
Steel Ball D4.76
6 Ball Bearing (6002DDCM)
7 Ratchet (B)
8 Spring (B)
9
Ratchet Sleeve
10 Gear Cover
m
Spring
wm
Low Speed Gear
13
Clutch Disc
14
High Speed Gear
15 Washer
16 Outer Cover
17
Inner Cover Assy
18 Changing Plate
19 Ball Bearing (608VVC2)
20 Push Button
21 Bearing Holder
22 Machine Screw M5 X 12
23 Shifting Lever
24 0-Ring
25 Shifting Spring
26 Second Pinion
27
Armature
28
Fan Guide
29
Rubber Bushing
30 Stator
31 Housing
32 Tapping Screw D5 X 60
33
Name Plate
34
Bearing Seal
Item
No.
Part Name
35
Handle (A)
36 Tapping Screw D4 X 16
37 HITACHI Label
38 Carbon Brush
39
Brush Holder
40
Handle (B)
41 Speed Control Switch
43
Internal Wire (A)
44 Internal Wire (A)
45
Internal Wire (C)
46
Internal Wire (C)
50 Tapping Screw D4 X 16
51
Cord Clip
52
Cord Armor
53
Tube(D)
54
Cord
55
Mark Plate
56 Reversing Switch
57 Special Screw
501
Side Handle
502 Depth Stopper
Parts are subject to possible modification
without notice due to improvements.
The drawing and the list are parts structural
drawing and parts list of model DV20V2.
For other models refer to the drawing and
the list.
12
