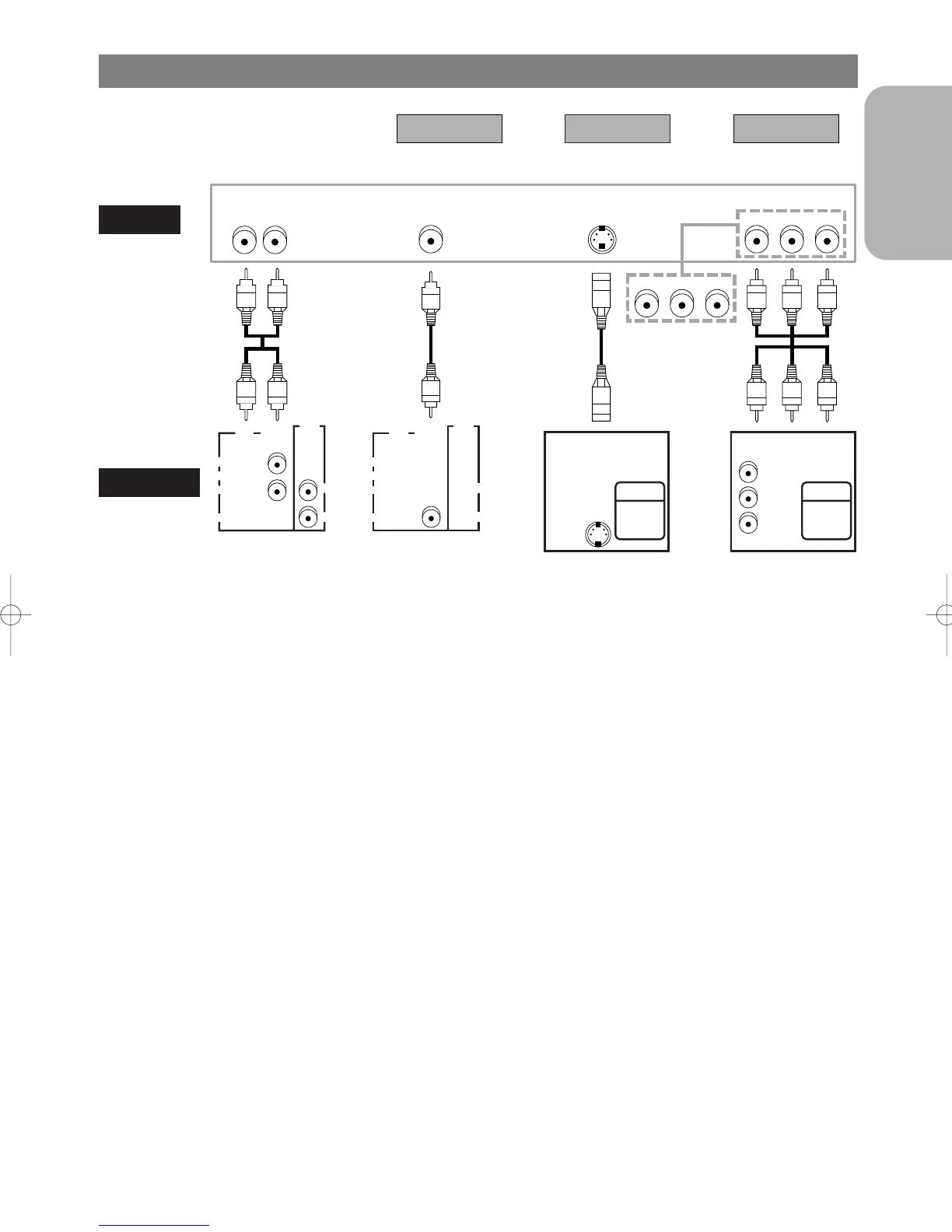

CONNECTION TO A TV (FOR VIDEO)
Analog Audio out Video out
• Method 1 DVD/VCR + TV with Video Input Jack
• Method 2 DVD/VCR + TV with S-Video Input Jack
• Method 3 DVD/VCR + TV with Component Video Jacks
CBYCR
RL S-VIDEO IN
COMPONENT
VIDEO IN
VIDEO IN
or or
or
PBYPR
DVD/VCR
OUT
VCR
IN
AUDIO
OUT
DVD
DVD
COMPONENT
VIDEO OUT
L
L
Y
COAXIAL
S-VIDEO
OUT
DIGITAL
AUDIO OUT
R
R
AUDO
VIDEO
DVD/VCR
OUT
VCR
IN
AUDIO
OUT
DVD
L
L
R
R
AUDO
VIDEO
DVD
COMPONENT
VIDEO OUT
Y
C
R
COAXIAL
S-VIDEO
OUT
DIGITAL
AUDIO OUT
C B
C R
C B
TV
Method 1
Good pictureBasic Audio
Method 2 Method 3
Better picture Best picture
S-Video out Component Video out
AV Cable S-Video
Cable
Video
Cables
Notes
¡Connect the DVD/VCR directly to a TV. If the A/V cables are connected to a VCR, pictures may be
distorted due to the copy protection system.
