Hitachi FM 8 - Page 2

Part Name
Item
No.
Part Name
Item
No.
Parts are subject to possible modifica-
tion without notice due to improve-
ments.

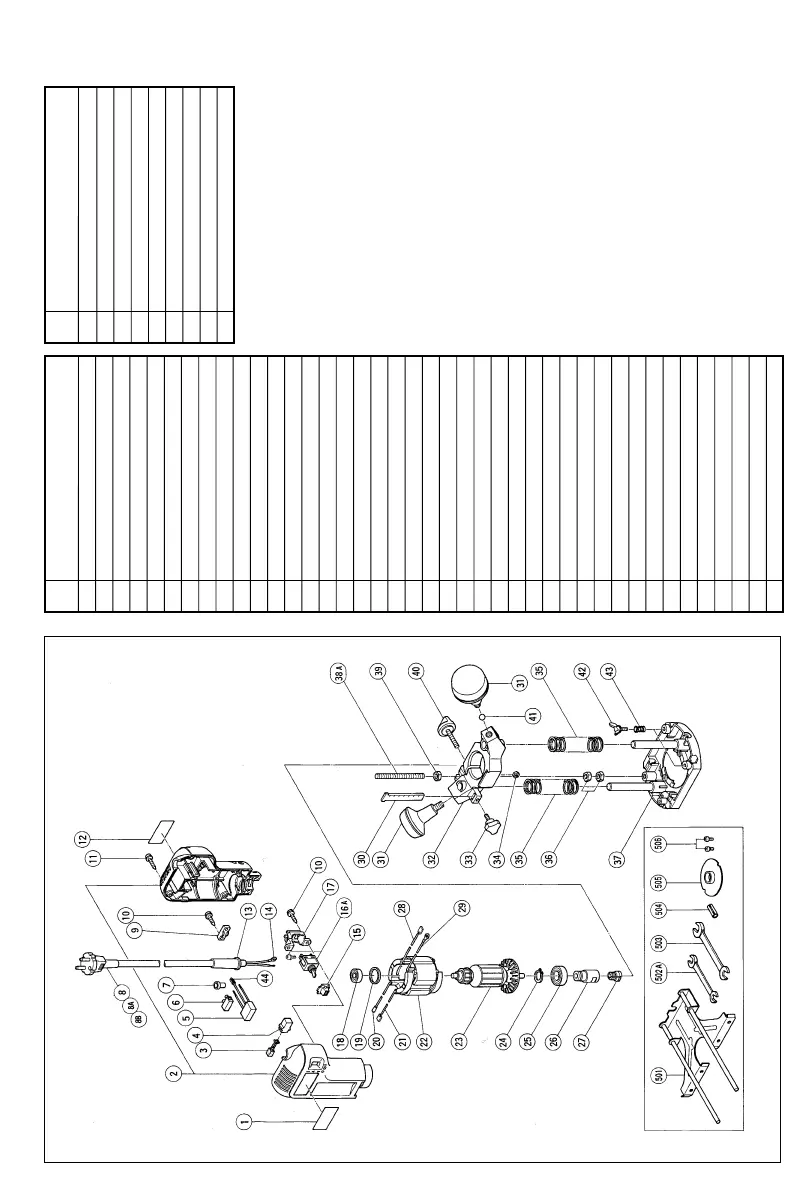

The exploded assembly drawing should be used only for authorized service center.
1 HITACHI Label
2 Housing
3 Carbon Brush
4 Brush Holder
5 Noise Suppressor
6 Pillar Terminal
7 Connector (50091)
8 Cord
9 Cord Clip
10
Tapping Screw(W/Flange) D4 × !6
11
Tapping Screw(W/Washer) D4
×
20
12 Name Plate
13 Cord Armor
14 Terminal (A)
15 Switch Knob
16A Switch
17 Switch Holder
18 Ball Bearing (608VVMC2EPS2L)
19 Rubber Ring
20 Internal Wire
21 Internal Wire (A)
22 Stator
23 Armature
24 Retaining Ring For D15 Shaft
25 Ball Bearing (6002VVCMPS2S)
26 Spindle
27 Collet
28 Internal Wire (A)
29 Internal Wire (A)
30 Scale
31 Knob
32 Holder
33 Knob Screw M5
34 Nut M6
35 Spring
36 Nut M8
37 Base
38A Screw M8
×
100
39 Look Nut M8
40 Knob Bolt
41 Steel Ball D7.94
42 Wing Bolt M6
×
15
43 Lock Spring
44 Earth Terminal
501 Parallel Guide
502A
Wrench 10/13mm
503 Wrench 13/17mm
504 Chuck Sleeve
505 Template Guide D18
506 Machine Screw M5
×
6
