S-VIDEO OUTPUT SOCKETS

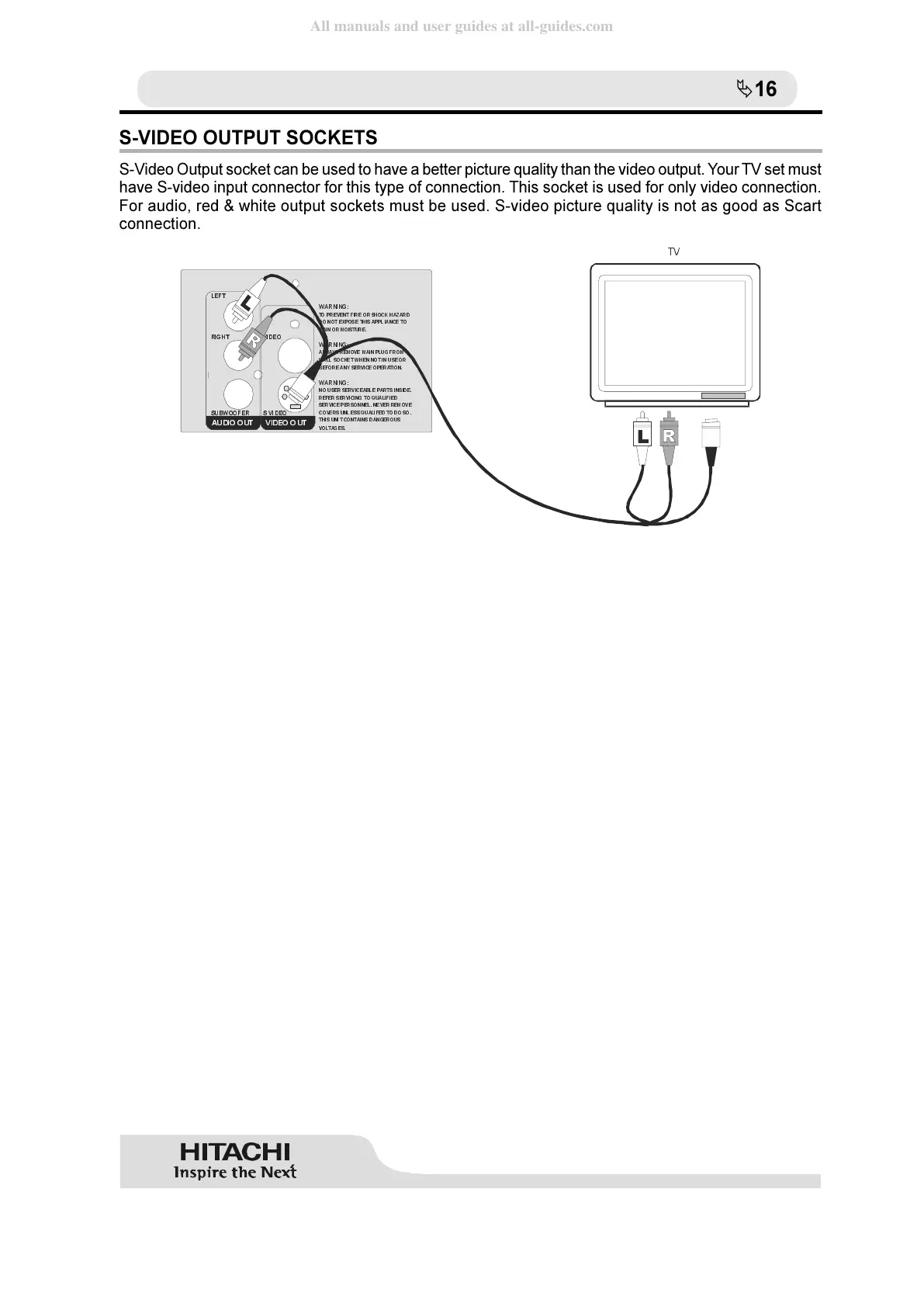

S-Video Output socket can be used to have a better picture quality than the video output. Your TV set must
have S-video input connector for this type of connection. This socket is used for only video connection.
For audio, red & white output sockets must be used. S-video picture quality is not as good as Scart
connection.
