BEST SPEAKER CONNECTION OF YOUR ROOM

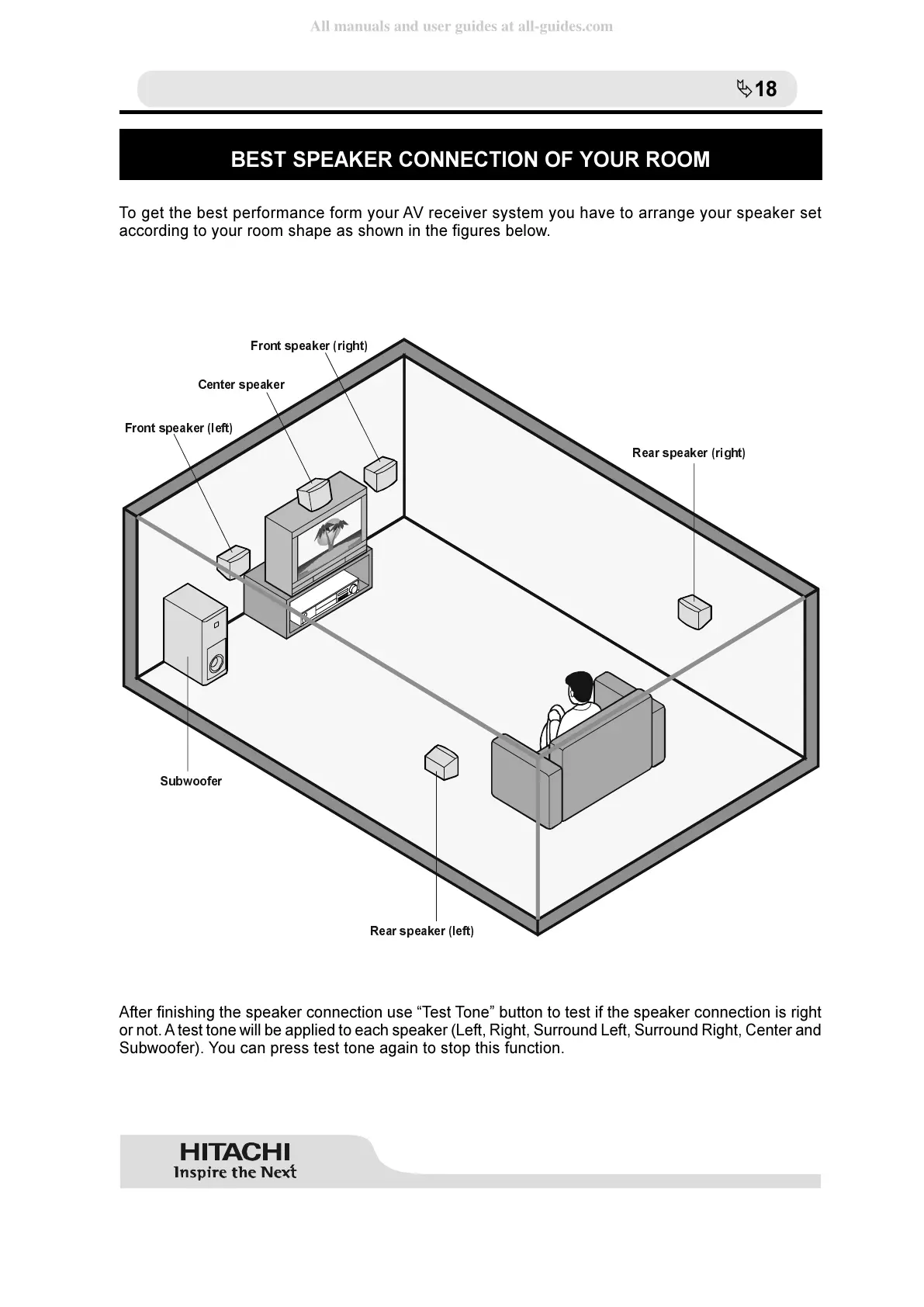

To get the best performance form your AV receiver system you have to arrange your speaker set
according to your room shape as shown in the figures below.
&HQWHUVSHDNHU
5HDUVSHDNHUULJKW
5HDUVSHDNHUOHIW
6XEZRRIHU
)URQWVSHDNHUOHIW
)URQWVSHDNHUULJKW
After finishing the speaker connection use Test Tone button to test if the speaker connection is right
or not. A test tone will be applied to each speaker (Left, Right, Surround Left, Surround Right, Center and
Subwoofer). You can press test tone again to stop this function.
