- 7 -

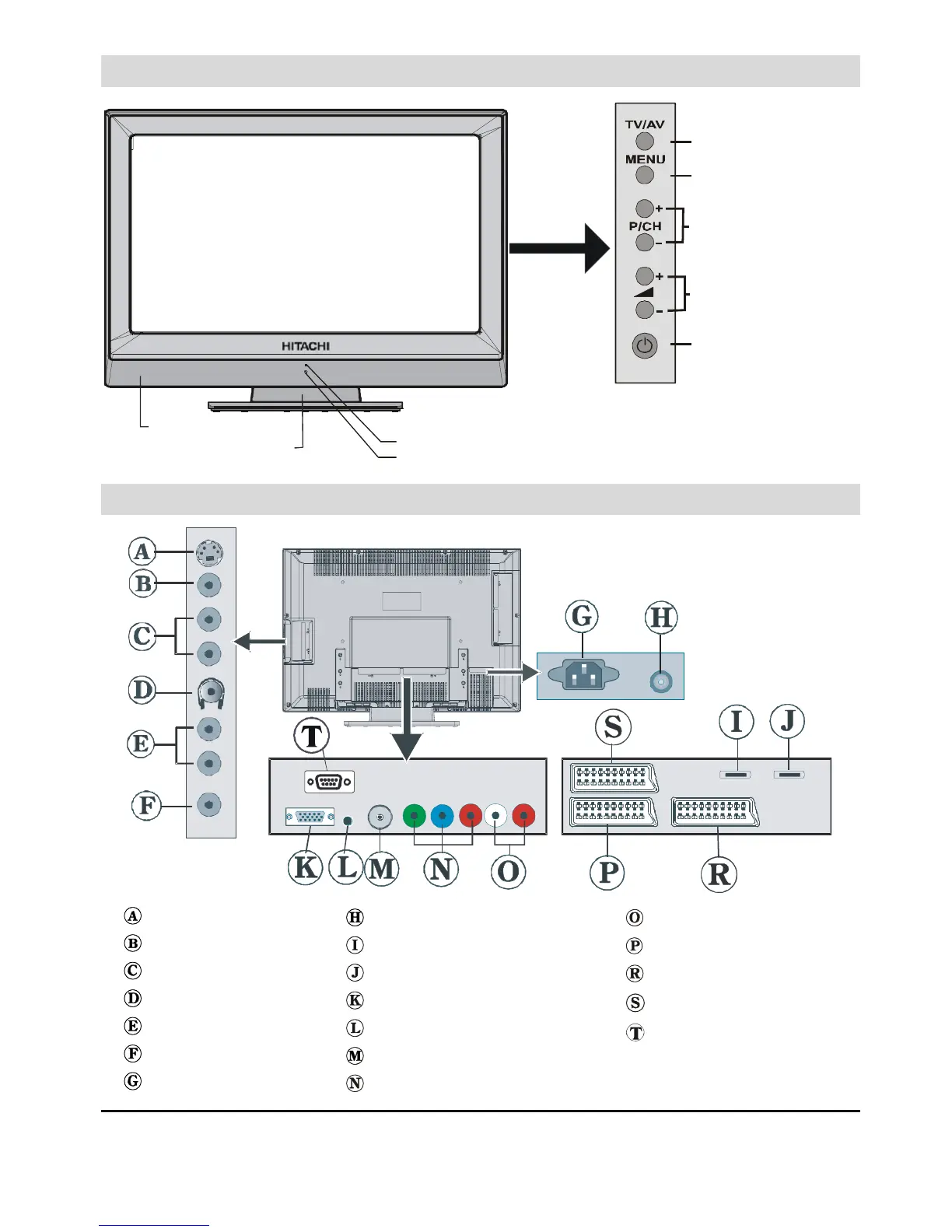

LCD TV Front View
Rear View and Peripheral Connections
SOURCE SELECT
MENU BUTTON
PROGRAMME UP/DOWN
VOLUME UP/DOWN
STANDBY BUTTON
Standby LED
IR Receiver
Built in Speakers
Table Top StandFixed
Note: Because FAV CVBS and SVHS Y are connected parallelly, the picture may blend if the two peripherals are used at the same
time. Likewise, because SVHS C and SCART II R are connected parallelly, the picture may blend if the two peripherals are used
at the same time. Thus these two are not to be used at the same time.
FRONT VIEW
S-VHS Input (S-Video)
Video Input (FAV)
Audio Inputss
Headphone
Audio Line Outss
Subwoofer Output
Power Cord Input
Power On/Off Switch
HDMI Input 2 (HDMI 2)
HDMI Input 1 (HDMI 1)
PC VGA Input (PC RGB)
PC Audio Input
RF (TV/DTT)
Component Video Inputs (YPbPr)
Component Audio Inputss
SCART 1 (AV-1)
SCART 2 (AV-2)
SCART 3 (AV-3)
For Service Use Only
