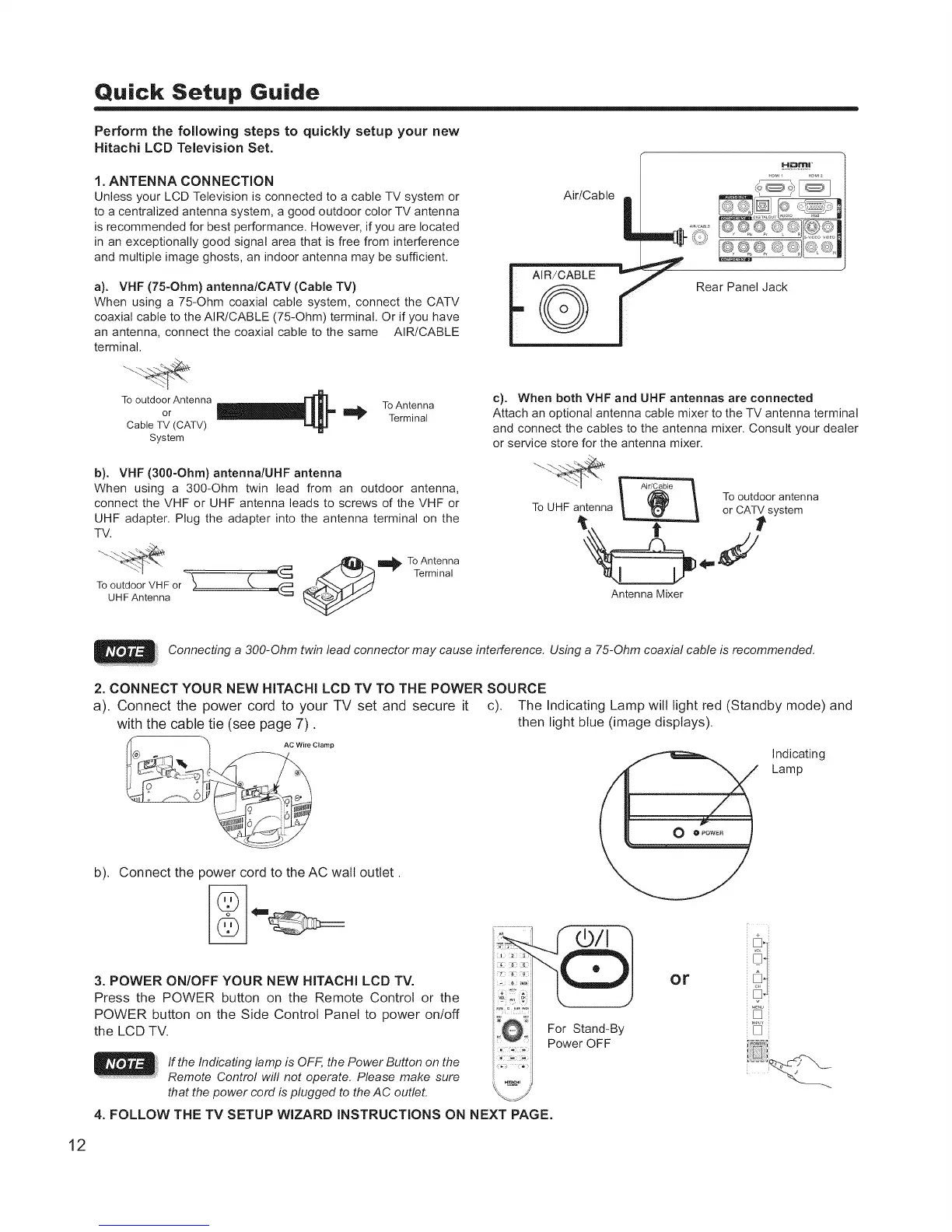

Quick Setup Guide
Perform the following steps to quickly setup your new
Hitachi LCD Television Set.
1. ANTENNA CONNECTION
Unless your LCD Television is connected to a cable TV system or
to a centralized antenna system, a good outdoor color TV antenna
is recommended for best performance. However, if you are located
in an exceptionally good signal area that is free from interference
and multiple image ghosts, an indoor antenna may be sufficient.
a). VHF (75-Ohm) antenna/CATV (Cable TV)
When using a 75-Ohm coaxial cable system, connect the CATV
coaxial cable to the AIR/CABLE (75-Ohm) terminal. Or if you have
an antenna, connect the coaxial cable to the same AIR/CABLE
terminal.
To outdoor Antenna
To Antenna
or Terminal
Cable TV (CATV)
System
b). VHF (300-Ohm) antenna/UHF antenna
When using a 300-Ohm twin lead from an outdoor antenna,
connect the VHF or UHF antenna leads to screws of the VHF or
UHF adapter. Plug the adapter into the antenna terminal on the
TV.
_'_ ,_ml_ TOAntenna
_-_ (, "_ TerminalTooutdoor VHF or .
UHFAntenna
Air/Cable
AIR/CABLE
©
Rear Panel Jack
c). When both VHF and UHF antennas are connected
Attach an optional antenna cable mixer to the TV antenna terminal
and connect the cables to the antenna mixer. Consult your dealer
or service store for the antenna mixer.
_'-__ _ To outdoor antenna
To UHF antenna _ _ _ or CATV system
t
Antenna Mixer
Connecting a 300-Ohm twin lead connector may cause interference. Using a 75-Ohm coaxial cable is recommended.
2. CONNECT YOUR NEW HITACHI LCD TV TO THE POWER SOURCE
a). Connect the power cord to your TV set and secure it c). The Indicating Lamp wilt light red (Standby mode) and
with the cable tie (see page 7). then light blue (image displays).
_ AC Wire Clamp ,n ,oat,n0
_E_ O @ PowEa
b). Connect the power cord to the AC wall outlet.
3. POWER ON/OFF YOUR NEW HITACHi LCD TV.
Press the POWER button on the Remote Control or the
POWER button on the Side Control Panel to power on/off
the LCD TV.
Or
For Stand-By '_'
Power OFF
If the Indicating lamp is OFF, the Power Button on the
Remote Control will not operate. Please make sure
that the power cord is plugged to the AC outleL
4. FOLLOW THE TV SETUP WIZARD iNSTRUCTIONS ON NEXT PAGE.
12
To Next Page
