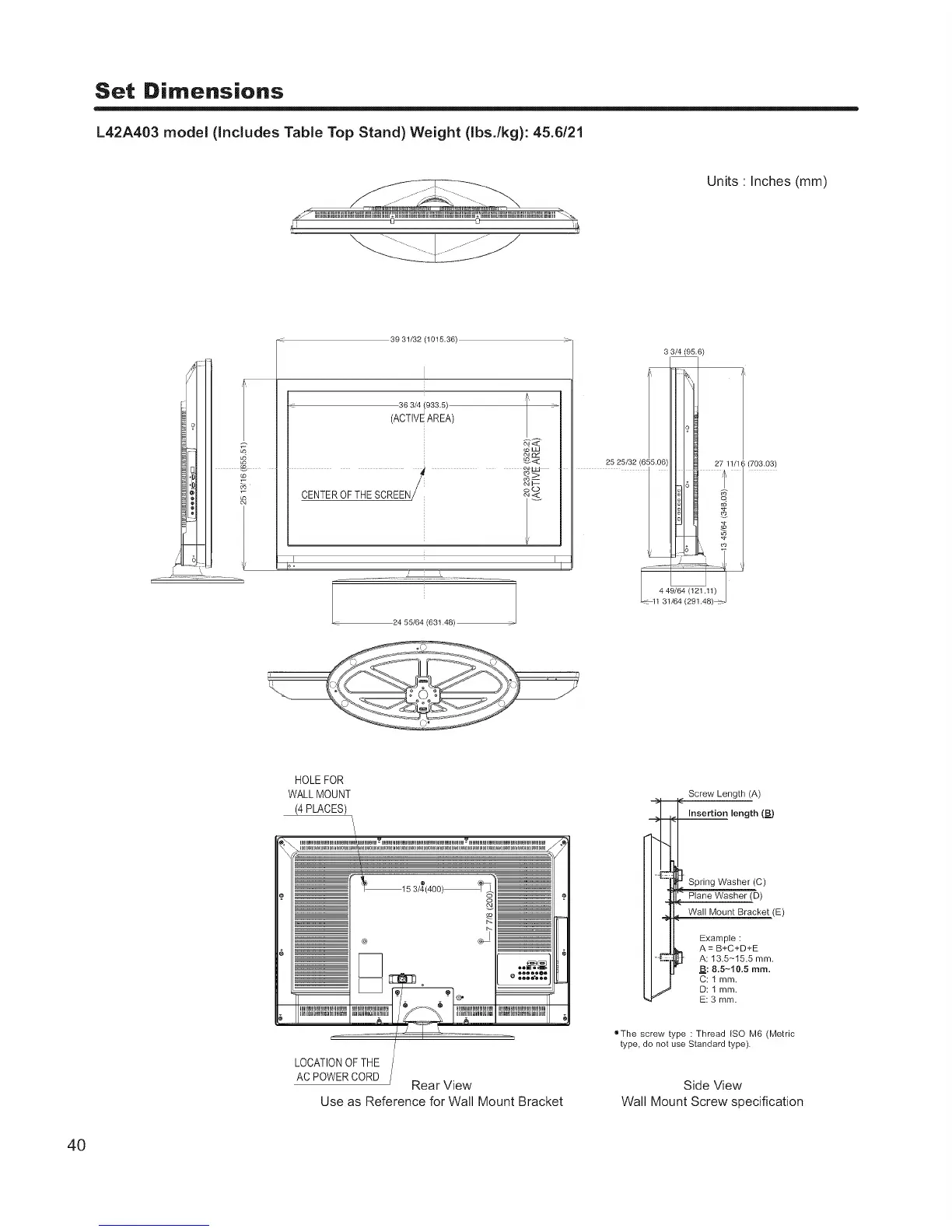

Set Dimensions
L42A403 model (Includes Table Top Stand) Weight (IbsJkg): 45.6/21
Units 'Inches (mm)
B
39 31/32 (1015.36)
36 3/4 (933.5) :::_
(ACTIVE AREA)
_,,<,
CE,TERO
I 24 55/64 (631.48)
3 3/4 (95.6)
J 114__9//66/(21__1.414L
1/ _(703.03)
HOLEFOR
WALLMOUNT
(4PLACES)
LOCATIONOFTHE
ACPOWERCORD
Rear View
Use as Reference for Wall Mount Bracket
Screw Length (A)
Insertion length (BJ
Spring Washer (C)
Plane Washer (D)
Wall Mount Bracket (E)
Example :
A = B+C+D+E
A: 13.5-15.5 mm.
B: 8.5-10.5 mm.
C: 1 mm.
D: 1 mm.
E: 3 mm.
=The screw type : Thread ISO M6 (Metric
type, do not use Standard type).
Side View
Wall Mount Screw specification
