OPERATION
NOTE: The information contained in this Manual is designed to assist you in the safe operation of the Nailer.
Some illustrations in this Manual may show details or attachments that diff er from those on your own Nailer.

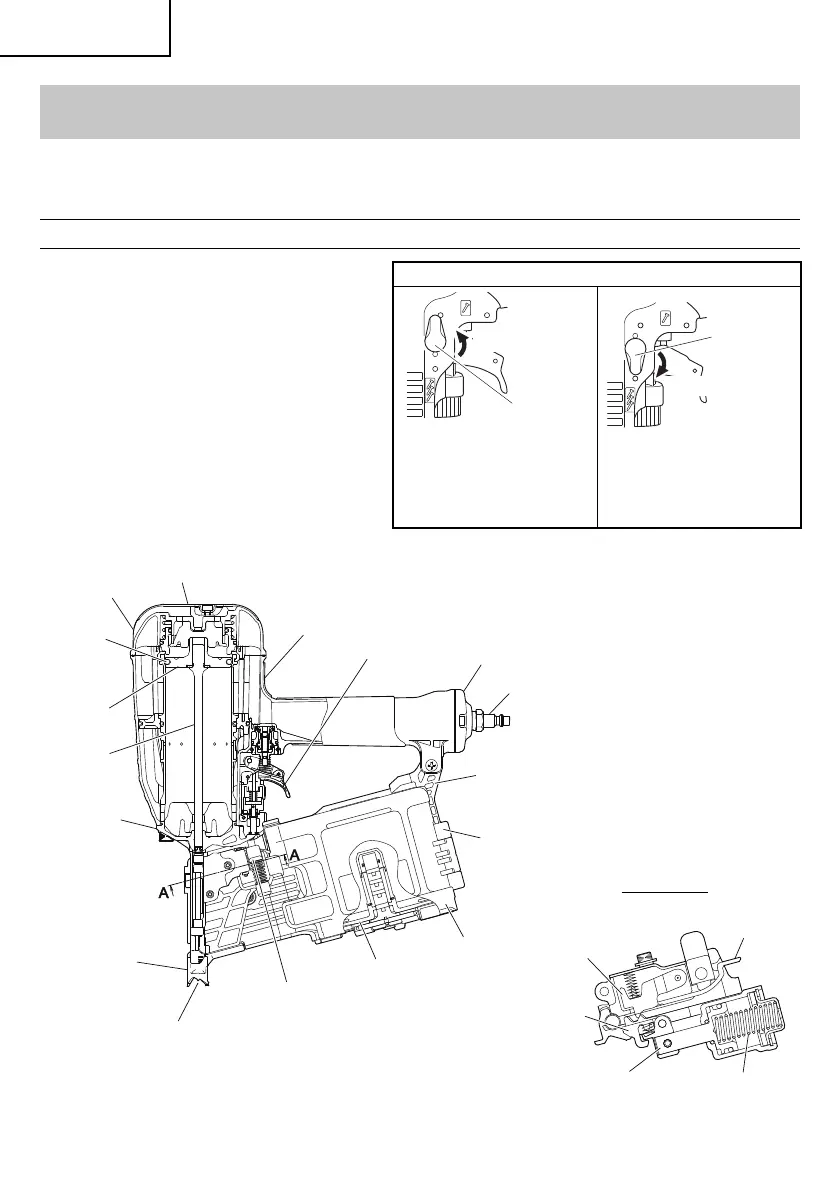

NAME OF PARTS
Nailing operation switching device
Switching
Device
Upward position
Switching
Device
Downward position
SINGLE SEQUENTIAL
ACTUATION MECHANISM
(Switching device:
upward position)
CONTACT ACTUATION
MECHANISM
(Switching device:
downward position)
Nose
Piston
Piston
O-ring
Exhaust
Cover
Driver
Blade
Nail Stopper
Outlet (Firing Head)
Body
Trigger
Cap
Magazine
Cover
Nail Holder
Magazine Assembly
Air Plug
Head Guard
Knob
Push Lever
Magazine
Section A – A
Nail Guide
Feeder
Feed Piston
Feed Spring
