SM016

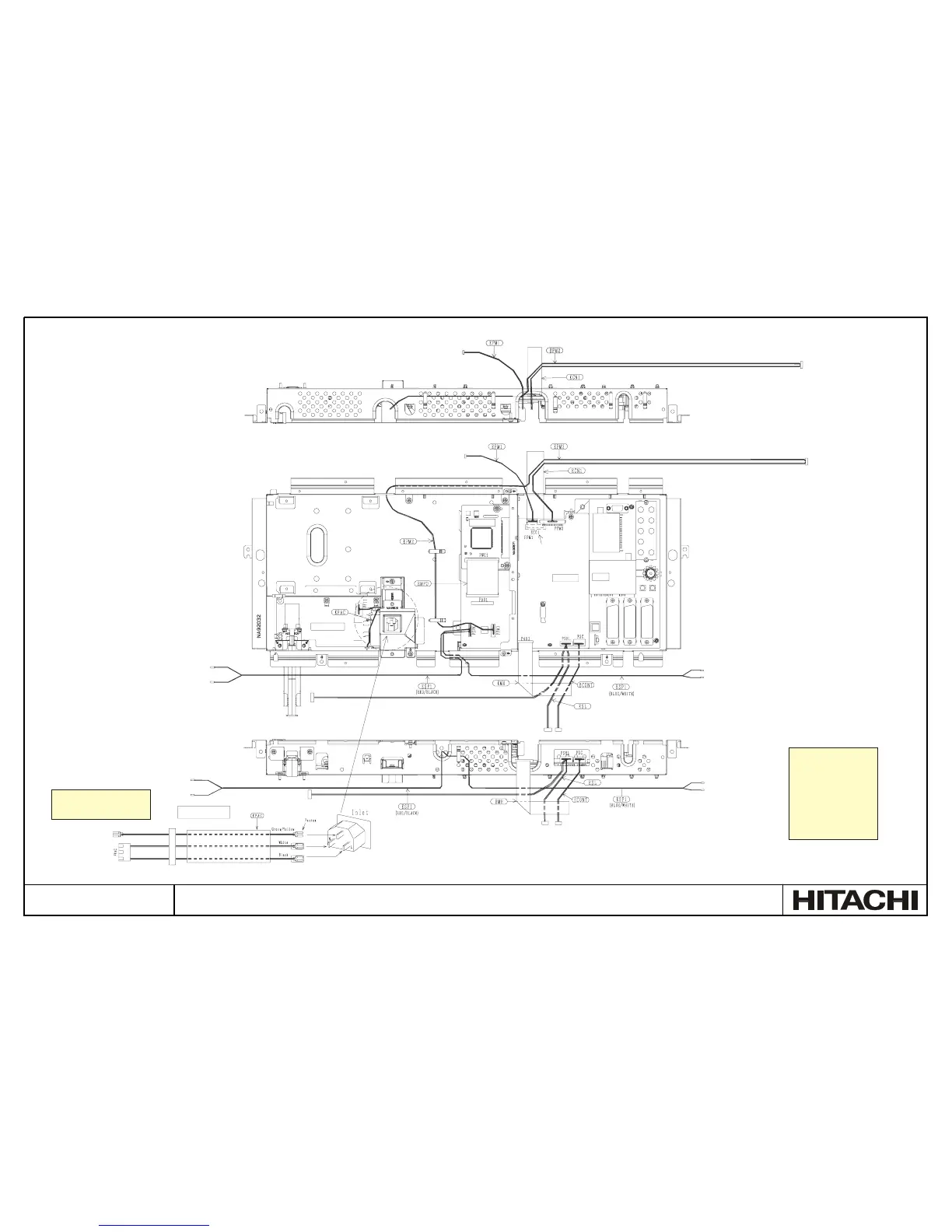

WIRING DIAGRAM - 2
NOTES:
1. This drawing shows connection
and wire styling.
2. This drawing shows the rear
view of the set.
3. Securely lock the lead holder
in place.
4. Cores and SK binders with ( )
round brackets should be
delivered integrated with
harness.
EFAC Preparation:
Secureyl insert Faston of EFAC in the
terminal of the inlet as follows:
Insert ECN1 (LVDS Cable)
in MAIN Board, EC01 first.
Main Board
Slot Board
Filter Board
To L ED B oa rd
To L ED B oa rd
To S P
To S P
To Po we r Uni t
To Po we r Uni t
To Po we r Uni t
To Po we r Uni t
To S P
To SP
To Control Board
To Control Board
PS Process
To Panel
To Panel
33
(For P42T01U, P42T01E, P42TP01U and P42TP01E)
P42T01U/E P42TP01U/E
To Next Page
