Note : MICRO-EH supports above 2 timers only.
Note : EH-150 supports Mono-stable timer “MS”, integral timer “TMR” and Watch dog timer “WDT”
besides above ones.

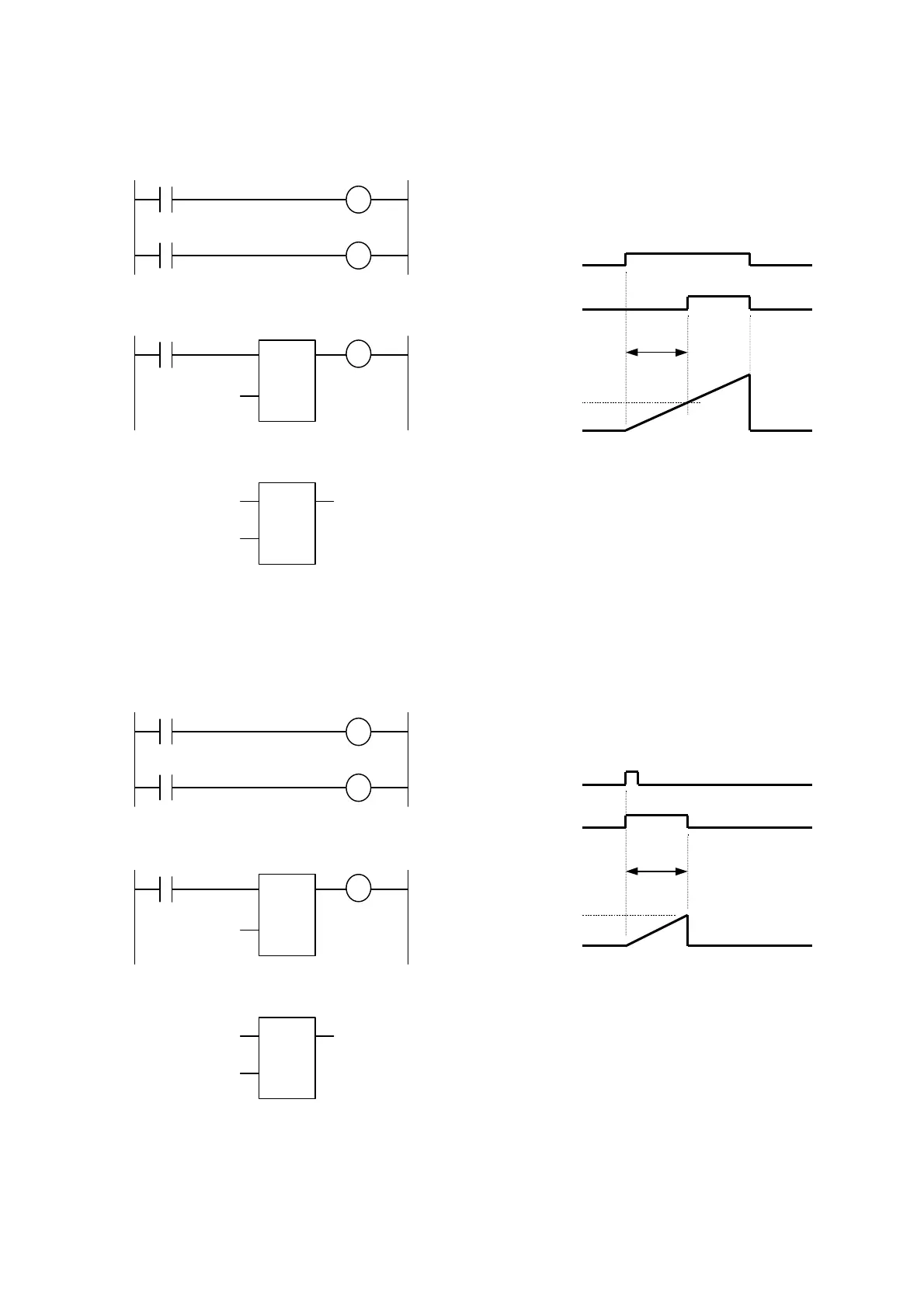

ON delay timer : TD
X0 TD 0
TD 0 Y100
12
0.1s
X0
12
TD 0
0.1s
Y100
n
Pro-H (LD)
n
LADDER EDITOR
TD 0
0.1s
Y100
12
X0
n
Pro-H (FBD)
X0
TD 0
Y100
1.2s
TC 0
12
* TC is a word data counting 0 up to 65,535.
Single Shot timer : SS
X0 SS 0
TD 0 Y100
12
0.1s
n
LADDER EDITOR
X0
12
SS 0
0.1s
Y100
n
Pro-H (LD)
SS 0
0.1s
Y100
12
X0
n
Pro-H (FBD)
X0
TD 0
Y100
1.2s
TC 0
12
* TC is a word data counting 0 up to 65,535.
