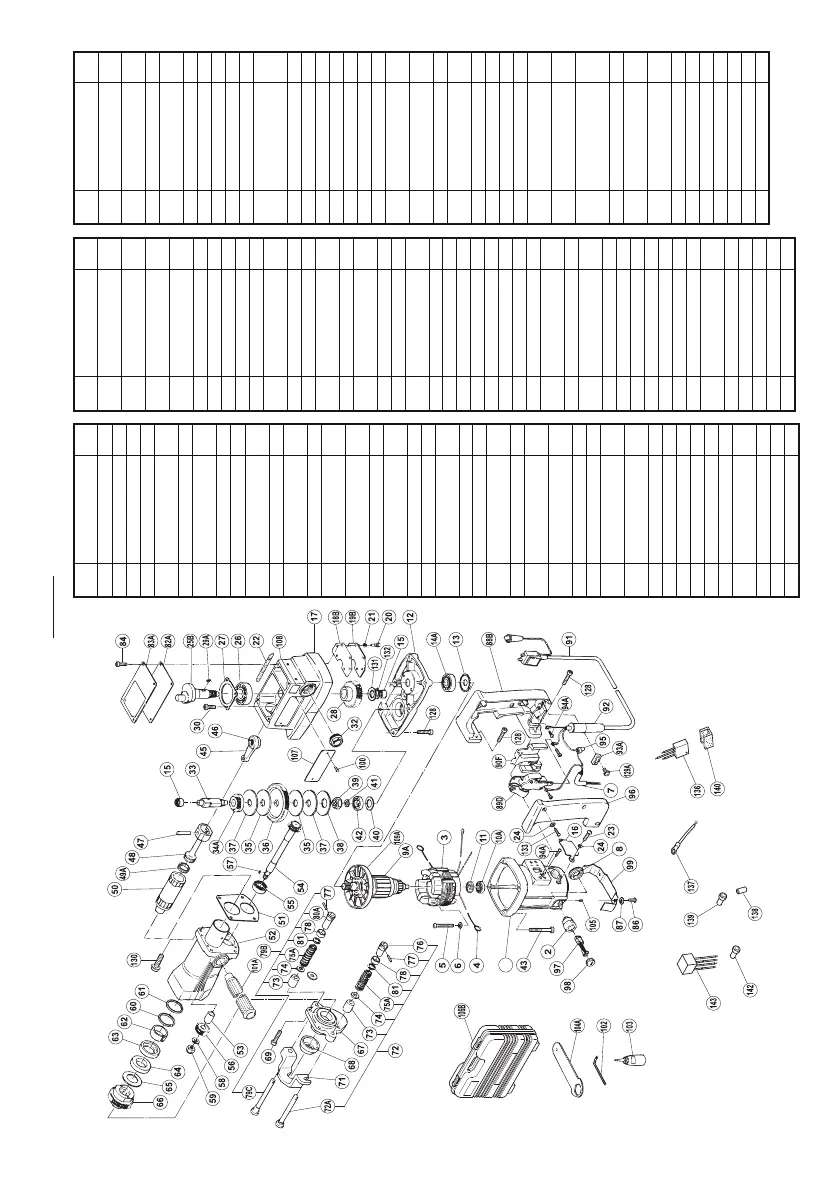

Hitachi PR-38E - PR-38 E Parts Breakdown

29
PR-38E
Item
No.
Part Name Q’ty
1A HOUSING ASS'Y 1
2 BRUSH HOLDER 2 3 STATOR ASS'Y 1 4 BRUSH TERMINAL 2 5
MACHINE SCREW M5
×
55
2
6
SPRING WASHER M5
2
7
VINYL TUBE (I.D.9×T0.5×65)
1
8 STOP PLATE 2
9A ARMATURE ASS'Y 1
10A
BALL BEARING 6000DDWCMNS7L
1
11 DUST SEAL 1 12
GEAR COVER ASS'Y
1
13 DUST SEAL 1
14A
BALL BEARING 6202DDWCMNS7L
1
15
NEEDLE BEARING (M661)
2
16 SIDE COVER 1 17
CRANK CASE ASS'Y
1
18B COVER SEAL (B) 1 19B COVER PLATE (B) 1
20
MACHINE SCREW M4
×
12
6
21
SPRING WASHER M4
6
22 OIL FELT 1 23
MACHINE SCREW M4
×
12
7
24
SPRING WASHER M4
5
25B
CRANK SHAFT ASS'Y
1
26
BALL BEARING 6204DDCMPS2L
1
27
BEARING COVER (B)
1
28 FIRST GEAR 1
29A
FEATHER KEY 3×3×12
1
30
HEX. SOCKET HD. BOLT M5
×
16
4
32 OIL GAUGE 1 33 SECOND SHAFT 1
34A BEVEL GEAR 1
35 CLUTCH PLATE 2 36 SECOND GEAR 1 37 SLIP PLATE (B) 2 38
BELLEVILLE SPRING
1
39 U-NUT M12 1 40
BEARING WASHER (C)
1
41
BEARING WASHER (B)
1
Item
No.
Part Name Q’ty
42
BALL BEARING 629VVC2PS2L
1
43
HEX. SOCKET HD. BOLT M6
×
45
4
45
CONNECTING ROD ASS'Y
1
46
NEEDLE BEARING (NSK AJ50 1203)
1
47 PISTON PIN 1 48 PISTON 1
49A X-RING 1
50 STRIKER 1 51 SEAL PACKING 1 52
CYLINDER CASE ASS'Y
1
53 METAL D12
×
20 1
54 DRIVE SHAFT 1 55
BALL BEARING 6001VVCMPS2L
1
56 FINAL PINION 1 57
WOODRUFF KEY 3×10
1
58
SPRING WASHER M8
1
59 U-NUT M8 1 60
CYLINDER WASHER
1
61 URETHANE RING 1 62 MOUTH 1 63 MOUTH WASHER 1 64 DAMPER 1 65 BEARING WASHER 1 66 FINAL GEAR 1 67 FRONT COVER 1 68 DUST COVER 1 69
HEX. SOCKET HD. BOLT M6
×
25
4
71 RETAINER 1 72
RETAINER ROD (A) ASS'Y
1
72A RETAINER ROD (A) 1
73 DAMPER (B) 2 74 WASHER M8 2
75A SPRING 2
76 STOPPER (L) 1 77 NEEDLE ROLLER 2 78 STOPPER RING 2
79B
RETAINER ROD (B) ASS'Y
1
79C RETAINER ROD (B) 1
80A STOPPER (L) 1
81 STOPPER WASHER 2
82A COVER SEAL 1 83A COVER PLATE 1
Item
No.
Part Name Q’ty
84
HEX. SOCKET HD. BOLT M5
×
14
4
86
MACHINE SCREW M5×8
2
87
SPRING WASHER M5
2
88B
HANDLE AND HANDLE COVER SET
1
89D SWITCH (A) 1
90F SUPPORT (F) 1
91 CORD 1 92 CORD ARMOR 1
93A CORD CLIP 1 94A
MACHINE SCREW (W/SP. WASHER) M4
×
8
1
95
CONNECTOR 50092
2
96 HANDLE COVER 1 97 CARBON BRUSH 2 98 BRUSH CAP 2 99 TAIL COVER 1
100 RIVET D2.5
×
4.8 2
101A SIDE HANDLE 1
102
HEX. BAR
WRENCH 5MM
1
103
LUBRICANT OILER (120CC)
1
104A WRENCH 23MM 1
105
HEX. SOCKET SET SCREW M5
×
8
2
106B CASE (PLASTIC) 1
107
NAME PLATE
1
108
CAUTION PLATE
1
109A
FAN
1
128
HEX. SOCKET HD.
BOLT M6
×
22
6
129A
TAPPING SCREW (W/FLANGE) D4
×
16
2
130
HEX. SOCKET HD.
BOLT (W/FLANGE) M6
×
22
4
131
WASHER (A)
1
132
RETAINING RING FOR D15 SHAFT
1
133
TAPPING SCREW (W/WASHER) D4
×
25
3
136
NOISE SUPPRESSOR
1
137
INTERNAL WIRE
1
138
TUBE (D)
2
139
CONNECTOR 50091
1
140
SUPPORT (B)
1
142
CONNECTOR 50092
2
143
CHOKE COIL
1
1A
