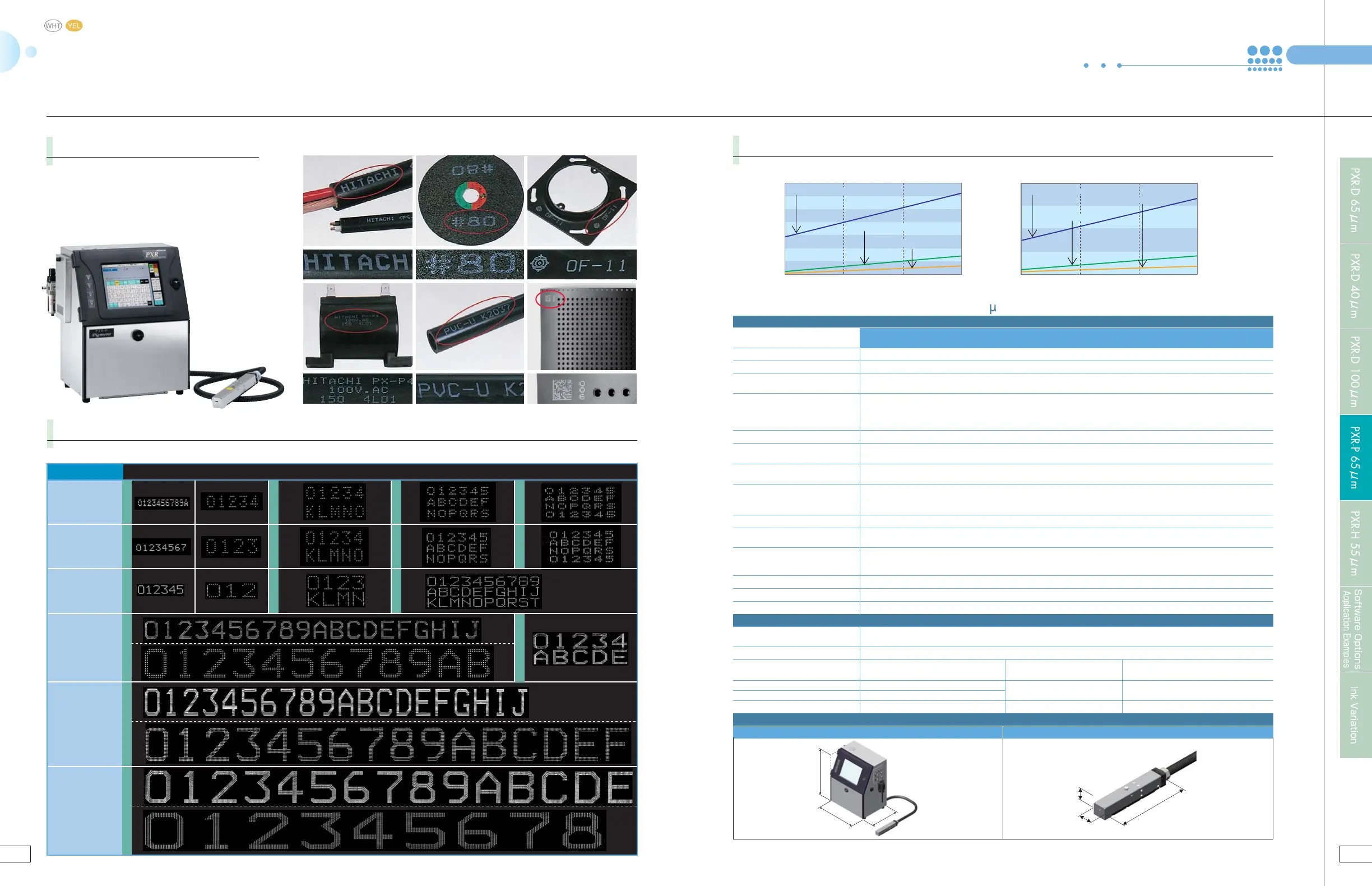

Hitachi PXR Series

PXR SERIES
PXR-P for Pigmented Ink
The model is suitable for various dark color surfaces.
9 10
Printing Samples (Full Scale)
5×5
5×7
7×10
12×16
18×24
24×32
1LINE 1LINE 1LINE 1LINE
Font
1LINE
2LINE 2LINE2LINE 3LINE 3LINE3LINE 4LINE 2LINE4LINE
Character width (mm)
Printing speed (m/min)
1.5
0
50
100
150
200
2 2.5 3
Nozzle size: 65 µm, Font 7 × 10, Ink type JP-W73
1-line,Inkdropuse1/1
3-line,Inkdropuse1/3
2-line,Inkdropuse1/2
Printing speed (m/min)
Character width (mm)
1.5
0
50
100
150
200
250
300
350
2 2.5 3
Nozzle size: 65 µm, Font 5 × 8, Ink type JP-W73
2-line,Inkdropuse1/2
3-line,Inkdropuse1/3
1-line,Inkdropuse1/1
PXR-P460W
1LINE
●
Marking Examples
Main Features
●
Whiteness and adhesion strength are improved
by newly developed white-pigmented ink.
●
New ink circulation system is sure to stir the
pigment particles.
Printing speed
Standard Specifications : Nozzle size 65 m
20.3" 515mm
15.7"
400mm
Printhead
11.411.4"
290mm290mm
11.411.4
"
290mm290mm
11.4
"
290mm
Console Printhead
*1. The print samples have been produced under ideal conditions. Print quality depends printing speed.
*2. Hitachi Industrial Equipment Systems Co.,Ltd. (Hitachi) shall not be liable for any manufacturing loss, or any product damage due to trouble or malfunction of the ink jet printer.
*3. Hitachi continually improves products. The right, therefore, is reserved to alter the design and/or specifications without giving prior notice.
Air supply
0.2 - 0.4 MPa
Standard characters
Maximum print rate
(
characters / s
)
(
Font 5 × 5, space 1, 1 line
)
Alphanumeric
(
A - Z, a - z, 0 - 9
)
, symbols
(
27
)
space : Total 90
Printing specifications
General specifications
Dimensions
Model
PXR-P460W
Nozzle size
65 µm
Character height
0.08 - 0.39 inches / 2 - 10 mm
Up to 2,083
Max. number of lines
Up to 4 Lines
Maximum number of
Characters per line
Display & input device
Display : TFT LCD
(
10.4 inch, color
)
, backlight provided Input Device : Touch panel, confirmation beep
Screen language
2 language selectable
English, Chinese, Korean, Thai, Vietnamese, German, French, Dutch, Italian, Spanish, Portuguese, Swedish, Danish,
Greek, Russian, Czech, Polish, Arabic, Serbian, Turkish, Hungarian and Bulgarian available
Dot matrix
(
Horizontal × vertical
)
1 - 4 Line : 5 × 5, 5 × 8
(
or 5 × 7
)
, 9 × 8
(
or 9 × 7
)
1
- 3 Line : 7 × 10
1
- 2 Line : 12 × 16
1 Line : 18 × 24, 24 × 32
Input signals
Print target detection, Printing stop, Reciprocative printing, Rotary encoder pulse
Output signals
Print ready, Fault, Warning, Print in progress or Print completed, Online
Serial interface
RS-232C at baud rates selectable up to 38.4 kbps
Number of logos / special
character storage
Up to 128
Print functions
Calendar, Counter, Message storage
(
150 messages), Font mixture, Passwords security,
Bar codes
(
Code 39, ITF, NW-7, EAN13 / UPC-A, Code 128 / EAN128
)
,
Data Matrix 2-D code
(
Alphabet : 49 characters, Numerals: 98 characters
)
, Encoder Function, Reciprocation printing, etc.
1.57
"
40mm
1.57 "
40mm
1 Line : Up to 240 characters
3 Line : Up to 80 characters
2 Line : Up to 120 characters
4 Line : Up to 60 characters
90"
228mm
Approval
CE, UK, cUL, C-Tick
Overall size
(
width × depth × height
)
15.7×12.4×20.3 inches
400 × 315 × 515 mm
Cabinet
Stainless Steel / IP55
Approximate weight
55 lbs / 25 kg
Operating temperature
range
32 - 104˚F / 0 - 40 ˚C
(
JP-W73 Ink
)
Power supply
(
Automatic
voltage selection
)
AC 100 - 120 / 200 - 240 V±10 %
50/60 Hz 150 VA(AC Inlet)
Print head cable length
13.1 ft / 4m
Humidity range
30 - 90 % R.H.
(
no condensation
)
Note: When humidity is more than 85 %RH, please purge inside of print head by air.
