Slide case and lower freezer case
(Lower Freezer)
When installing it, insert the pins on the left/right of the Lower freezer case into the square holes on the frame to install it.
Moreover, hitch the pins on the left/right of the Slide case to the outside of the Lower freezer case.
Draw the door fully, and draw the Slimline slide
case and the Slide case respectively.
Lift up the Lower freezer case.
● Do not remove the Slimline slide case. ● The partition of the Lower Freezer (R-SF57EM
type) can
’
t be removed.
Caution Caution
Ice Case
(Ice Compartment)
・
Upper Freezer case
(Upper Freezer)

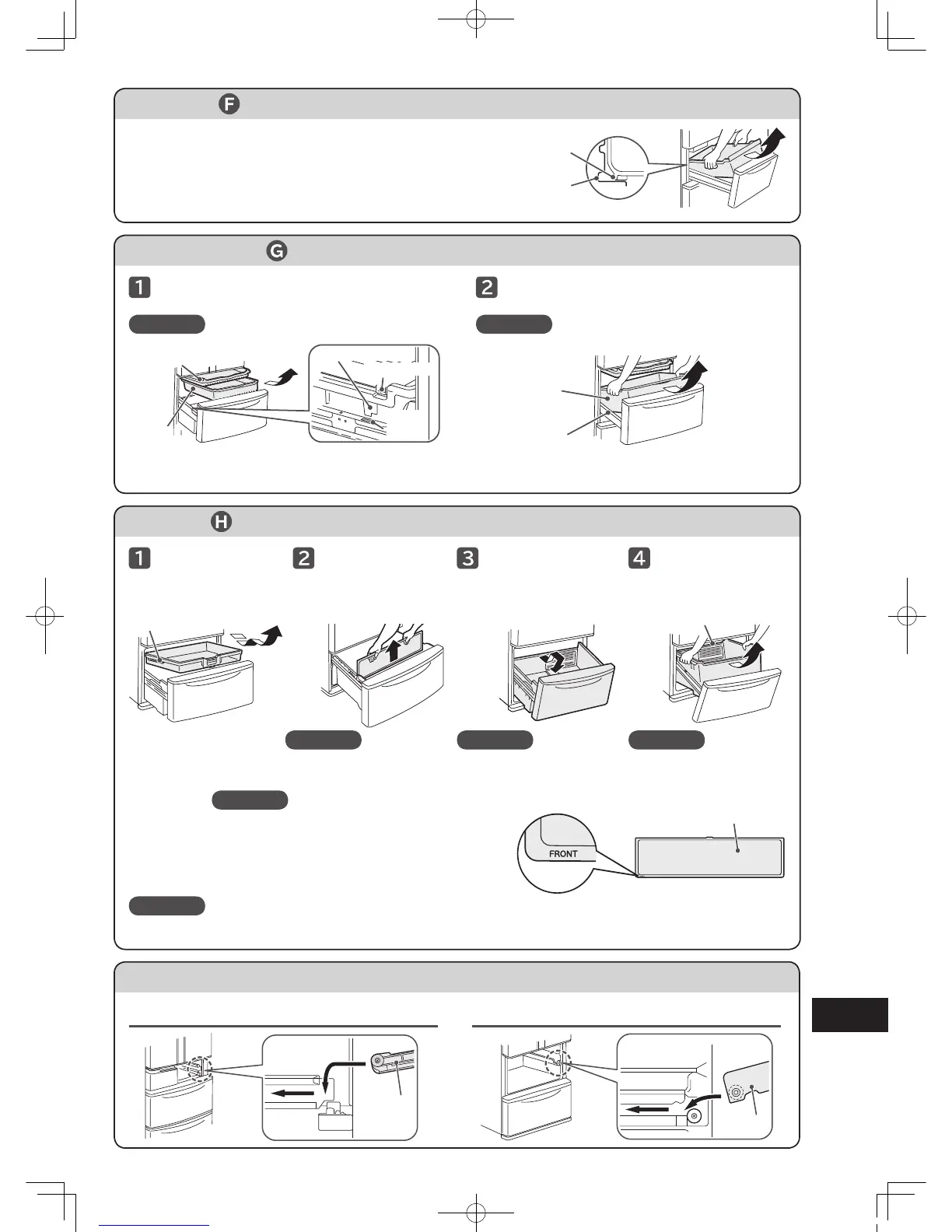

How to attach the slide door
(
Ice Compartment/Upper Freezer/Lower Freezer/Vegetable Compartment
)
Draw the door fully and lift up the case
towards you.
Put the case bottom on the frame and set the case.
Ice Compartment/Upper Freezer Lower Freezer/Vegetable Compartment
Underside of the case
Frame
Slimline slide case
Slide case
Pin (right and left)
Fork (right and left)
Rectangle
hole in the
frame
Frame
Lower freezer case
Frame
Frame
How to Remove/Attach Parts
Upper Case, Glass Partition, Lower Case
(Vegetable Compartment)
In order to install it, put the lugs on the right and left of the lower case into the square
holes on the frame, and place the fringe of the lower case on the frame to set.
When assembling the glass partition, attach it to the lower case with the characters
“
FRONT
”
in the lower side of the front end.
Upper Case
Lower Case
Draw the door fully
and pull up the Upper
Case as shown in the
figure.
Remove the glass
partition.
●
Hold the both sides of the glass
partition and lift it up just above.
Lift up the Lower Case
toward you.
Lift up both sides of
the door toward you
and draw it slowly,
and then place it on
the floor.
● Be sure to remove the glass partition before
removing the lower case.
● Do not remove the door
completely.
● The glass partition of R-SF57EM
type cannot be removed.
● Be careful. Water may
drip from the backside of
the lower case.
Request
CautionCaution Caution
● If the glass partition is not installed properly, the upper case can
’
t be locked securely, resulting in that the space for sleep
vegetables doesn
’
t work properly and that some parts including the case may be damaged.
● Do not remove the moisture unit and photocatalyst from the lower case.
Caution
Glass partition
To Next Page
