6 General dimensions
Name of parts and Dimensional data
TCGB0123 rev.2 - 10/2019
80

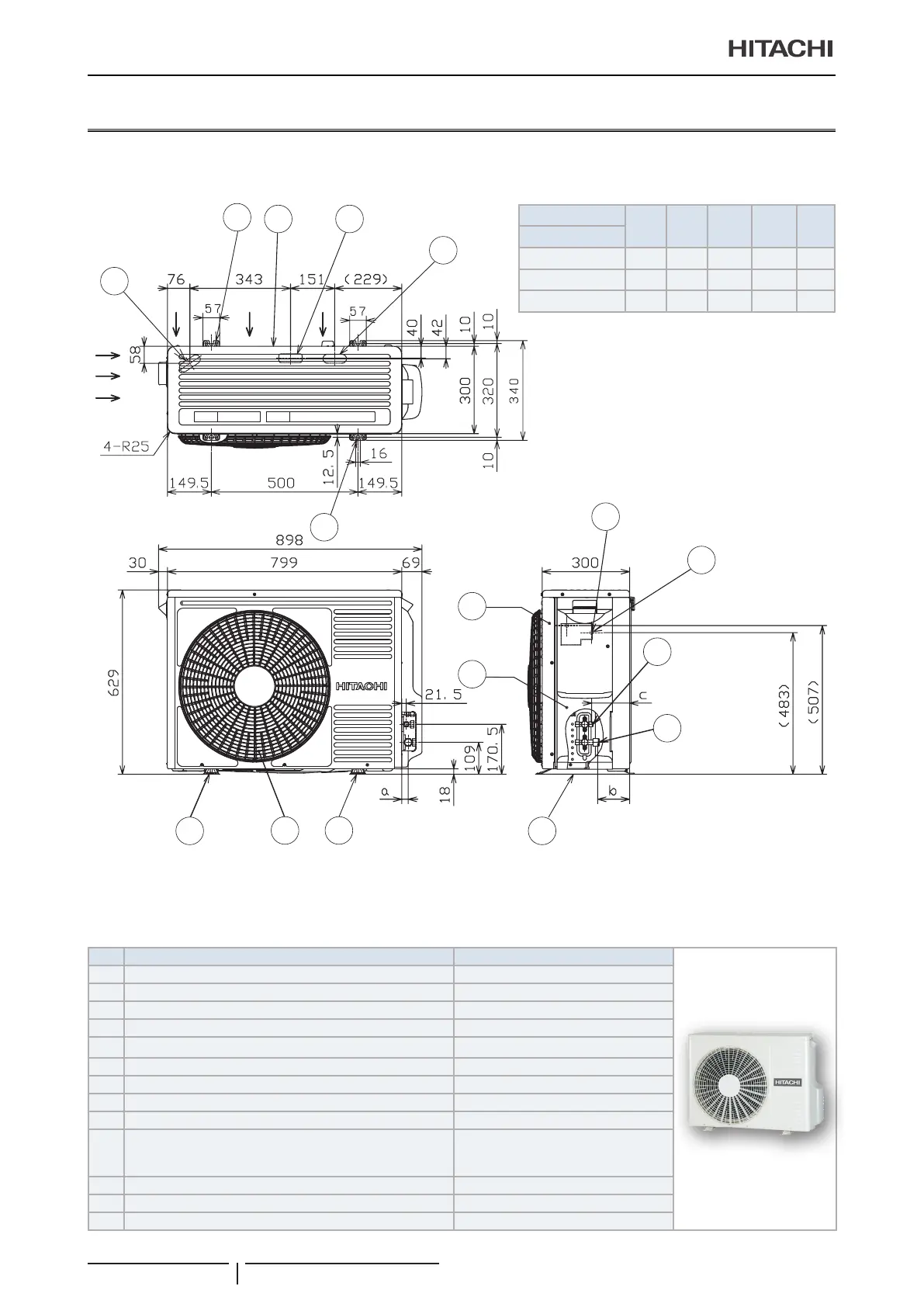

6.1 Name of parts and Dimensional data
6.1.1 Split system - Outdoor unit
RAS-(2-3)WHVRP
Dimension
a b c d e
Model
RAS-2WHVRP 22.5 109 129 12.7 6.35
RAS-2.5WHVRP 22.5 109 129 12.7 6.35
RAS-3WHVRP 26.5 103 127.5 15.88 9.52
1
3 4
1
6
7
8
6
9
10
11
12
13
6
5
*
*
Units: mm
? NOTE
The dimensions with the * mark indicate the pitch dimension of the holes for attachment of anchor bolts.
Nº Description Remarks
1 Punched drain hole for bush 30x80 long hole
2 Attachment hole for M10 anchor bolt 2-U cut hole
3 Air suction inlet —
4 Punched drain hole For drain pipe
5 Attachment hole for M10 anchor bolt 2-Long hole
6 Foot part
7 Air discharge outlet —
8 Pipe cover —
9 Service cover —
10
Terminal board for power supply and transmission
Terminal screw of power supply wire (M5)
Terminal screw of transmission wire (M4)
—
11 Terminal screw of earth wire (M5) —
12 Connection of refrigerant liquid pipe With are nut for Øe copper pipe
13 Connection of refrigerant gas pipe With are nut for Ød copper pipe
