6
Name of parts
PMML0317A rev.1 - 11/2013
PART II - INSTALLATION
10 NAME OF PARTS

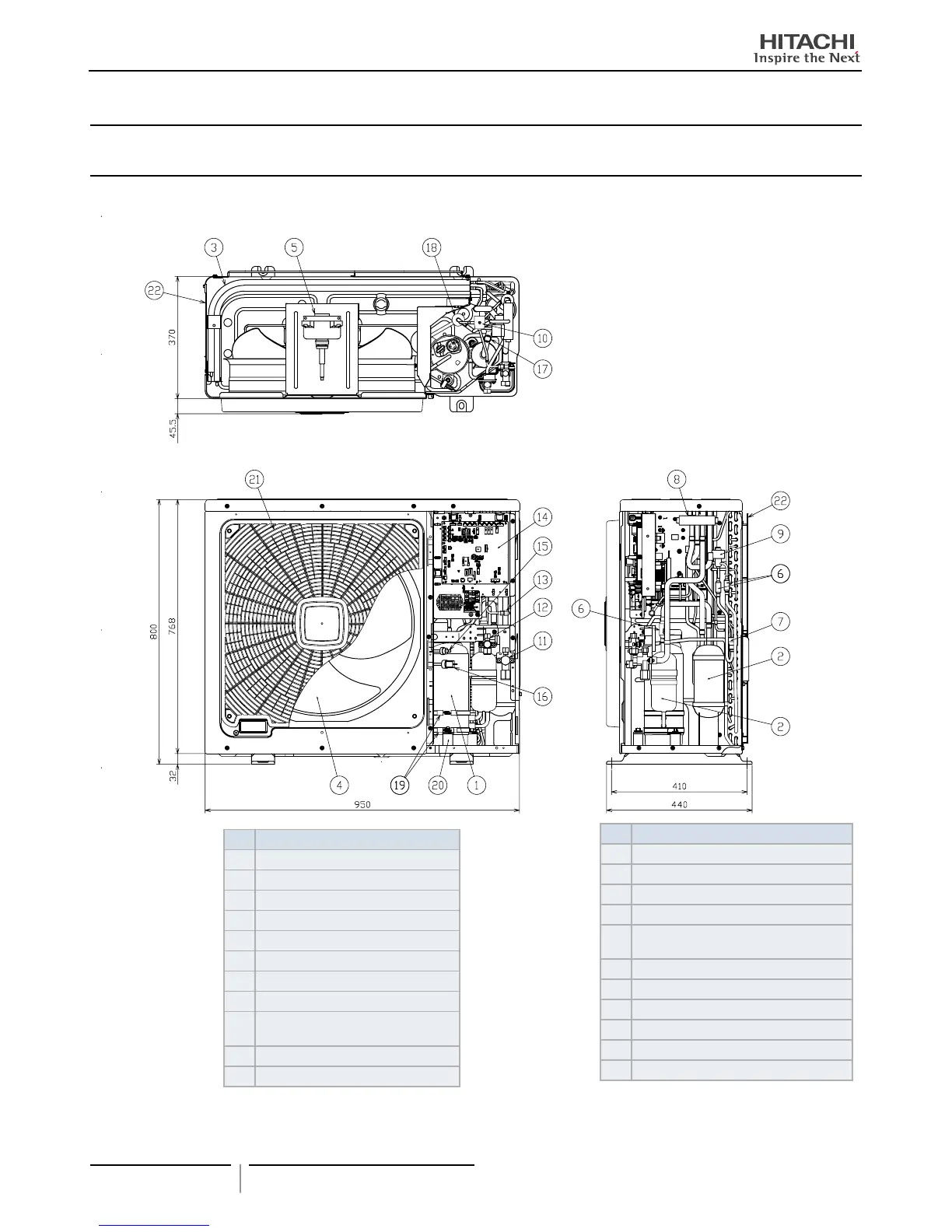

10.1 Example of RAS-3HVNP1E / RAS-4H(V)RNS3E
No. Part Name
1 Compressor
2 Accumulator
3 Heat exchanger
4 Propeller fan
5 Fan motor
6 Strainer
7 Distributor
8 Reversing valve
9
Micro-computer control expansion
valve
10 Solenoid valve for hot gas
11 Stop valve for gas line
No. Part Name
12 Stop valve for liquid line
13 Check Joint
14 Electrical box
15 High pressure switch for protection
16
Sensor for refrigerant pressure (RAS-
3HVNP1E only)
17 Pressure switch for control
18 Silencer
19 Crankcase heater
20 Vibration absorbing rubber (3pcs.)
21 Air outlet
22 Air inlet
7T143458
